GE Multilin 469-P1-HI-A20-T Motor Management Relay 469 in stock

GE Multilin 469-P1-HI-A20-T Motor Management Relay 469 in stock

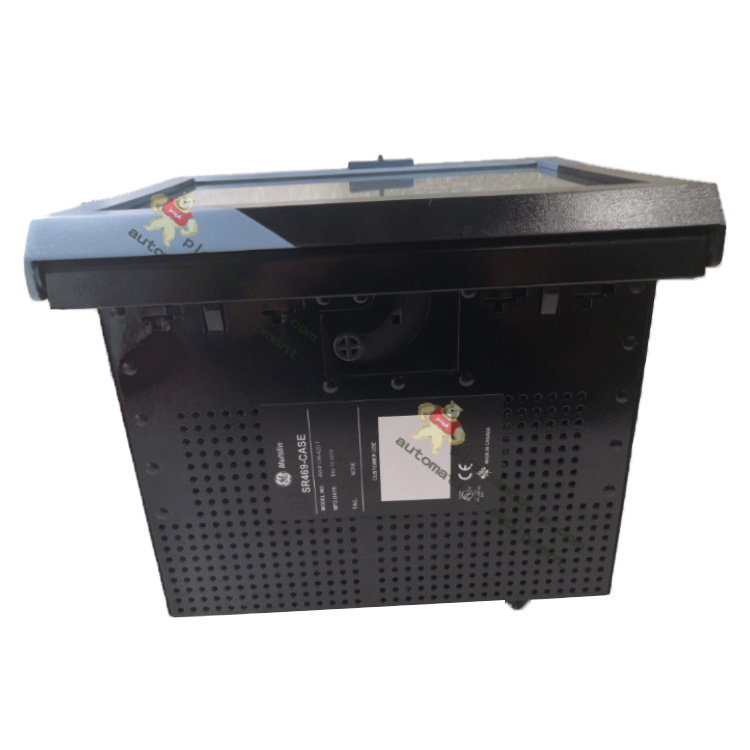

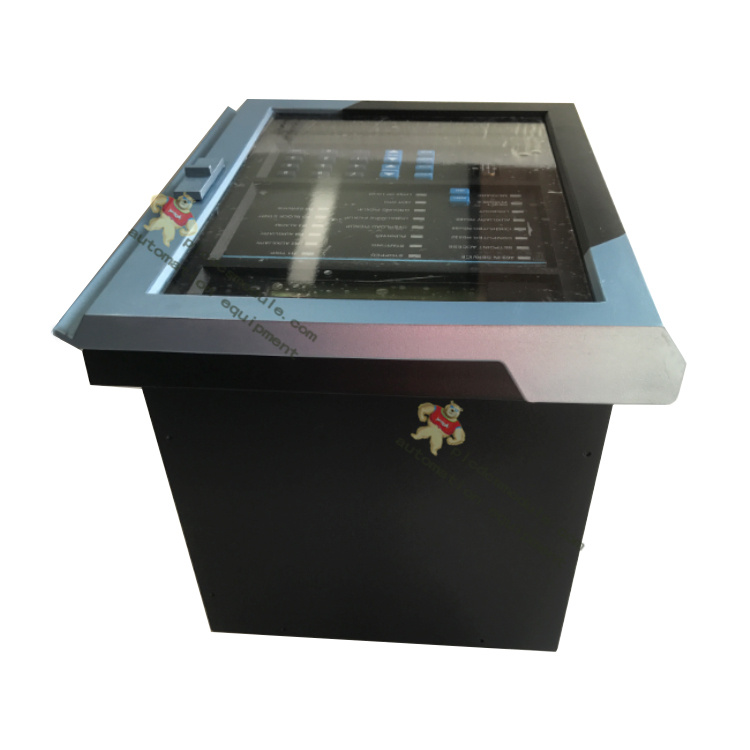

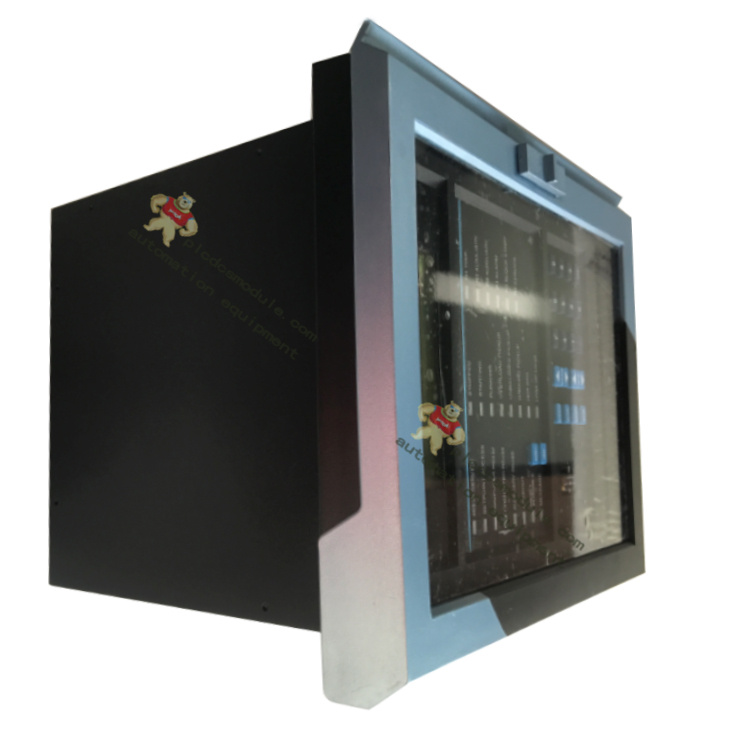

The GE 469-P5-HI-A20-T is a motor management relay produced by GE Digital Energy. It is part of the 469 Motor Management Relay family. This relay is designed for monitoring, controlling, and safeguarding medium and large motors. It has several features and options, including an enhanced display and an ethernet port.

Here are some key details about the GE 469-P5-HI-A20-T relay:

It is a 5A Phase secondary relay.

It operates with a voltage range of 90-300VDC and 70-265VAC.

It has an enhanced display with a wider liquid crystal display and a streamlined keypad layout.

It includes an ethernet port on the back of the relay for communication and remote access.

The "T" in the part number indicates the addition of the optional ethernet enhancement.

The relay can be configured using the EnerVista 469 setup software, which allows for setting setpoints and exporting system data for analysis.

The 469-P5-HI-A20-E is another version of the 469 Motor Management Relay within the GE Multilin 469 series.

The 469 series relays are capable of monitoring, controlling, and safeguarding medium and large motors.

They have metering functions to track system variables such as voltage, demand, and frequency.

The relays can be connected to a computer running the EnerVista 469 software program through the RS232 and RS485 ports.

Motor protection features include torque protection, overtemperature protection, stator differential protection, and undervoltage & overvoltage protection.

The relays have data logging capabilities to measure and trend parameters such as motor load, power factor, torque, and peak apparent power.
