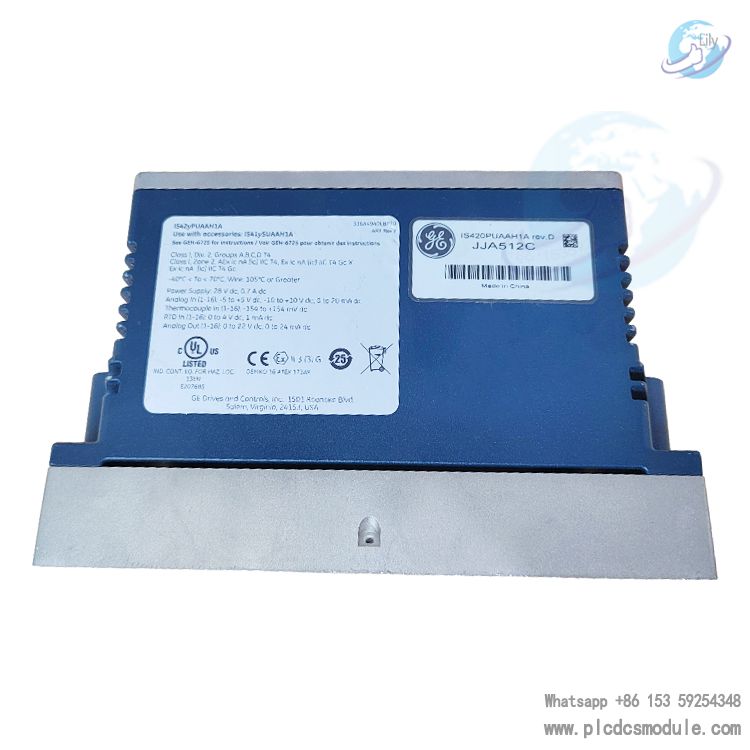

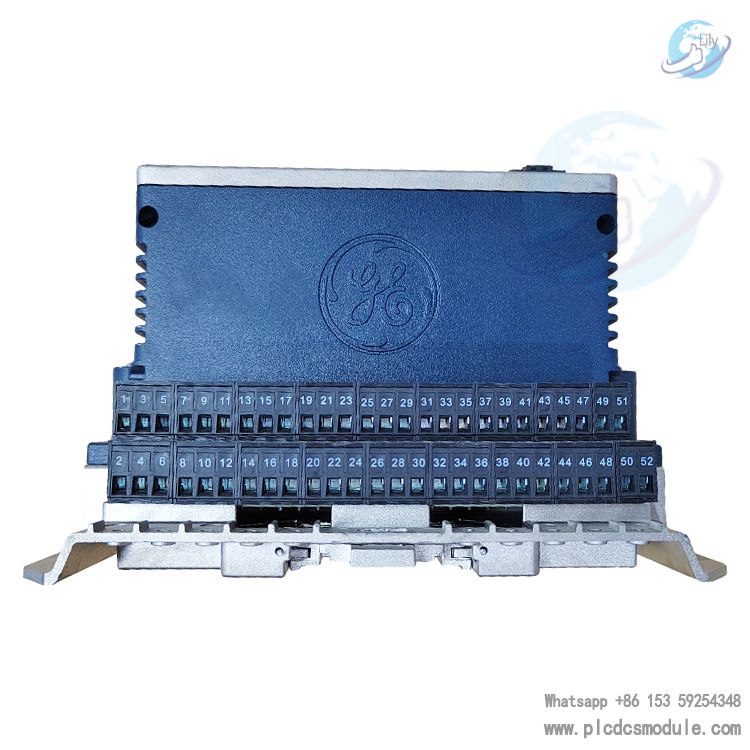

GE IS420PUAAH1A Mark VIe/Mark VIeS General Purpose Input/Output Modules.
The IS420PUAAH1A module is a Universal Input-Output Module designed by General Electric for the Mark VIe series. This model has sixteen configurable channels. The IS420PUAAH1A module was designed to be used with ControlST V 7.02.00C applications or later.
The IS420PUAAH1A is a Universal Input/Output Module from General Electric. It is designed for use within distributed control systems and BOP (balance of power) control systems. Typically, it is used within the Mark VIe control system and is similar to the YUAA board used within a Mark VIeS system. These systems were the most advanced and latest released Speedtronic systems from GE for the management of gas and steam turbine systems. (WESDAC D20M++、IS220PAICH1A)
Features
It is compatible with ControlST versions 7.02.00C and later.
The PUAA enables users to use fewer panels and have a smaller system footprint by providing black sections that can be independently wired, enabling channel-by-channel commissioning. The module has sixteen analog Simplex channels.
The frame rate is 10ms. Auto-reconfiguration is possible. The unit can be hot-swapped for a replacement. It is intended to operate in temperatures ranging from -40 to 158 degrees Fahrenheit with relative humidity ranging from 5% to 95%. Within the specified temperature range, the normal scan time is 5 ms and the measurement accuracy is better than 0.1%.
Supported I/O Types
Thermocouple
RTD
4-20 mA current input with HART option
5 V or 10 V input
0-20 mA current output with HART option
Digital inputs and outputs
Pulse accumulators
FREQUENTLY ASKED QUESTIONS
What is IS420PUAAH1A?
It is an universal I/O pack designed and developed by GE.
What is the specified temperature range for the module?
The module is intended to operate in temperatures ranging from -40 to 158 degrees Fahrenheit with relative humidity ranging from 5% to 95%.
What is the normal scan time within the specified temperature range?
Within the specified temperature range, the normal scan time is 5 ms.
What is the measurement accuracy within the specified temperature range?
Within the specified temperature range, the measurement accuracy is better than 0.1%.
