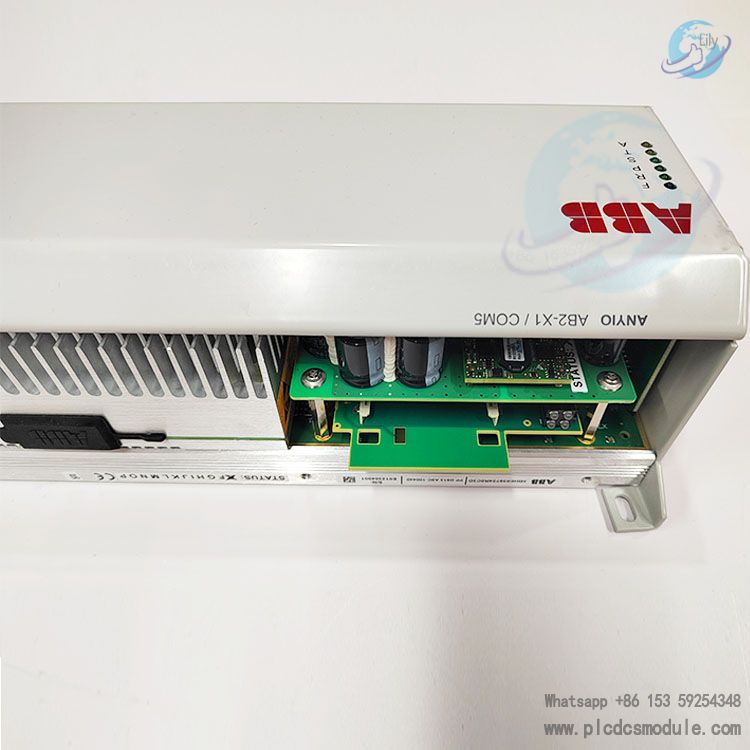

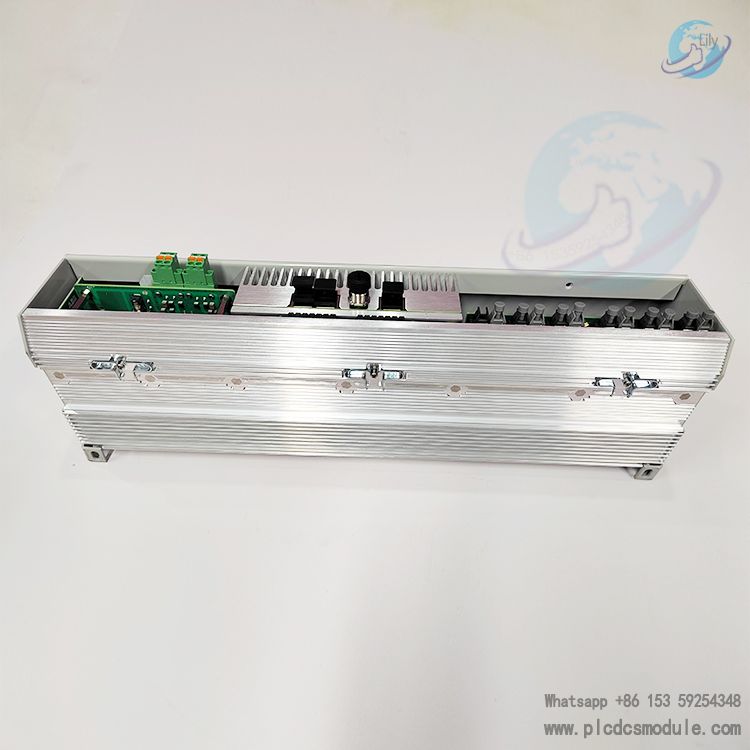

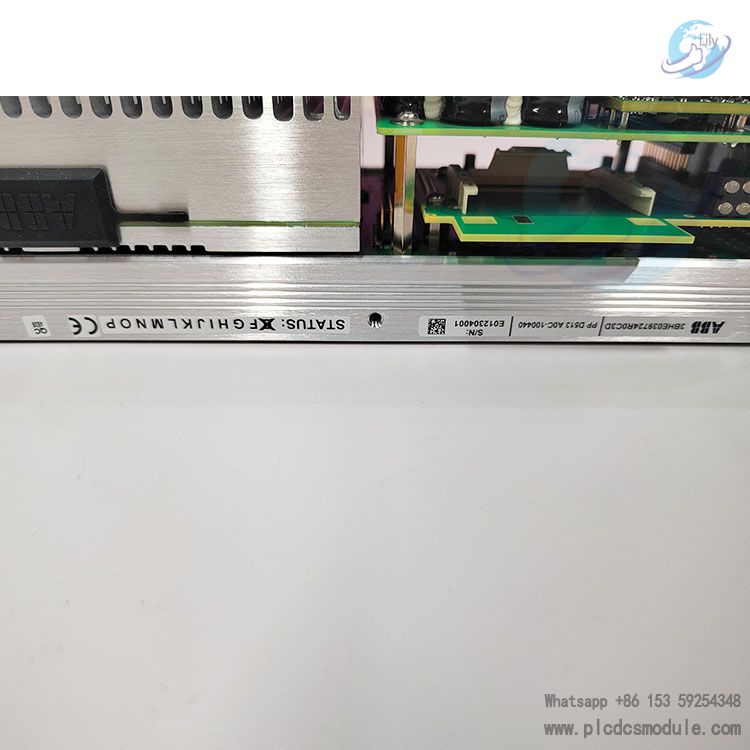

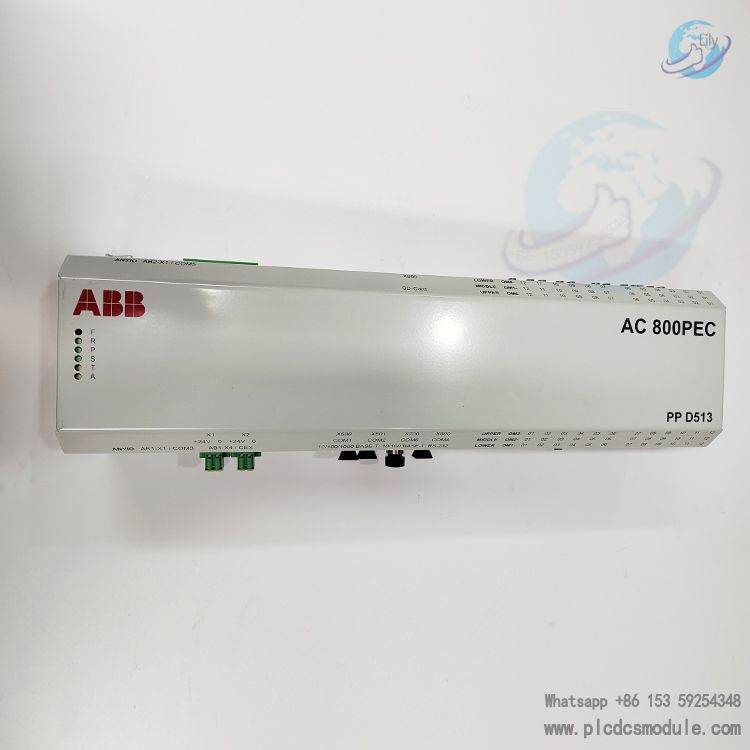

PPD513AOC-100440 3BHE039724R0C3D is one of the excitation controller products in the ABB AC 800PEC high performance process control system. This controller, part of the ABB ControlIT product line, provides an efficient, reliable and flexible control solution for a wide range of industrial applications, especially power electronics, wind turbines, microturbines, light rail propulsion, voltage restorers and drives.
Here's a detailed breakdown of its key features and capabilities:
High-Speed Control Capabilities
Fast Analog and Digital I/Os: The AC800PEC is equipped with very fast analog and digital process I/Os, boasting a typical cycle time of 25 µs. This exceptional speed is crucial for demanding power electronics applications where both speed and precision are paramount.
Versatility Across Different Processes
Handling Both High-Speed and Slow Processes: Its versatility extends to managing a variety of processes, from the rapid control needed in power electronics to the slower, more steady-state control required in cooling circuits and monitoring systems.
Integration
Control Builder M and MATLAB/Simulink: The controller is configured and programmed using Control Builder M, ABB’s established programming tool, and MATLAB®/Simulink® with Real-Time Workshop®. This combination facilitates the development of complex control algorithms and the integration of the controller into larger automation projects.
Modular Design
Flexible Configuration: The AC 800PEC features a modular design, supporting up to 36 bi-directional fiber-optic PowerLinks for connecting I/O modules. This modularity allows for flexible configuration according to the specific I/O requirements of the application.
Connectivity

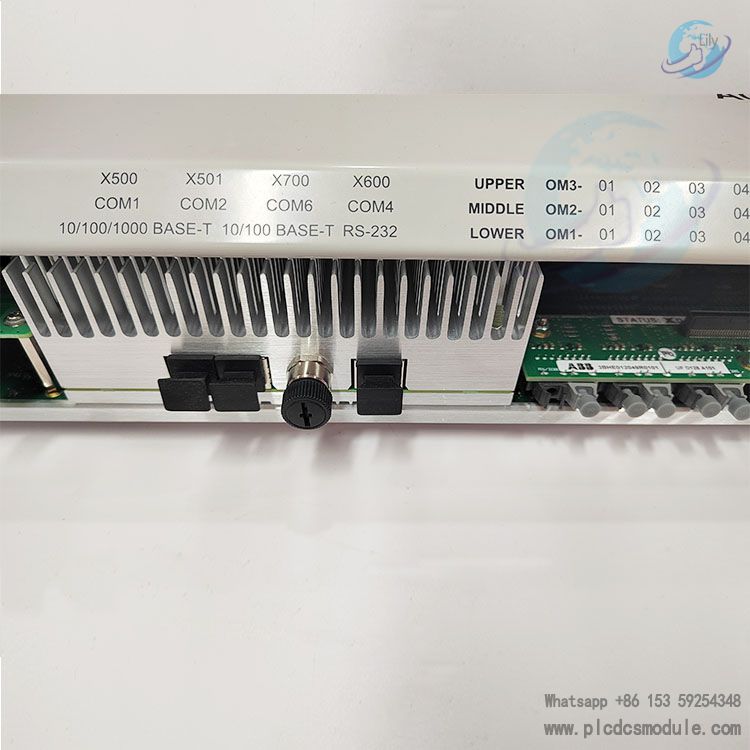

Extensive Connectivity Options: The controller offers extensive connectivity options, including two Ethernet ports, RS-232 / RS-422 serial ports, and on-board AnyIO ports for various fieldbus types. This ensures seamless integration with other control devices and systems.
Software and Tools
Fully Integrated into ABB’s Control IT Software Environment: The AC 800PEC is fully integrated into ABB’s Control IT software environment, providing a comprehensive suite of engineering tools for all phases of automation projects, from engineering and installation to operation and maintenance.
Additional Features
Interfaces with ABB's I/O Systems and Communication Modules: The AC 800PEC interfaces with ABB's I/O systems via the optical S800 ModuleBus and with ABB's communication modules via Communication Expansion Bus (CEX). It also supports third-party Anybus-S fieldbus modules.
User-Friendly Supervision: User-friendly supervision is possible using Simulink external mode, enhancing the usability and accessibility of the controller for operators and engineers.
The AC800PEC excitation controller is a testament to ABB's commitment to providing advanced control solutions for power electronics applications. Its combination of high-speed control capabilities, versatility, and integration with ABB's comprehensive software environment makes it an ideal choice for demanding industrial applications.
ABB PPD513AOC-100440 | 3BHE039724R0C3D | AC800PEC | excitation controller
