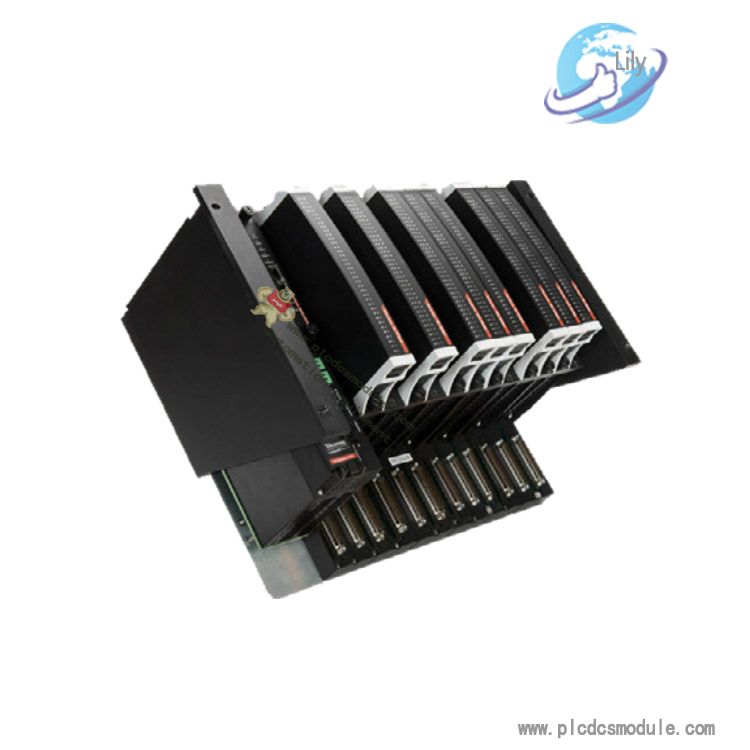

Analogue Input Interface Terminal Boards from Triconex - Tricon CX Safety Systems.The TRICON-CX interface solution, AI card reference numbers 3722X and 3723X (32 channels) has IS safety analogue inputs for safety applications requiring SIL 3 level of safety in safety related systems in high risk industries. The solution consists of single/dual channel IS safe isolators suitable for installation in safe or hazardous zones (Zone 2/DIV.2) as well as Zone 0/Div.1 inputs.
Each isolator is mounted on the termination board TBE-D5016-TRI-011 (16 slots), 1XTBE for dual-channel modules and 2XTBE for single-channel modules, and the connection to the TRICON-CX is realised via the system cable ref. 4X00189-5xx. For analogue inputs, a 4-20 mA fluctuation will prove the presence of a line, values below 4 mA or above 20 mA indicate a fault. IS isolators can transparently reflect currents up to 26 mA. values below 3.8 mA or above 21 mA for Namur-compatible transmitters indicate the presence of certain specific faults. Fault values are read by the TRICON-CX AI card.
The integration capabilities of Tricon CX provide freedom of choice when connecting to your distributed control system (DCS). Integrated, interfaced, or separate, all are available allowing you to select the “best of the best” without risk.
