woodward 505 Governor 8200-1302  digital speed controller

The Woodward 505D Digital Governor Turbine control product 8200-1302 is part of the Woodward 505 Digital Governor series designed for turbine control. The 8200-1302 is an integrated graphical front panel HMI(Human Machine Interface) featuring an operator control panel as a graphical interface and keyboard for regulation and communication with the turbine.

Key features of Woodward 505D 8200-1302 include:

Automatic start sequence hot start and cold start, with temperature input option

Trip indication for Trip and Alarm events with associated RTC timestamps

Three normal operating modes, including configuration mode, operation mode and calibration mode

Two redundant speed inputs that can accept magnetic pickup units, eddy current probes, or proximity probes

8 analog inputs that can be configured for any of 27 functions

20 contact inputs, the first four default to off, raise speed setpoints, reset and lower speed setpoints

Two 4-20 mA control outputs and eight Form-C relay contact outputs.

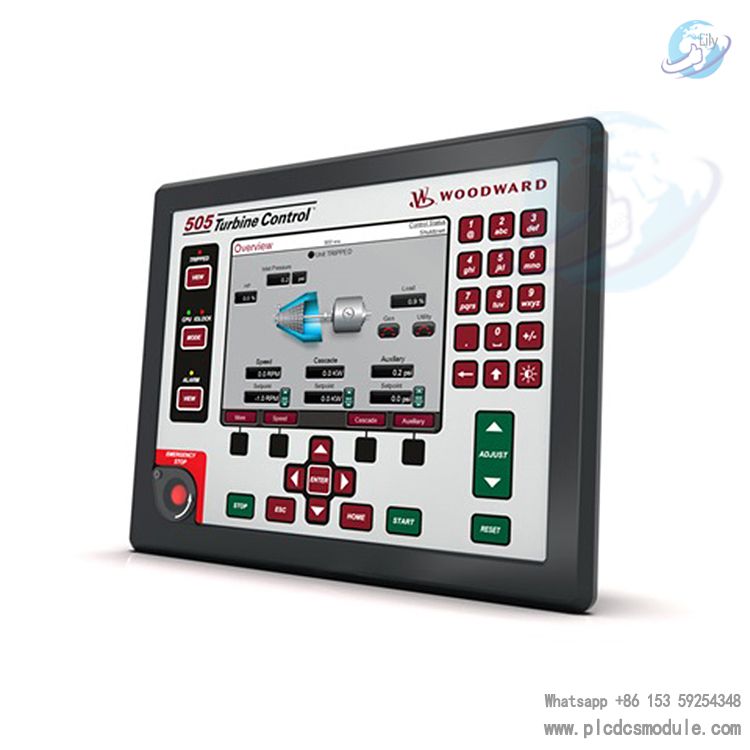

The 8200-1302 front panel includes the Emergency trip key, Backspace/Delete key, shift key, view key, Mode key, ESC key, and home key. It also has navigation crossover keys, soft key commands, and four leds to indicate the status of controls and hardware.

The 8200-1302 is Marine /ATEX compliant and operates at low voltage direct current (LVDC) with an input voltage range of 18-36VDC and an input current of 4.3A. It is manufactured by Woodward plc-module.cn in Fort Collins, Colorado, USA.
