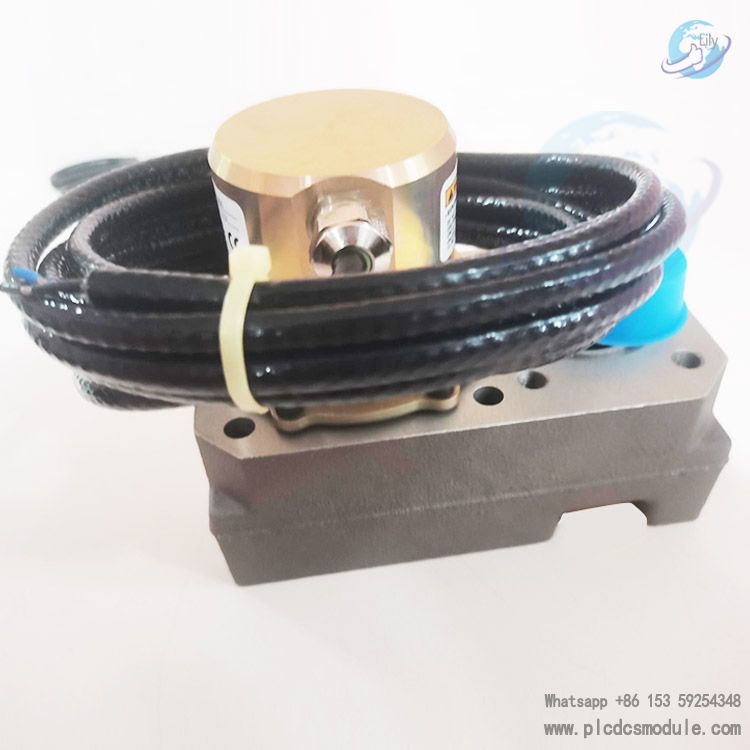

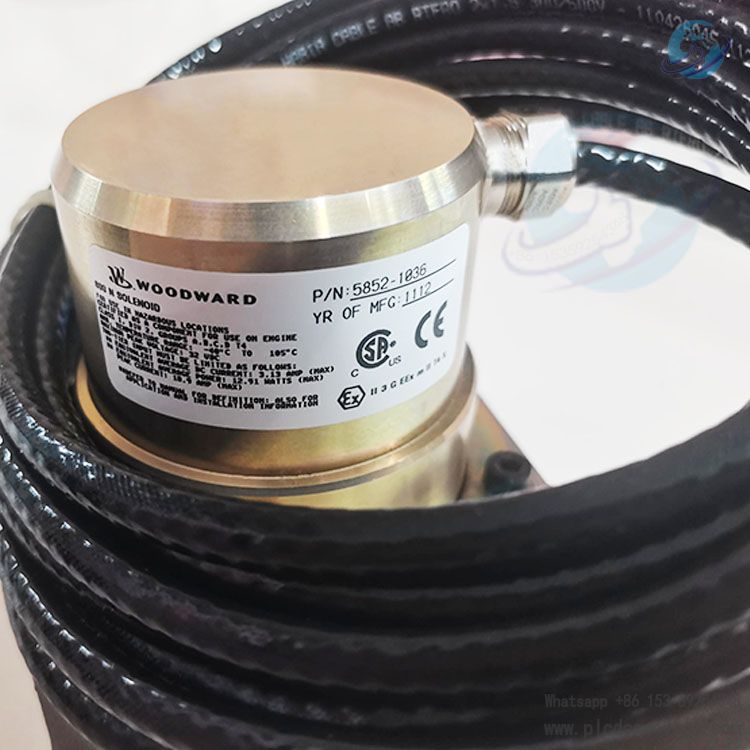

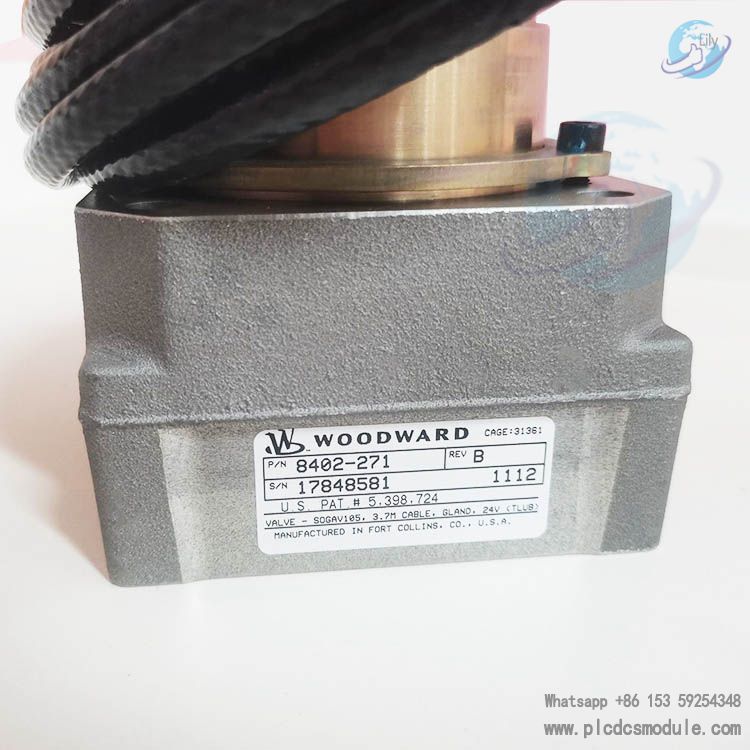

Woodward 8402-271 P/N 5852-1036 Electromagnetic intake valve.The Woodward 8402-271 5852-1036 electromagnetic intake valve is an electromagnetic valve product used to control the intake of air. This product is widely applied in fields such as aviation, industrial engines, turbines, and power generation control.
Generally, the working principle of an electromagnetic intake valve is as follows: There is a sealed cavity inside the solenoid valve, with through holes opened at different positions, and each hole leads to a different pipeline. In the middle of the cavity is a valve core, and there are two electromagnets on both sides of it. When the coil is energized, an electromagnetic force is generated, causing the valve core to be attracted by overcoming the spring force or its own gravitational force, etc. Thus, the position of the valve core is changed, enabling the opening or closing of different oil discharge holes or air intake channels, and further controlling the air intake volume. The oil inlet hole or the air intake hole is usually normally open. By controlling the on-off of the current in the electromagnet, the movement of the valve core can be controlled, so as to control the on-off and flow rate of the mechanical movement or the air intake.
Data Sheet:
SOGAV™ 43 and SOGAV 105 Solenoid Operated Gas Admission Valve.pdf
Features
High reliability: Based on Woodward's brand reputation and manufacturing experience, this valve is made of high - quality materials and advanced manufacturing processes. This ensures stable and reliable operation under various working conditions, reduces the probability of failures, and improves the overall operating efficiency of the equipment.
Precise control: It can achieve precise control of the intake air volume to meet the requirements of different working conditions. For example, under different engine speeds and loads, precisely adjusting the intake air volume helps optimize the combustion process, improve engine performance and fuel economy, and reduce emissions at the same time.
Fast response: It has a short response time and can quickly open or close the valve according to changes in the control signal, timely adjust the intake air volume to meet the dynamic change requirements of the system.
Good compatibility: It is designed to be compatible with a variety of different devices or systems, facilitating installation and use in different application scenarios and reducing the design and installation costs for users.
The 5852 - 1036 electromagnetic intake valve is applied in the following fields:
Aviation field: It is used for the intake control of aircraft engines, helping the engines maintain good performance under different flight conditions.
Industrial engines: Such as large - scale diesel engines and gas engines. By precisely controlling the intake air volume, it can optimize the combustion process, improve the efficiency and reliability of the engines, and reduce the operating costs.
Turbine equipment: In steam turbines, gas turbines and other equipment, it controls the intake air to ensure the stable operation and high - efficiency output of the turbines.
Power generation field: Whether in traditional thermal power generation or other types of power generation systems, in the links where precise intake control is required, this electromagnetic intake valve may be used to ensure the stable operation of power generation equipment and power generation efficiency.
