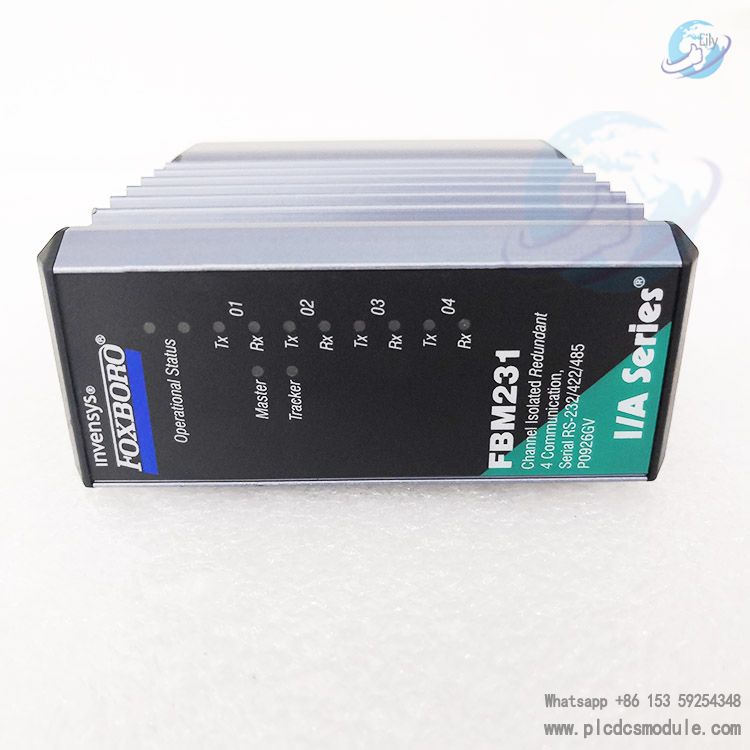

The Foxboro FBM231 P0926GV is a redundant Field Device System Integrator (FDSI) module designed for the Foxboro I/A Series Distributed Control Systems (DCS).The main feature of the FBM231 P0926GV is that it has 4 serial ports, supports communication standards such as RS-232, RS-422 and RS-485, and has a redundancy function. In terms of functions and application scenarios, it is mainly used for serial port communication and device integration in field control systems, and improves the reliability and stability of the system through the redundant design.
data sheet：
Foxboro FBM231 P0926GV Redundant Field Device System Integrator (FDSI) modules.pdf
FEATURES
The key features of the FBM231 P0926GV are:
Redundant FBM231 modules communicate with dual-ported devices
Four ports - each can be individually configured in software for RS-232, RS-422 or RS-485
Supports RS-232, RS-422 or RS-485 communication interface standards
I/O software driver is downloadable from a library of available protocols.
Up to 2000 DCI block connections
Communicates with up to 64 RS-485 or up to 4 direct connect RS-232 or RS-422 devices
Integrates field device data into a Foxboro control database
Field mounted
Class G3 (harsh) environments.
Module Fieldbus Communication
Communicates with its associated FCM100Et,
FCM100E, FCP270, or FCP280 via the redundant 2
Mbps module Fieldbus.
FBM231 Power Requirements
INPUT VOLTAGE RANGE (REDUNDANT)
24 V dc +5%, -10%
CONSUMPTION
7 W (maximum) each module
HEAT DISSIPATION
7 W (maximum) each module
