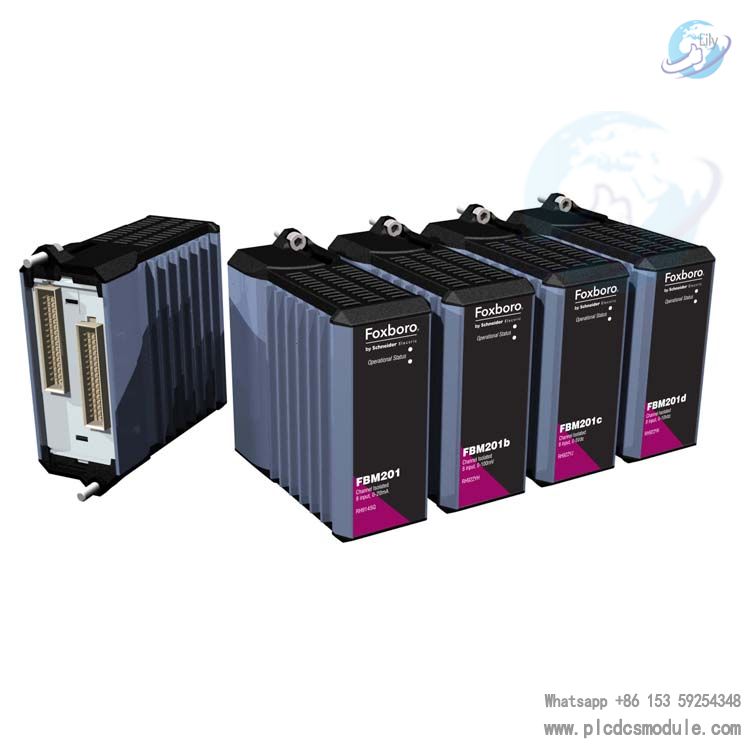

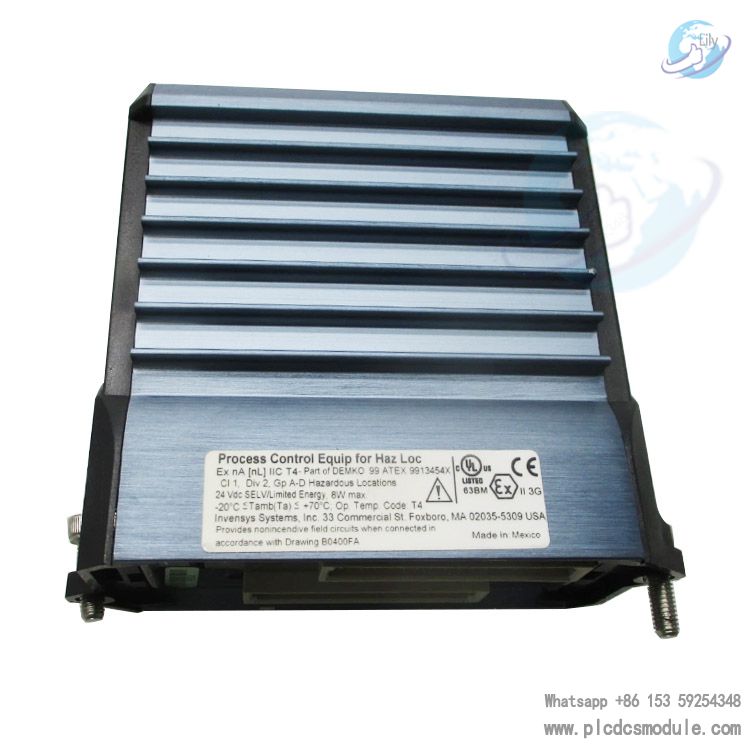

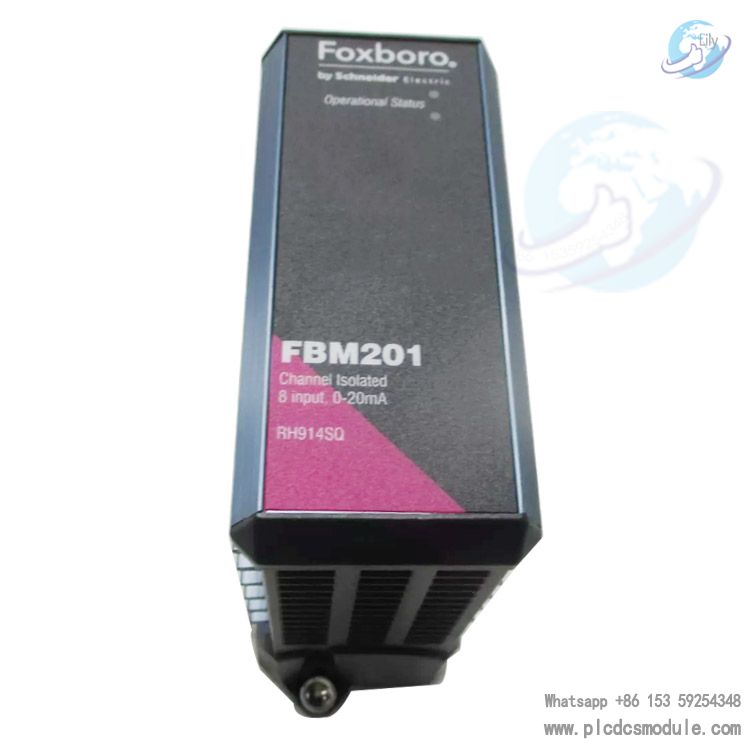

FOXBORO FBM201 RH914SQ Analog Input module.Each FBM201/b/c/d Analog Input Module contains eight analog input channels, each channel accepting a 2-wire, dc input from an analog sensor such as a 4 to 20 mA or 0 to 5V transmitter, or a self-powered 20 mA source.The modules perform the signal conversion required to interface the electrical input signals from the field sensors to the optionally redundant fieldbus.
DATA SHEET:
FOXBORO FBM201 RH914SQ Analog Input module.pdf
FEATURES
Key features of the FBM201/b/c/d modules are:
Eight channels for input of analog sensor signals:
0 to 20 mA dc – FBM201
0 to 100 mV dc – FBM201b
0 to 5 V dc – FBM201c
0 to 10 V dc – FBM201d
Each analog input channel is galvanically isolated from other channels and ground
Rugged design suitable for enclosure in Class G3(harsh) environments
Execution of an analog input application program that provides conversion time and configurable options for integration time and Rate of Change Limits
High accuracy achieved by sigma-delta data conversions for each channel
Termination Assemblies (TAs) for locally or remotely connecting field wiring to the FBM201/b/c/d modules
Termination Assemblies for per channel internally and/or externally loop powered transmitters.
Weight
FBM201/b/c/d: 284 g (10 oz) approximate
TERMINATION ASSEMBLY
Compression
181 g (0.40 lb) approximate
Ring Lug
249 g (0.55 lb) approximate
Dimensions – FBM201/b/c/d
HEIGHT
102 mm (4 in)
114 mm (4.5 in) with mounting lugs
WIDTH
45 mm (1.75 in)
DEPTH
104 mm (4.11 in)
Part Numbers
FBM201
RH914SQ (supersedes P0914SQ)
FBM201b
RH922YH (supersedes P0922YH)
FBM201c
RH922YJ (supersedes P0922YJ)
FBM201d
RH922YK (supersedes P0922YK)
