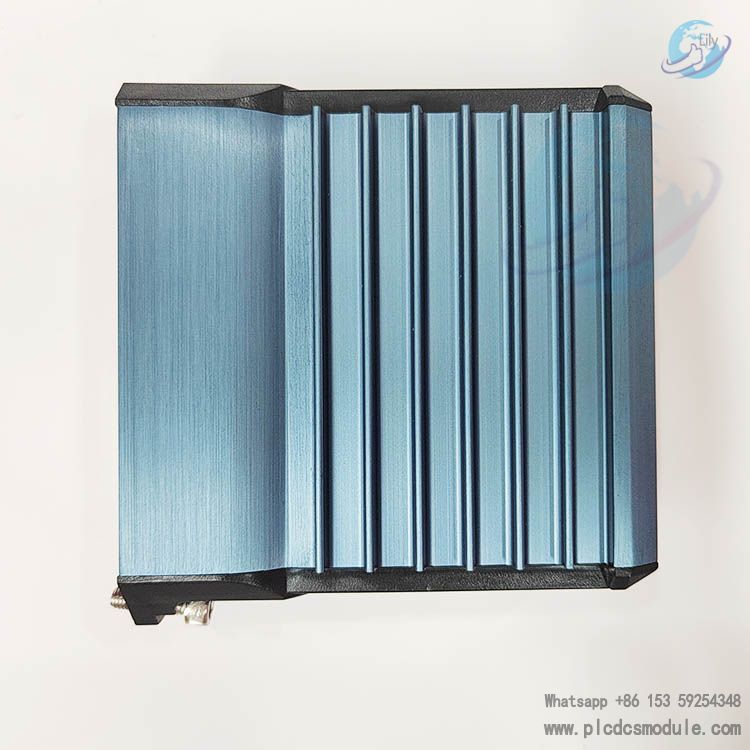

FOXBORO FBM207C P0917GY channel isolated 16 input module.The FBM207/b/c Voltage Monitor/Contact Sense Input Module functions as a 16-channel dc voltage monitor or 16-channel contact sensor. Each channel accepts a 2-wire input from a dc voltage source (FBM207) or pair of contacts or solid state switches (FBM207b/ FBM207c). Associated termination assemblies (TAs) support discrete input signals at voltages of 60 V dc, 120 V ac/125 V dc, or 240 V ac.For voltages higher than 60 V dc, the TAs have additional signal conditioning hardware that provides voltage attenuation and optical isolation.
To learn more about this product click on the file below or download the file:
FOXBORO FBM207C P0917GY channel isolated 16 input module.pdf
The module is available in three distinct types, and each type with its associated TA supports discrete inputs as shown below:
FBM207 Provides voltage monitoring at: –60 V dc –120 V ac/125 V dc –240 V ac Provides switch inputs with: –External 120 V ac/125 V dc –External 240 V ac FBM207b 24 V dc Contact Sense FBM207c 48 V dc Contact Sense

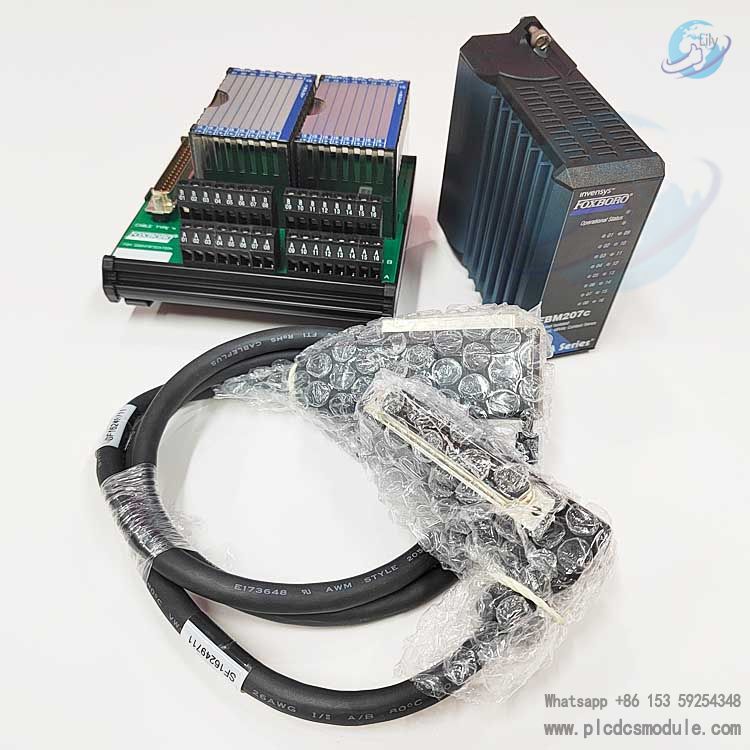

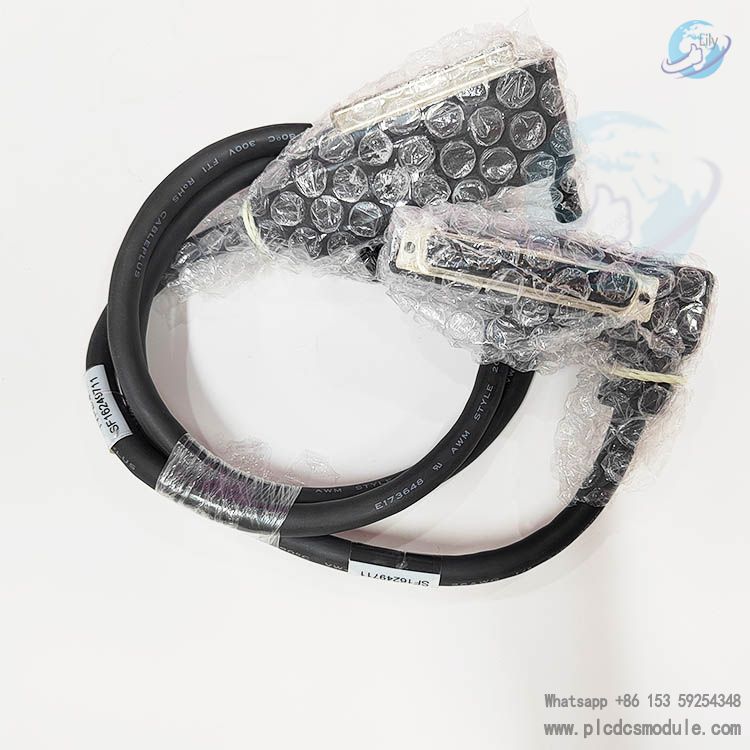

FOXBORO FBM207C P0917GY Channel isolation 16 The input module must be used with the terminal board and cable shown in the following picture:

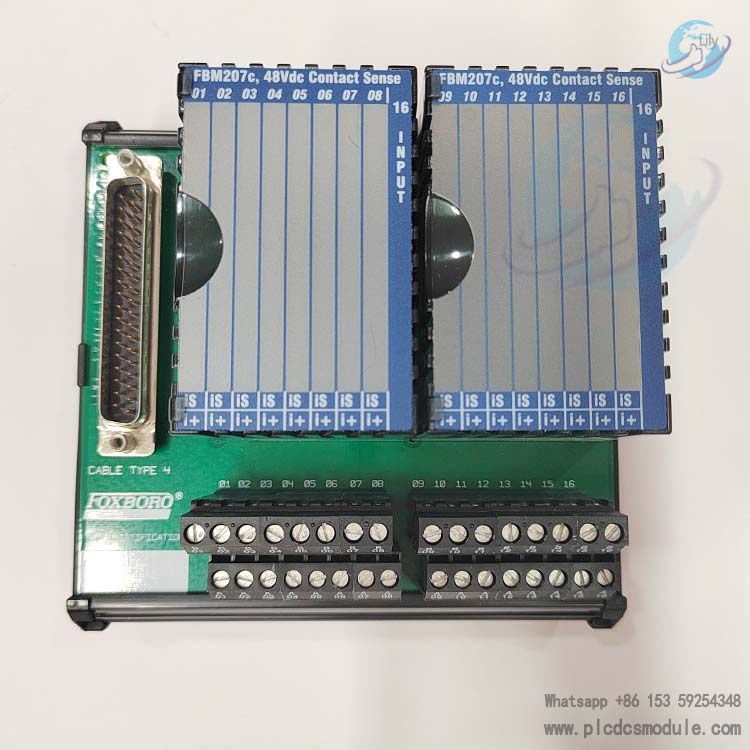

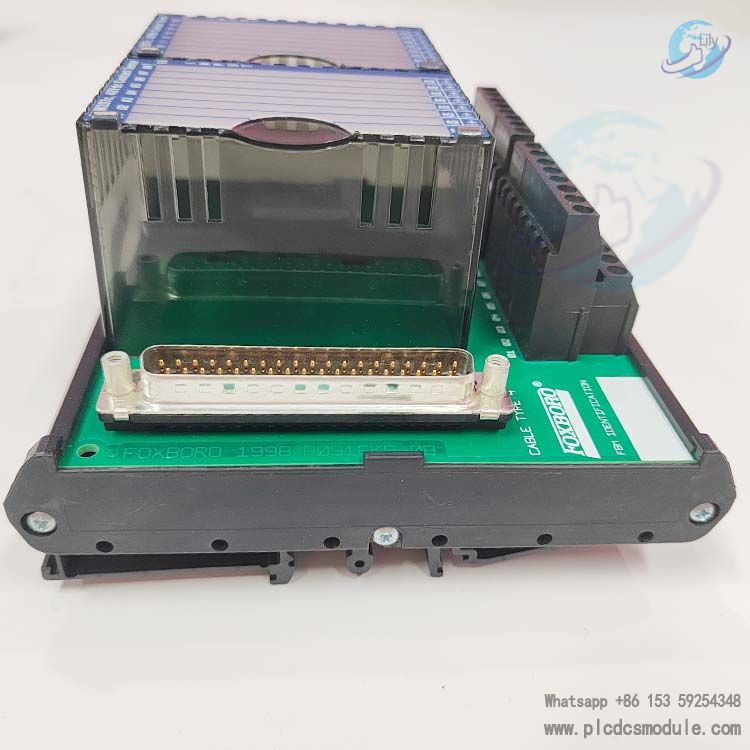

FOXBORO FBM207C terminal block
