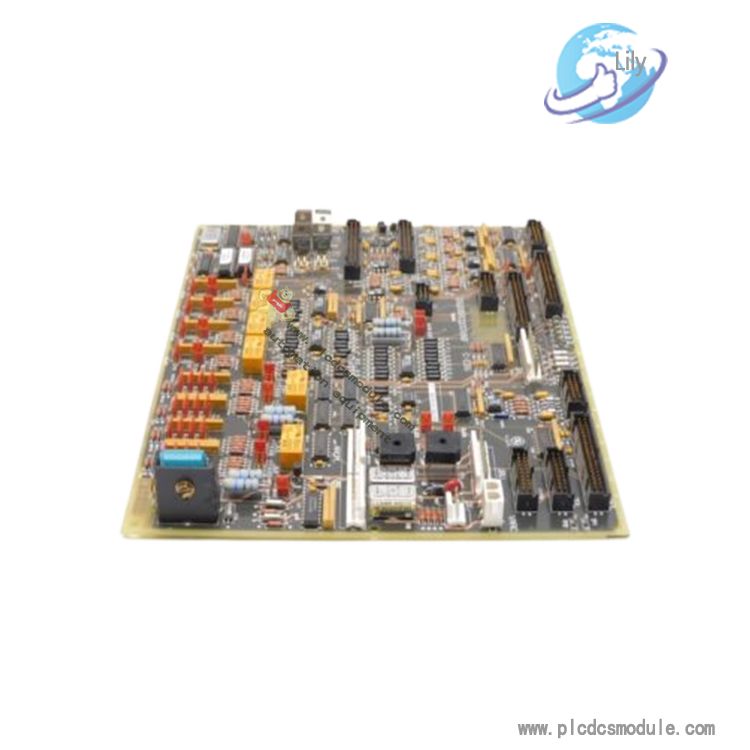

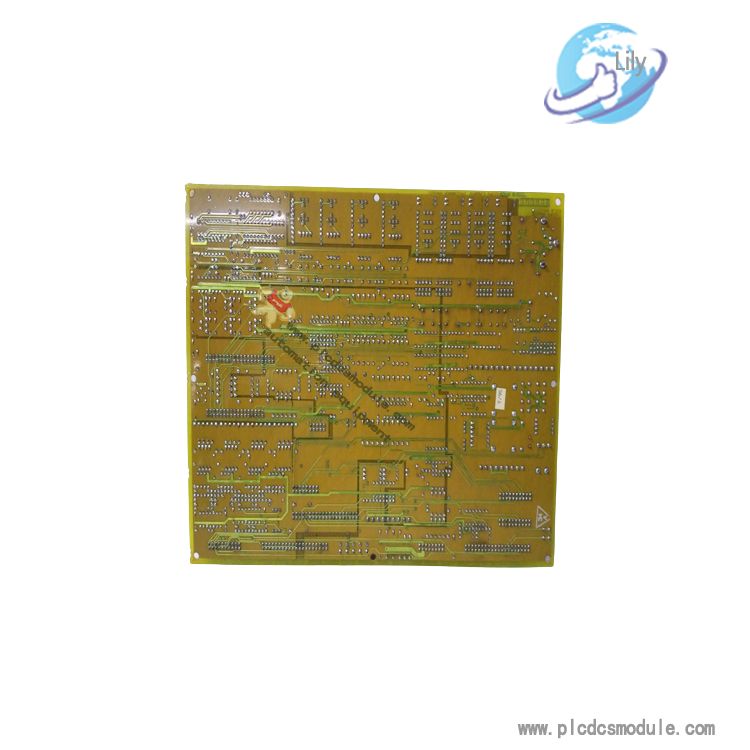

The GE DS200TCQCG1AJD Mark V Overflow Board is a component designed for use within GE's servo drive systems, specifically within the DS200 series. This overflow board serves a critical role in managing the operation of these drives, ensuring smooth and efficient control of motor movements. The board is part of the Mark V version of the DS200 series, indicating it incorporates the latest technological advancements and improvements over previous versions.
The GE RST Overflow Board DS200TCQCG1AHD comes with 24 jumpers and 3 40-pin connectors. It also has three 34-pin connectors and one 16-pin connector. The ID assigned to the 16-pin connector is JC. The IDs assigned to the 40-pin connectors are JFF, JE, and 6PL. 24 jumpers on the GE RST Overflow Board DS200TCQCG1AHD play an important role in the board configuration. The jumpers have two locations where the installer can set the jumpers. Depending on the selection, the board will process the information in a different way. The jumpers are defined as 3-pin jumpers. This means that a jumper can cover either pins 1 and 2 or pins 2 and 3. The jumper establishes electrical contact between the two pins it covers.
