GE IS200TBCIH1BBC Mark VI Board
Part number: IS200TBCIH1BBC
Manufacturer:GE
Product Description:Mark VI Board
THE GE IS200TBCIH1BBC is a contact terminal board used in the Mark VI series by General Electric (GE) for controlling gas and steam turbines in industrial settings.

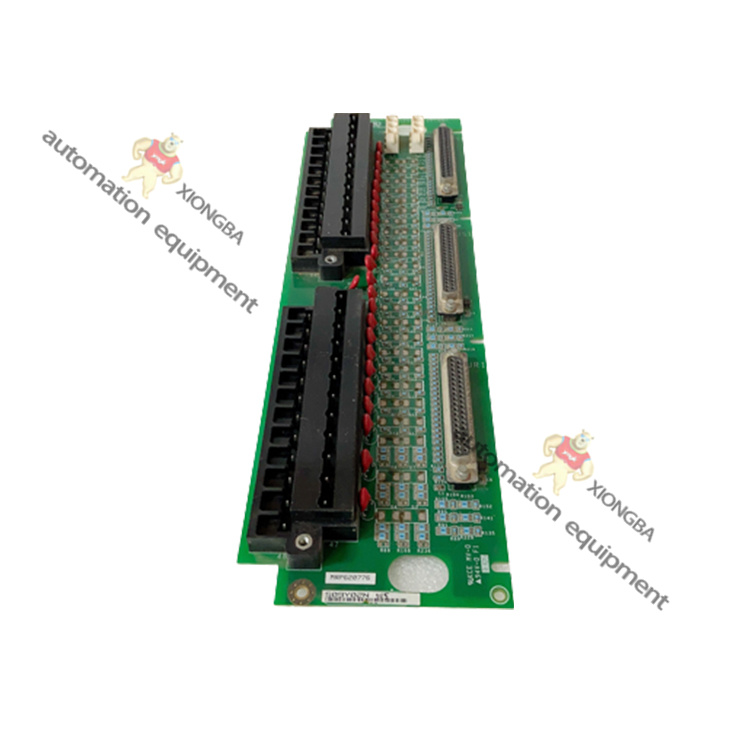

The IS200TBCIH1BBC is a long circuit board with various electronic components.

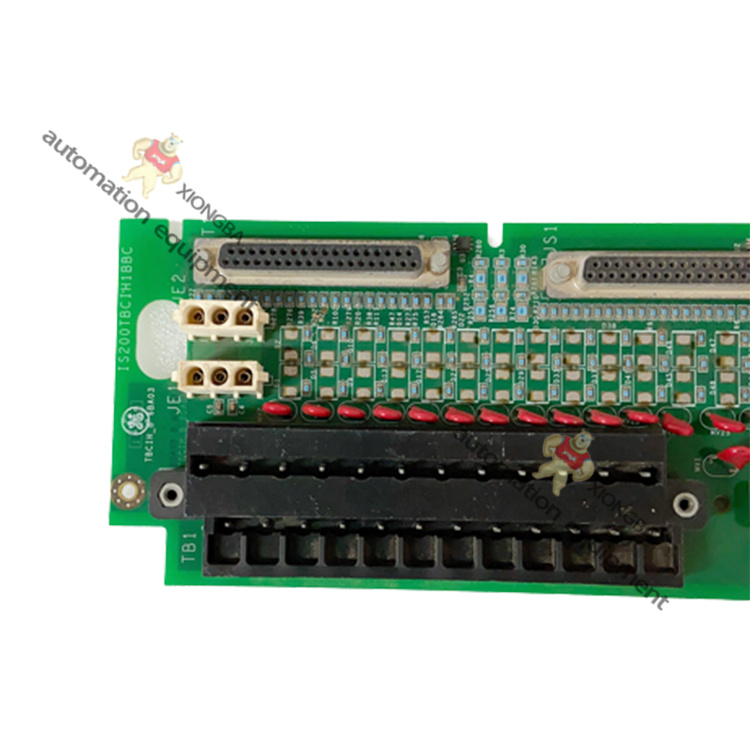

It features two solid black terminal blocks with 48 silver metal terminals (24 in each block).
There are 25 solid red capacitors aligned next to the terminal blocks.
Three silver and black jack connector ports are located on the right edge of the board, each with a small integrated circuit labeled with the letter U.
Two white connectors with three ports each are centered at the top of the board.
A long line of tiny resistors spans the right side of the board.
Functionality:
The IS200TBCIH1BBC is a Mark VI terminal board terminated with external I/O.
It is mostly used with GE Speedtronic Mark VI series, providing high-speed networked I/O for simplex, dual, and triple-redundant systems.
