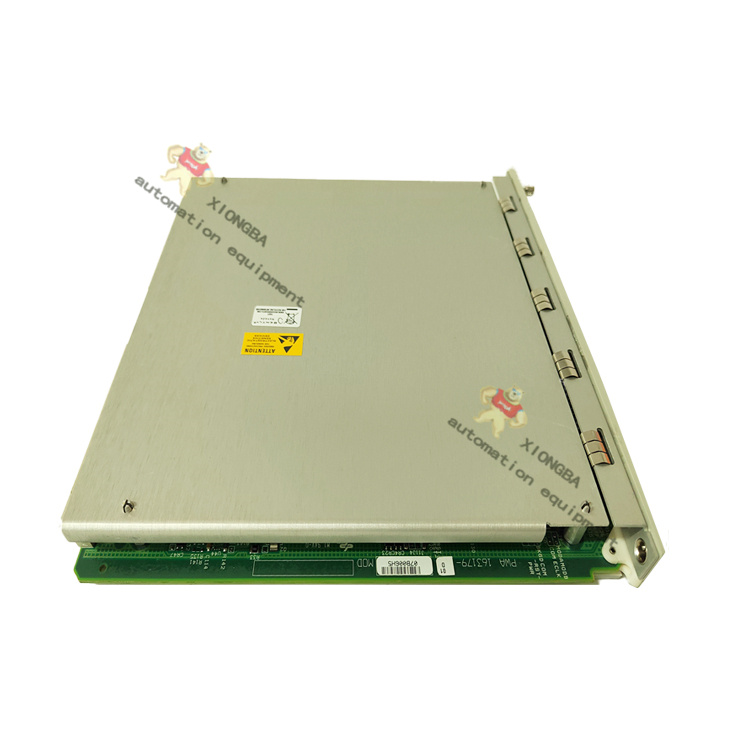

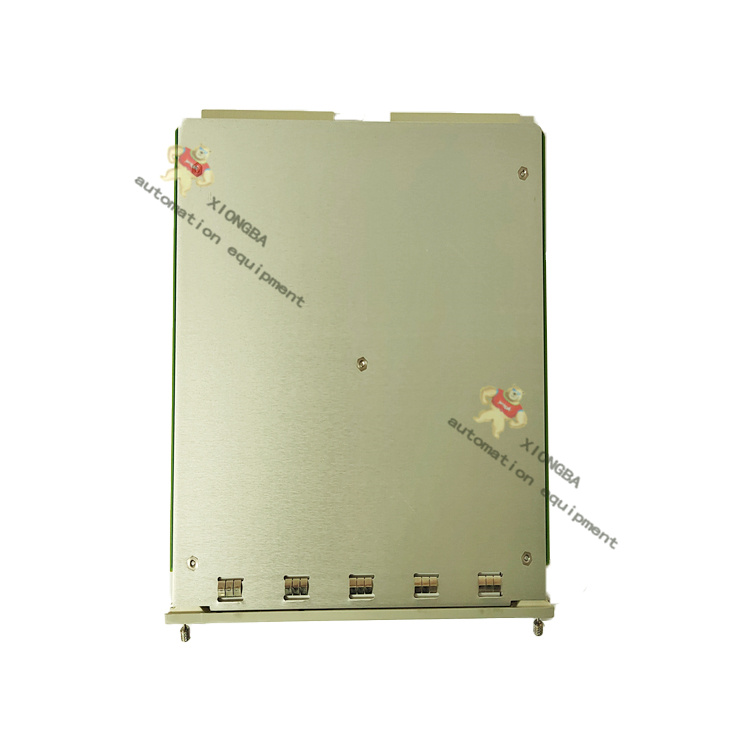

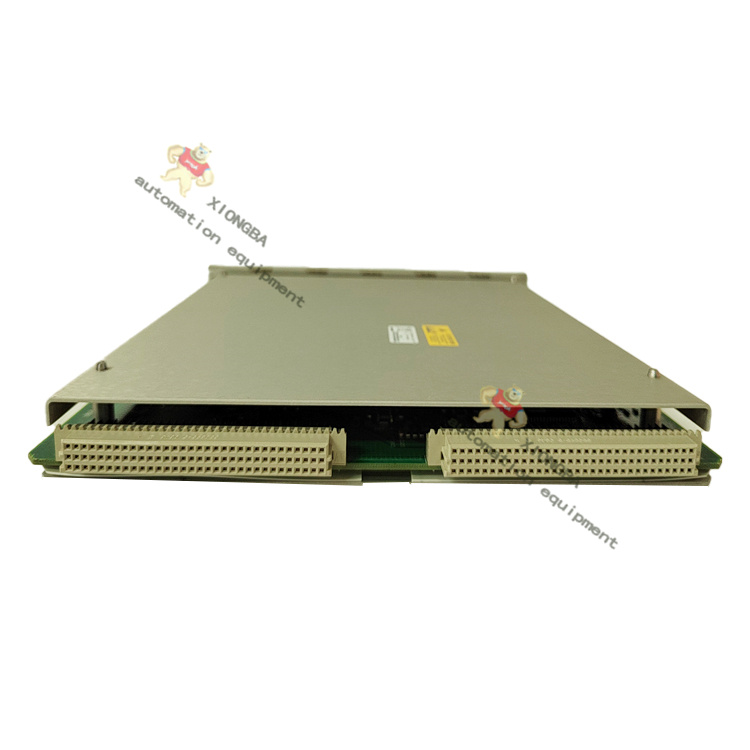

Bently Nevada 3500/60 Temperature Monitor Module 3500/60-05
Part number:3500/60 3500/60-05
Manufacturer:Bently Nevada
Product Description: Temperature Monitor Module
6 channels of temp monitoring
Accepts RTD and TC inputs
User-programmable alarm setpoints
3500 Rack Configuration Software
Greater than 10 MΩ for each lead input
Power consumption: 9 watts
Operating temp: -22 to 150°F (-30 to 65°C)
Bently Nevada 3500/60 and /61 Temperature Monitors
The 3500/60 and 61 modules provide six channels of temperature monitoring
accepts resistance temperature detector (RTD) and thermocouple (TC)
temperature inputs. The modules regulate these inputs and compare
against user-programmable alarm setpoints. 3500/60 and 3500/61 provide
identical functionality except that the 3500/61 provides logger outputs for
six channels, while the 3500/60 does not.
User-programmed modules to perform RTD or TC temperature
measurements using the 3500 frame configuration software. Different I/Omodules are available in RTD/TC non-isolated or TC-isolated versions. User can configure the RTD/TC non-isolated version to accept either TC or RTD, orThe TC isolated version provides 250 Vdc
The TC isolated version provides 250 Vdc inter-channel isolation to prevent external interference.
When used in a triple-mode redundant (TMR) configuration, the temperature
monitors must be installed in groups of three next to each other. When usedin this configuration, the system uses two types of polling to ensure accurate operation and to avoid single points of failure.
The Bently Nevada 3500/60 Temperature Monitors provides six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints.
The user programs the modules to perform either RTD or TC temperature measurements using the 3500 Rack Configuration Software. Different I/O modules are available in RTD/TC non-isolated or TC isolated versions. The user can configure the RTD/TC non-isolated version to accept either TC or RTD, or a mixture of TC and RTD inputs. The TC isolated version provides 250 Vdc of channel-to-channel isolation to protect against external interference.
