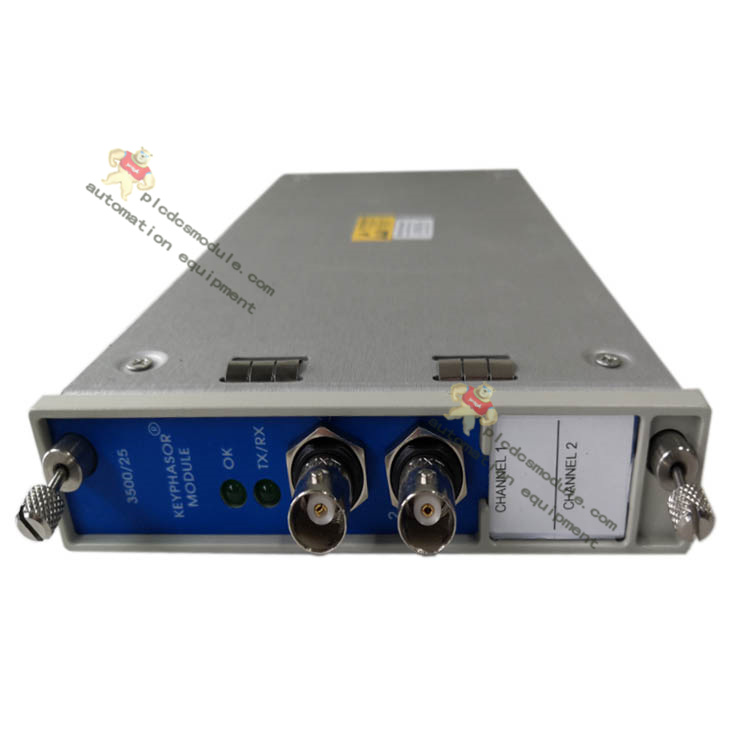

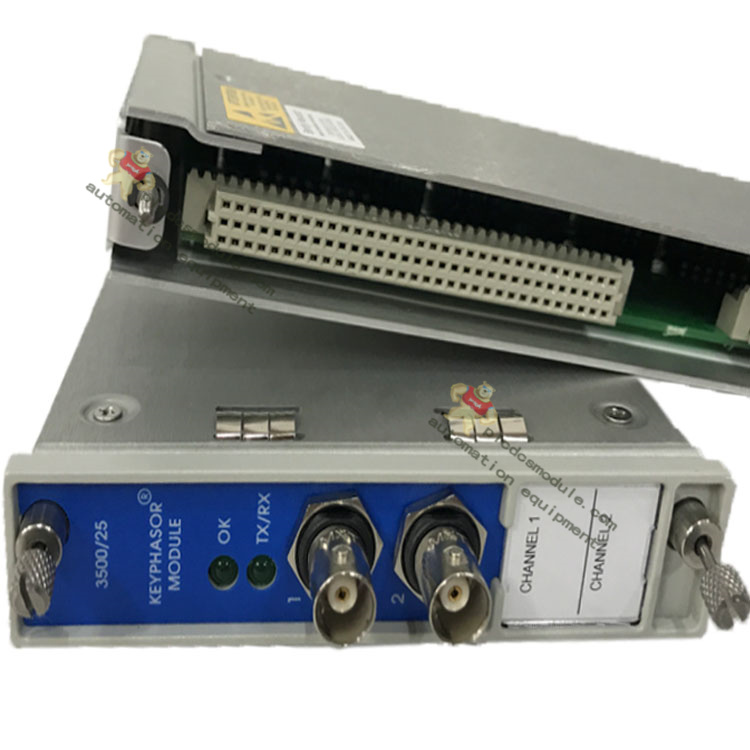

BENTLY NEVADA  3500/25 125792-01 Enhanced Keyphasor Module

Front Card:3500/25

Front card order number：125792-01

Back Card:125800-01

Product Description:Enhanced Keyphasor Module

Worldwide shipping：DHL, UPS, Fedex, and TNT

Contact：Lily

QQ：3005319639

Mobile/WeChat/whatsapp：+86 15359254348

Landline：05922350124

E-mail: plcdcs-module@foxmail.com

126398-01G、149371-01G、149369-01

BENTLY NEVADA  3500/25 125792-01 Enhanced Keyphasor Module For more Bently products, please click here

Features:

Half-height(2) Channels

Input Signals: Proximity Probes or Magnetic Pickups

The GE/ Bently Nevada 3500/25 Series Enhanced Keyphasor Modules are half-height, two-channel modules used to provide Keyphasor signals to the monitor modules in a 3500 rack.

The module receives input signals from proximity probes or magnetic pickups and converts the signals to digital Keyphasor signals that indicate when the Keyphasor mark on the shaft coincides with the Keyphasor transducer.

The 3500 Machinery Protection System can accept up to four Keyphasor signals for normal configuration and up to eight Keyphasor signals in a paired configuration.

Enhanced Keyphasor Module

An enhanced 3500 system module is called the Enhanced Keyphasor Module. While maintaining full downward compatibility in terms of shape, fit, and function with existing Keyphasor modules for usage in legacy systems, it offers increased Keyphasor signal processing capabilities over the prior design. The revised 149369-01 module totally replaces the Keyphasor module, PWA 125792-01.

The 3500 system should use two Keyphasor modules whenever a system Keyphasor input is required for Triple Modular Redundant (TMR) applications. In this setup, the modules operate in parallel to give the other modules in the rack a primary and secondary Keyphasor signal.

If there are no more than four primary Keyphasor input signals, a system with more than four Keyphasor inputs may use a paired arrangement.

Application areas：

The main application industries are: chemical, automotive, thermal power, steel, plastic, wind power

power plant, paper, steel, mine, rubber, water supply, cement, chemical, glass, printing

textile, machinery, plastic, paint, medicine, hospital, food, hotel, scientific research institute, etc.
