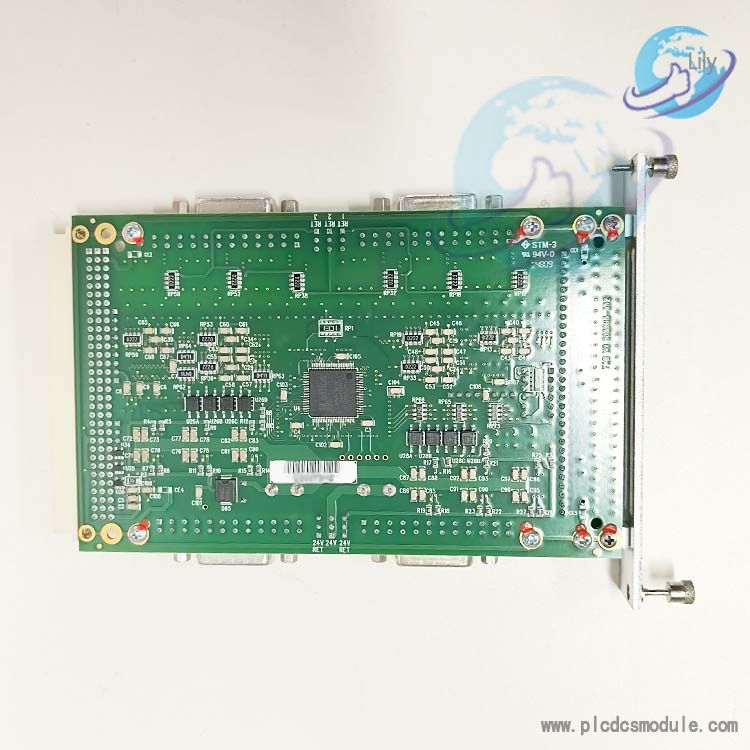

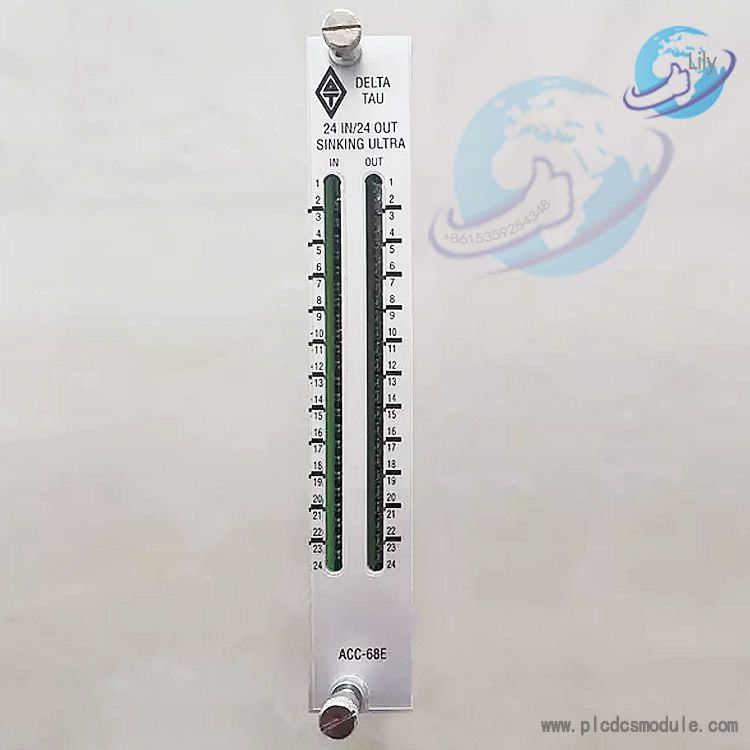

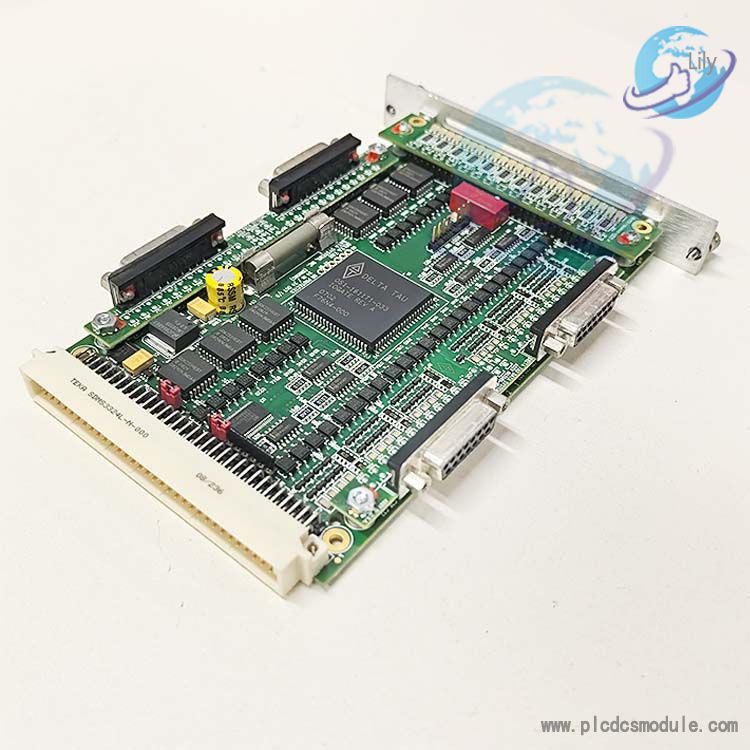

DELTA TAU ACC-68E 603581-101 General Purpose Digital I/O Card.The DELTA TAU ACC-68E 603581-101 General Purpose Digital I/O Card provides isolated and self-protected sinking current channels with 24 inputs and 24 outputs. This means that it is capable of handling 24 digital input signals and 24 digital output signals, and it has built-in isolation and self-protection features to prevent electrical interference and equipment damage.
Technical Parameters
Input Signal Specifications
Input Voltage Range: Generally around 24V DC to adapt to the common sensor signals in the industrial environment.
Input Current: Depending on different input devices, the input current ranges from a few milliamps to several tens of milliamps.
Input Response Time: Usually at the millisecond level to ensure timely response to the changes of external signals.
Output Signal Specifications
Output Voltage: Generally 24V DC to meet the driving requirements of most industrial actuators.
Output Current: The sinking current output capability is usually between several hundred milliamps and several amperes, specifically depending on the design of the card and the load requirements.
Output Response Time: Also at the millisecond level to ensure the rapid control of the actions of external devices.
Operating Environment Conditions
Temperature Range: It can usually operate normally between -20°C and 60°C to adapt to different industrial environment temperatures.
Humidity Range: The relative humidity is generally between 10% and 90% (without condensation) to ensure stable operation under different humidity conditions.
Anti-interference Ability: It has a certain ability to resist electromagnetic interference (EMI) and radio frequency interference (RFI) to ensure normal operation in a complex industrial electromagnetic environment.
Application Fields
Industrial Automation Production Lines: In an automated production line, this I/O card can be used to monitor and control the operating status of various devices. For example, it can monitor the sensor signals on the production line through the input channels to determine information such as the position and quantity of products; and control the start and stop of the conveyor belt, the movement of the robotic arm, etc. through the output channels.
Numerical Control Machine Tools: In numerical control machine tools, the I/O card can be used to achieve various control functions of the machine tool. For example, it can receive button signals on the machine tool operation panel through the input channels, such as start, stop, feed rate adjustment, etc.; and control the spindle motor of the machine tool, the tool changing device, etc. through the output channels.
Power System: In the power system, this I/O card can be used to monitor and control the operating status of power equipment. For example, it can monitor parameters such as the temperature, voltage, and current of power equipment through the input channels; and control the switches and protection devices of power equipment through the output channels.
