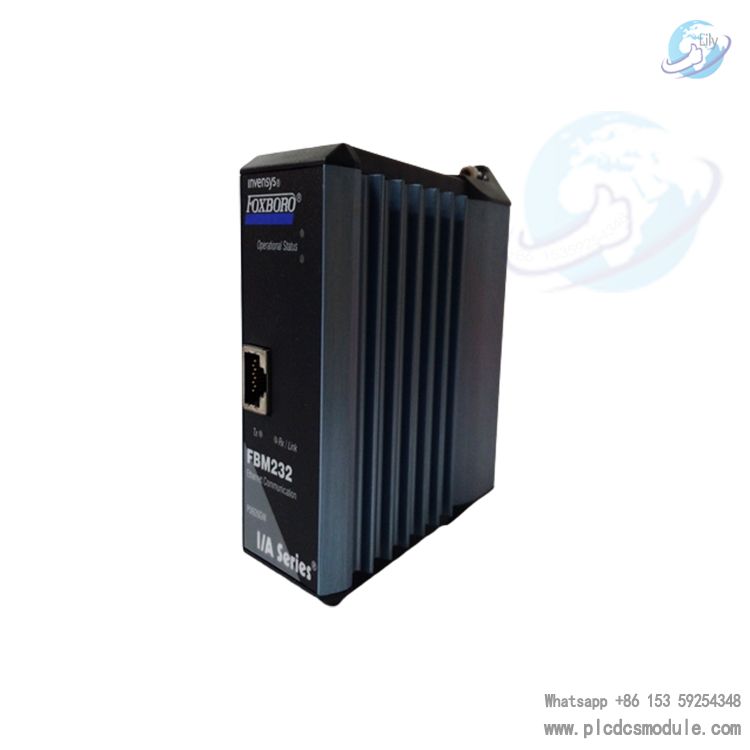

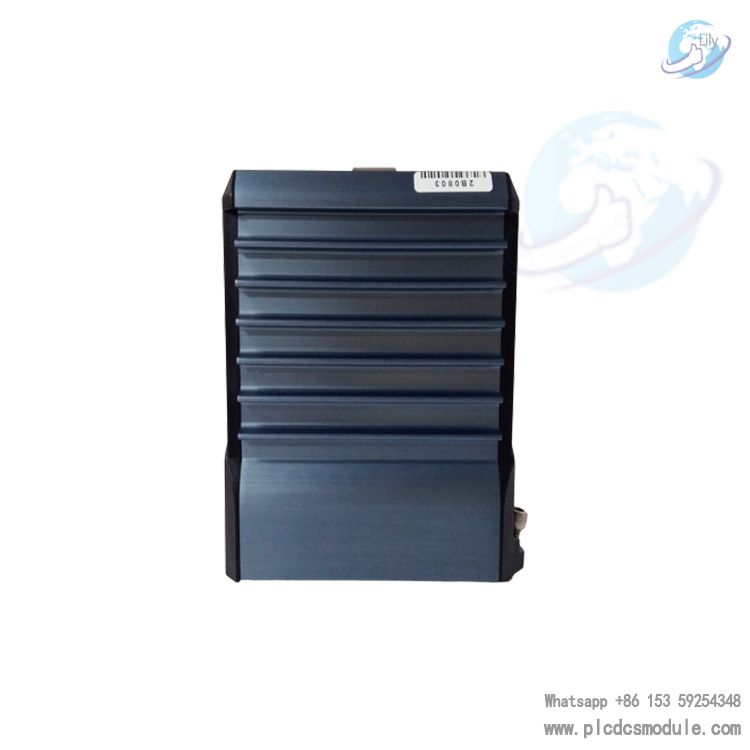

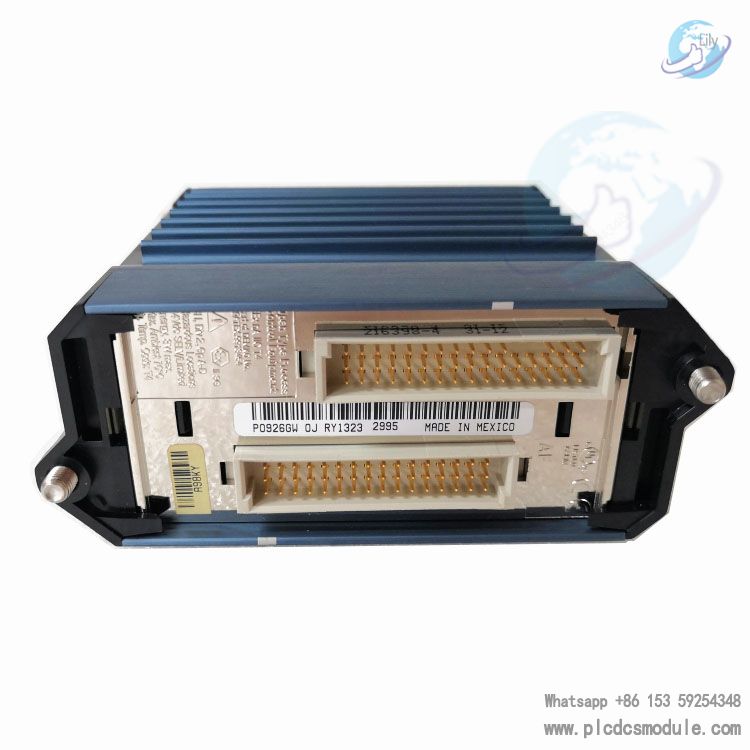

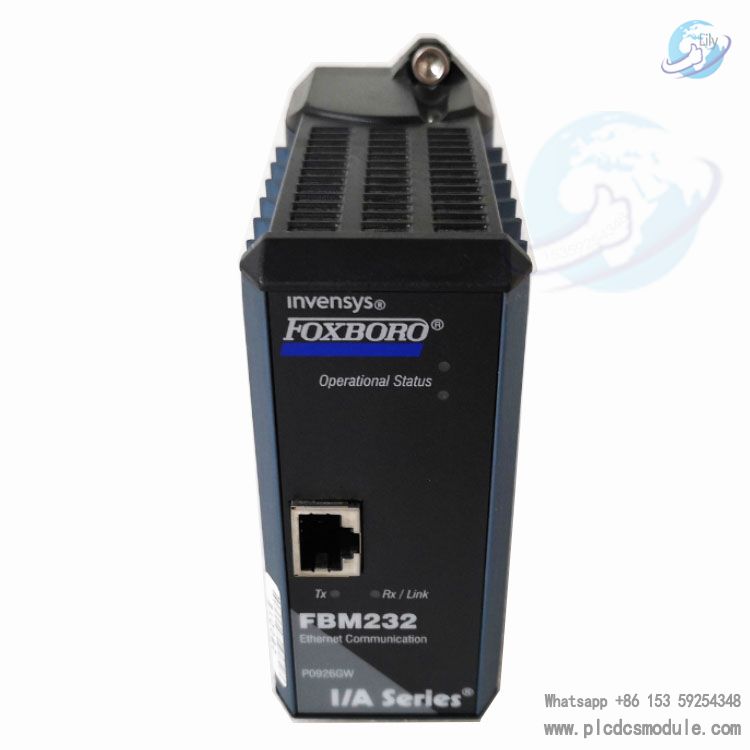

The FOXBORO FBM232 P0926GW, as a device that provides a single Ethernet interface for single-ported field I/O devices and the I/A Series system, supports network transmission rates of 10 Mbps or 100 Mbps and can connect up to 64 field devices. It has rich functional features. In terms of input and output, it has multiple types, supports the transmission of different data types, and can achieve 2,000 DCI block connections. In terms of communication capabilities, it communicates with field devices via the RJ-45 interface, supports the UDP/IP or TCP/IP protocol, and the IP address can be set fixedly or obtained through DHCP. The software drivers can be downloaded from the protocol library. It not only supports standard product drivers but also can be adapted to custom drivers to meet the protocol requirements of different devices. In terms of control block support, it supports multiple types of standard I/A Series system DCI blocks, which greatly facilitates configuration and data reading and writing operations.
data sheet
FOXBORO FBM232 P0926GW IA Series Ethernet (FDSI) Module.pdf
Technical Specifications
Power Requirements: The input voltage range is 24V dc +5%, -10%, and the maximum power consumption is 7W.
Electromagnetic Compatibility: It complies with relevant standards of the European EMC Directive, such as EN 50081-2 and EN 50082-2.
Safety Certifications: It has passed certifications from UL, UL-C, CENELEC (DEMKO), etc., and is suitable for various hazardous environments.
Environmental Specifications: The operating temperature ranges from -20°C to +70°C, the storage temperature ranges from -40°C to +70°C, the relative humidity is 5%-95% (non-condensing), and it is suitable for harsh Class G3 environments.
Physical Specifications: The mass is approximately 284g. The dimensions are 102mm in height (114mm including mounting lugs), 45mm in width, and 104mm in depth. It is mounted on a modular baseplate, and the connection cable length ranges from 1m to 100m.
Related Accessories and Network Configuration: It can be used in conjunction with 4-port 10Mbps industrial hubs or fast Ethernet switches. The hub supports the 10Mbps Ethernet protocol and has relevant power supply, communication, safety, and environmental specifications.
