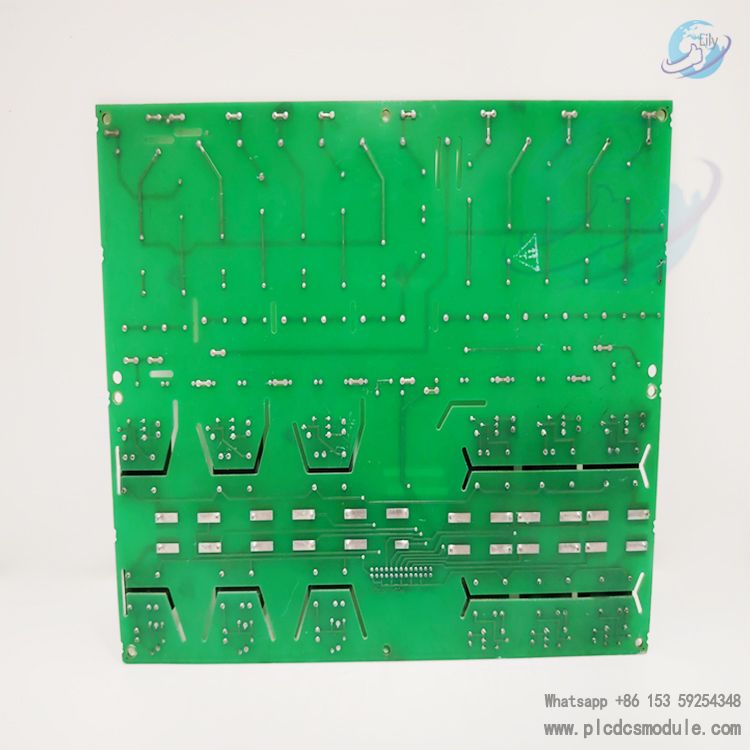

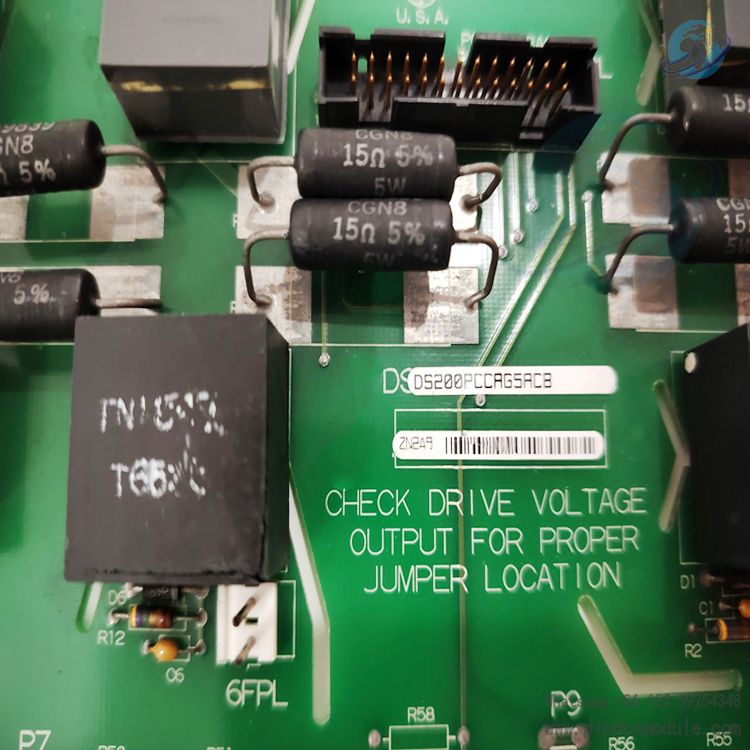

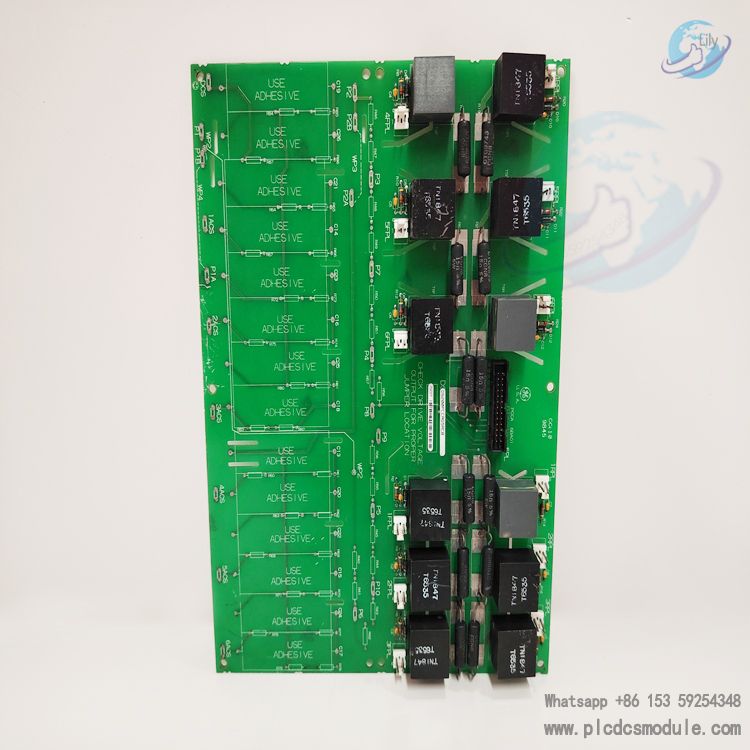

GE DS200PCCAG5ACB Mark V Power Connect Card.The DS200PCCAG5ACB is a power connection card created by General Electric. It's the discontinued Mark V series. This DS200PCCAG5ACB is not the original GE product with its features. The original is the DS200PCCAG5 power connection card, and there is no DS200PCCAG5ACB product version with three important functions.
The DS200PCCAG5ACB power connection card has a maximum AX voltage of 1500 V rms and is particularly compatible with J, K and M type Mark V Series frame components. The DS200PCCAG5ACB uses four jumpers. These jumpers are labeled WP4, WP3, JP2, and JP1. The board is located behind the drive control behind the power board. The PCCA is attached to the back of the board bracket with these two boards. There are 6 plastic brackets to secure it to the bracket.
GE Speedtronic Mark V DS200PCCAG5ACB is a Drive System Power Board also known as a Power Connect Card (PCCA). The DS200PCCAG5ACB was designed to connect an SCR power bridge to the drive's control circuitry. This is accomplished by employing pulse transformers to feed the gate drive to the SCR bridge. Because it has removed all of its snubbers and relocated them elsewhere in the system, this board is designated as a high horsepower PCCA and should be used with high HP controllers.
The PCCA has 12 plug connectors that can be used to provide gate pulse signals to the SCR bridge in both forward and reverse directions. Another of its plug connectors can be used to communicate with the power supply board.
A DCFB-type power supply board should be used with this system. Leg reactors and fuses are also used in this PCCA. It makes use of either independent or shared bus transformers. A total of four wire jumpers are used in the DS200PCCAG5ACB. WP4, WP3, JP2, and JP1 are the labels for these.
