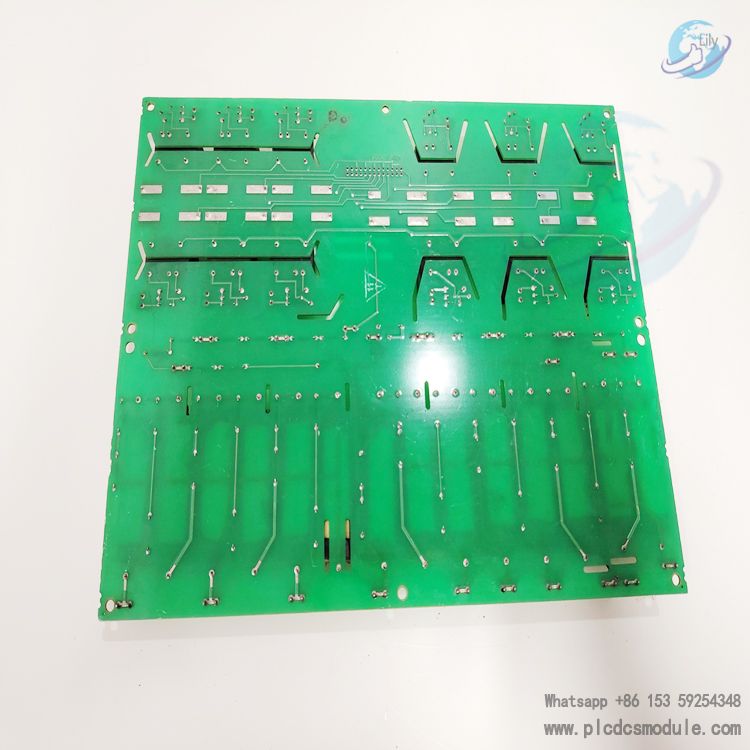

GE DS200PCCAG1ACB DC Power Connect Board.The DS200PCCAG1ACB Power connection card assembly is one of the important components of the Mark V series developed by General Electric. Ge's Mark V series uses GE's patented Speedtronic technology. The DS200PCCAG1ACB is not the original power connection card component in the Mark V series, it was formerly the DS200PCCAG1A printed circuit board. The DS200PCCAG1ACB has three product revisions: A Level A feature revision, a Level C feature revision, and a Level B appearance revision.
DS200PCCAG1ACB Features:
Used as an interface between the driver and the SCR power bridge

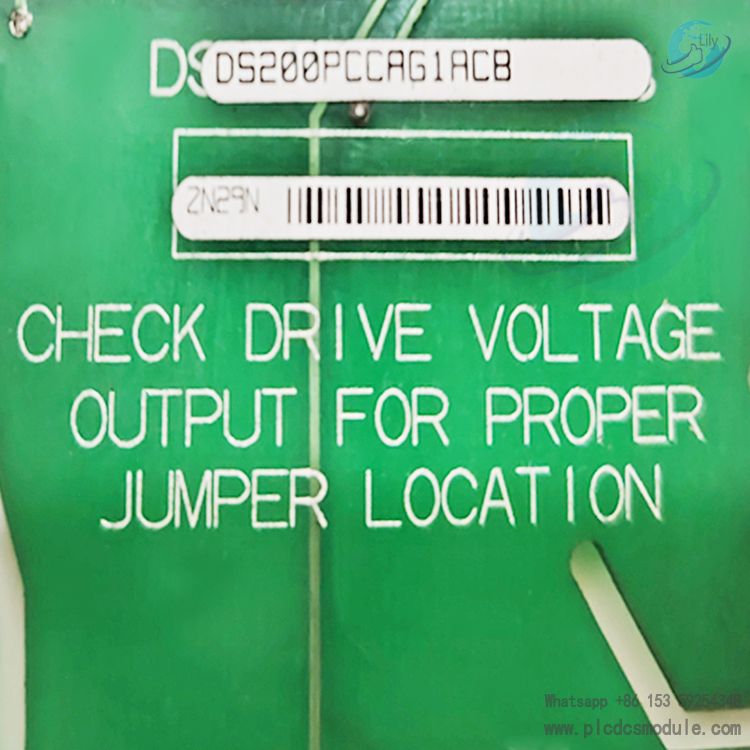

Contains four jumpers that can be used to configure the behavior of the board in the driver
No fuse, indicator light, test point or switch for troubleshooting
DS200PCCAG1ACB functions:
Acts as an intermediate component between the drive and the power bridge
Capacitor operation associated with power Bridges and voltage feedback channels is allowed to be configured
Changes can be made quickly and easily to minimize drive downtime
