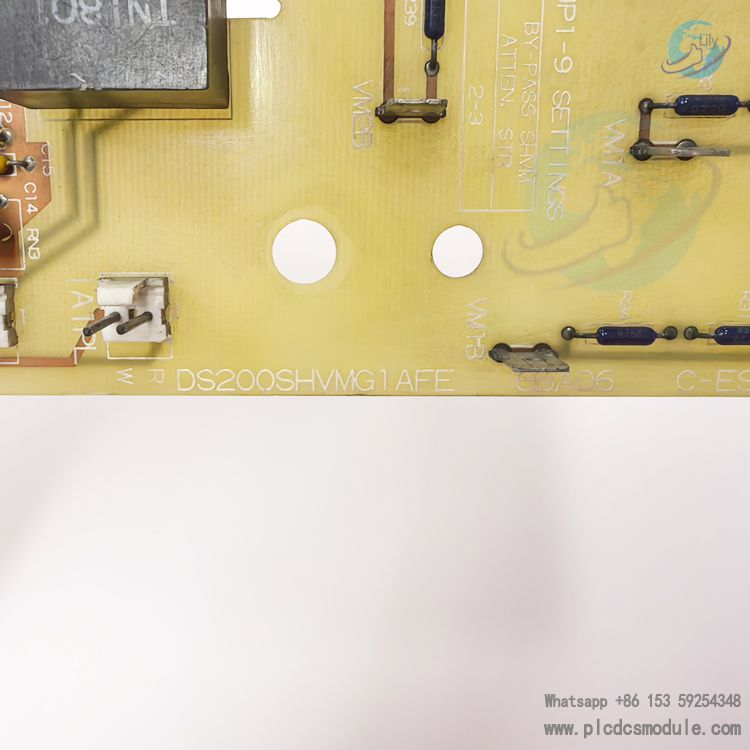

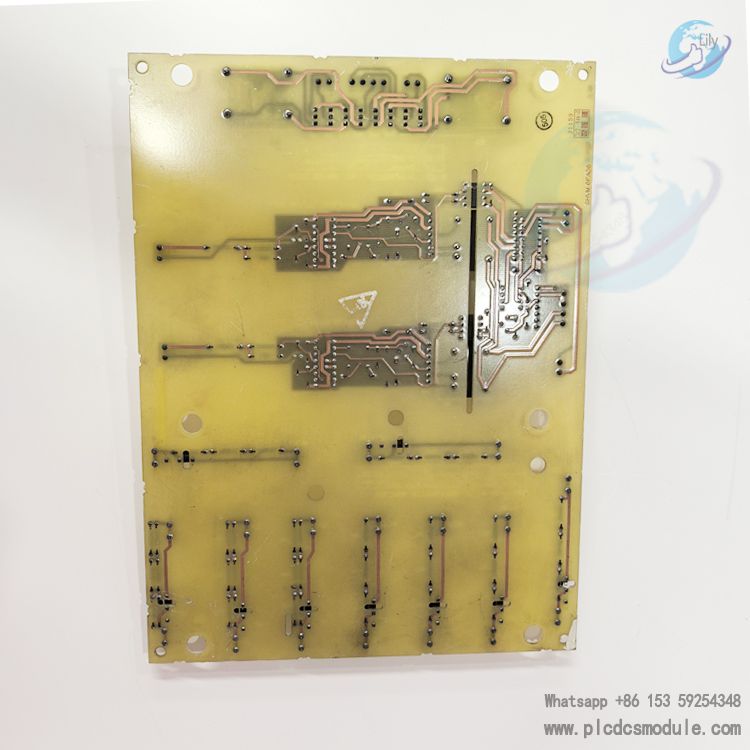

GE DS200SHVMG1AFE | high voltage M-frame interface board.DS200SHVMG1AFE is a high voltage M-frame interface board designed by GE. An important part of the Mark V series, this card is able to play a role in a wide range of GE branded drives and exciters. Although the Mark V Series has specific applications in control and management systems for automatic drive components of wind, steam and gas turbines. The interface media is provided when the board is installed. This interface board enables communication between the SCR bridge of the M-frame driver, the power supply board (DCFB or SDCl), and the power Supply connection card (PCCA).
DS200SHVMG1AFE Key Features and Specifications
Part Number: DS200SHVMG1AFE
Functional Description: SCR High Voltage M-Frame Interface Board
Functional Acronym: SHVM
PCB Coating: Normal Coating
Mark V Series Grouping: Group 1
Backwards Compatibility: First two revisions
