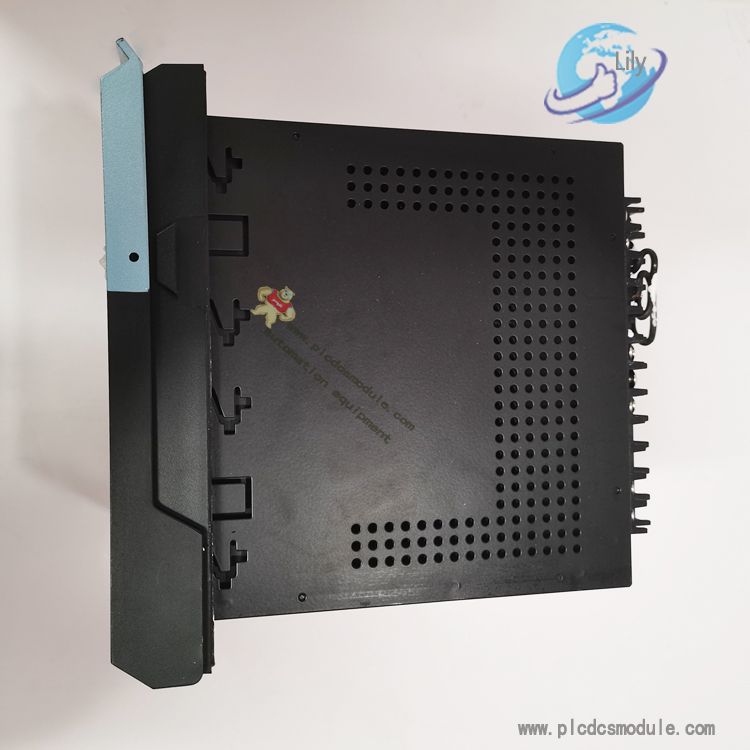

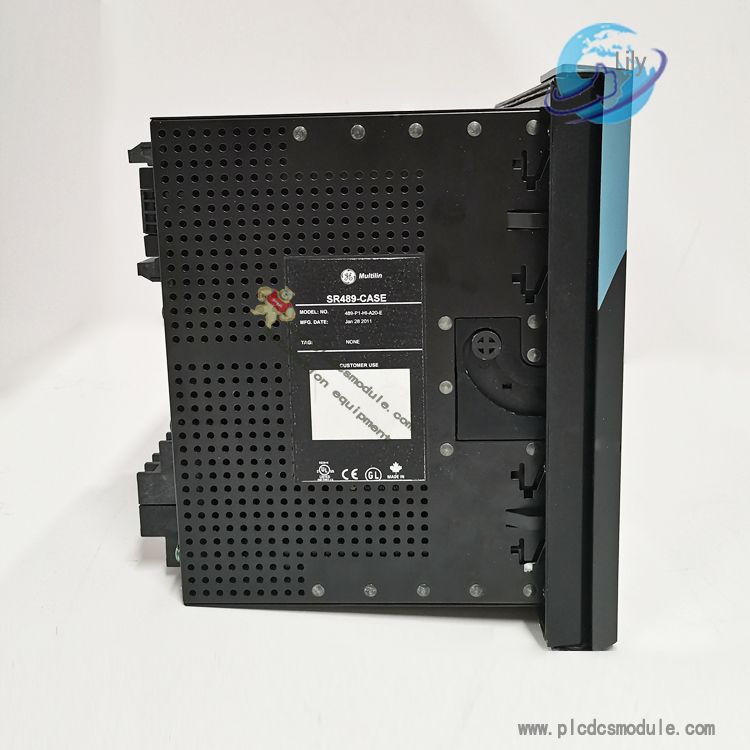

The GE 489-P5-HI-A20-E is a generator management relay, manufactured by GE Multilin for the 489 series. The relay has a 5 A phase CT secondary coil. The high control power supply is 90-300 volts DC and 70265 volts AC at 48-62 Hz. The relay has an analogue output of 4 to 20 mA.The relay has an enhanced display with a larger LCD than the basic display. It is the customer's responsibility to ensure proper insulation levels if low voltage applications require output relay contacts.
To learn more about this product click on the file below or download the file:
SR489 Generator Management Relay.pdf
SR489-P1-HI-A20-EThe Generator Management Relay is a microprocessor based relay designed to protect and manage synchronous and induction generators.
Neutral overvoltage (basic)
Pickup level: 2.0 to 100.0 V secondary side in 0.01 steps
Time delay: 0.1 to 120.0 seconds in 0.1 steps
Pickup accuracy: based on neutral voltage input
Timing accuracy: ±100 ms or ±0.5% of total time
Elements: Trips and alarms
Neutral undervoltage (3rd harmonic)
Blocking signal: if open delta, low power and low voltage
Pickup level: 0.5 to 20.0 V secondary in steps of 0.01 if open delta VT; adaptive if star VT
Time delay: 5 to 120 seconds in steps of 1
Pickup accuracy:
20.0 V secondary side voltage: according to neutral voltage input
At >20.0 V secondary side: ±5% of pickup value
