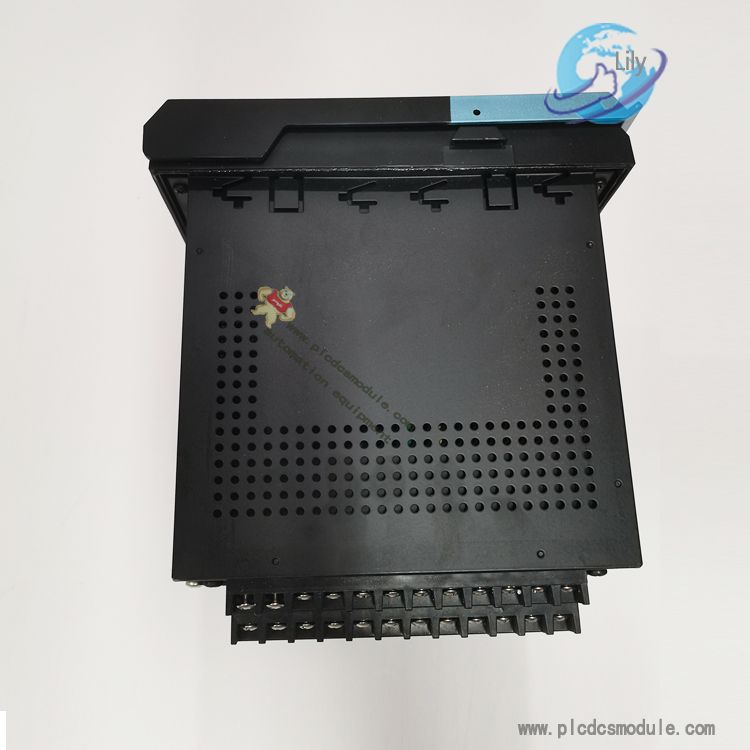

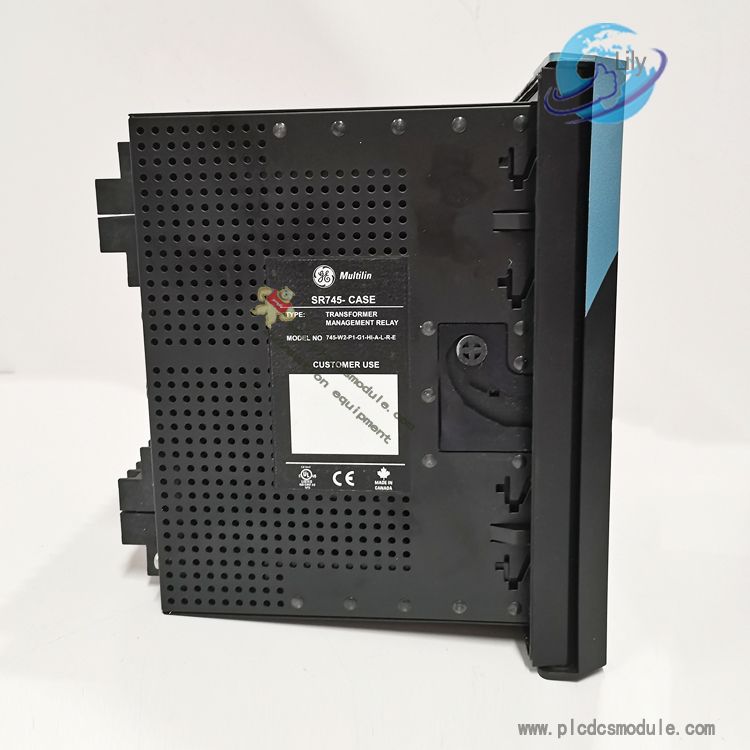

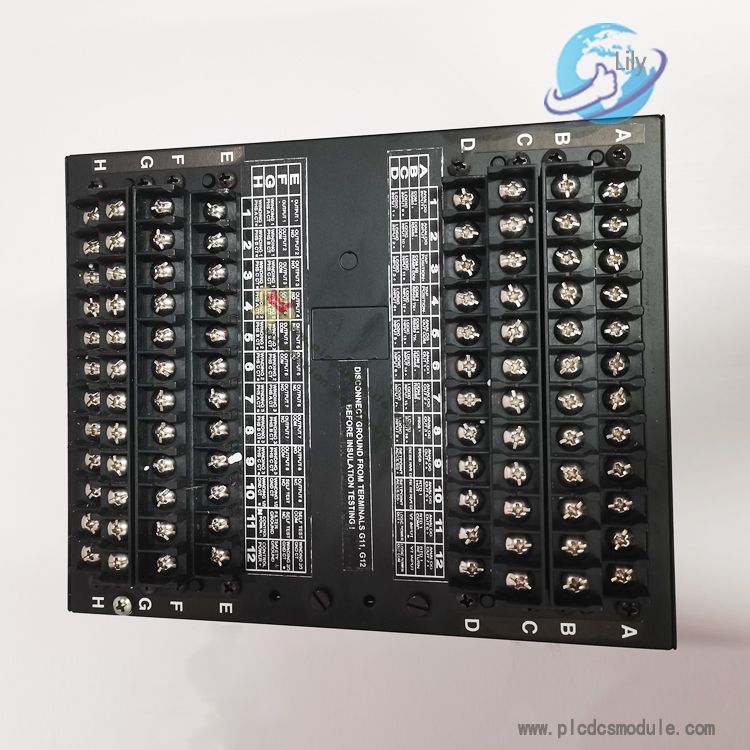

GE SR745-W2-P1-G1-HI-A-L-R MULTILIN 745 Transformer Protection System.The GE SR745-W2-P1-G1-HI-A-L-R Transformer Protection System is a high speed, multi-processor based, threephase, two or three winding, transformer management relay intended for the primaryprotection and management of small, medium and large power transformers. The 745combines percent differential, overcurrent, frequency, and overexcitation protectionelements along with monitoring of individual harmonics, and total harmonic distortion(THD) in one economical package.
To learn more about this product click on the file below or download the file:
745 Transformer Protection System Instruction Manual.pdf
The SR745-W2-P1-G1-HI-A-L-R relay provides a variety of adaptive relaying features:
• Adaptive harmonic restraint which addresses the problem of false tripping during inrush
• Adaptive time overcurrent elements which will adjust their pickup settings based on the calculated transformer capability when supplying load currents with high harmonic content
• Multiple setpoint groups which allow the user to enter and dynamically select from up to four groups of relay settings to address the protection requirements of different power system configurations
• Dynamic CT ratio mismatch correction which monitors the on-load tap position and automatically corrects for CT ratio mismatch
• FlexLogic which allows PLC style equations based on logic inputs and protection elements to be assigned to any of the 745 outputs.
