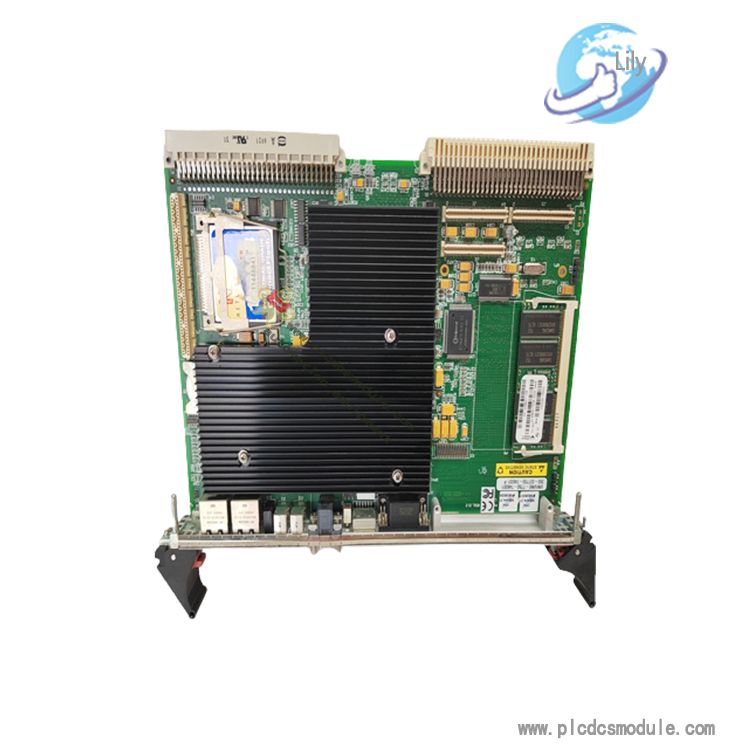

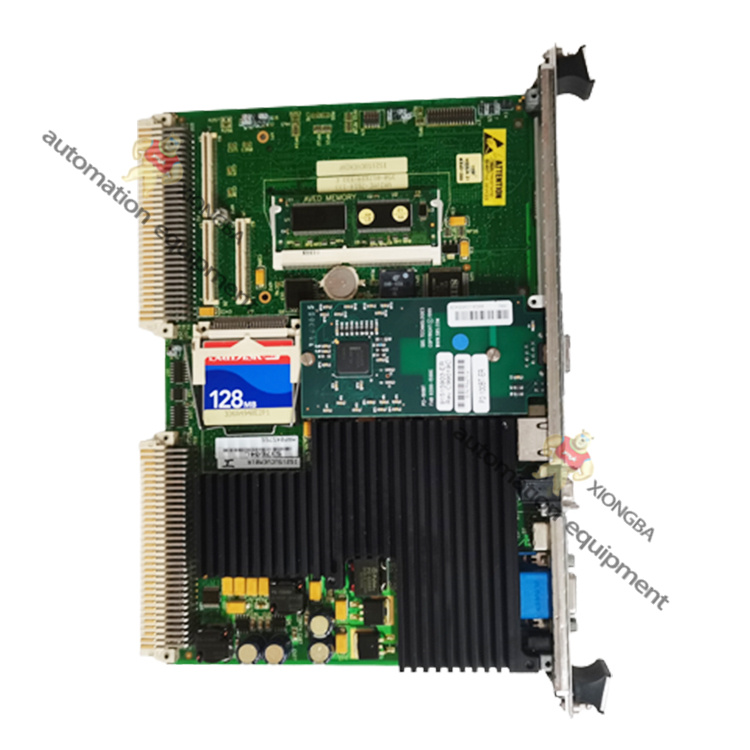

GE VMIVME-7750 CPU board

VMIC VMIVME-7750-734 CPU board. Intel Pentium III Processor-based VMEbus | 1.26 GHz Pentium III with 512K Cache | SDRAM Memory - 64 MB | CompactFlash - 64 MB Simple Type: CPU Boards

The VMIVME-7750 brings the Intel Pentium III processor to the VMEbus, providing processor speeds up to 1.26 GHz. The Pentium III processor has 32-bit addressing and a 64-bit data bus. The Pentium III processor has 32-bit addressing and a 64-bit data bus. Its superscalar architecture allows three instructions per clock cycle. Dynamic branch prediction units, separate instruction and data caches, and MMX technology also increase processor performance.

Features

BIOS: The system and video BIOS are located in reprogrammable flash memory.

DRAM Memory: The VMIVME-7750 accepts one 144-pin SDRAM SODIMM with a maximum memory capacity of 512 MB. the on-board DRAM is connected to the VME bus through a dual-port connection.

Flash: The VMIVME-7750 provides up to 1 GB of IDE CompactFlash memory, accessible through the auxiliary IDE port.

Timers: The VMIVME-7750 provides the user with two 16-bit timers and two 32-bit timers (in addition to the system timer). These timers are mapped to I/O space and are fully programmable by software.

Watchdog Timer: The VMIVME-7750 provides a software programmable watchdog timer.

The GE VMIVME-7750-834 is a Pentium III 933 MHz processor-based VME single board computer that offers powerful computing capabilities, flexible storage and communication options, and VME-compliant stability and reliability. It is suitable for a variety of industrial control, automation and test applications in scenarios requiring high performance and reliability.

Expanded models:

VMIVME-7750-834 350-027750-834

VMIVME-7750-760000 350-027750-760000

VMIVME-7750-746001 350-027750-746001

VMIVME-7750-744001 350-027750-744001

For more products, click here For more offers contact plcdcs-module@foxmail.com
