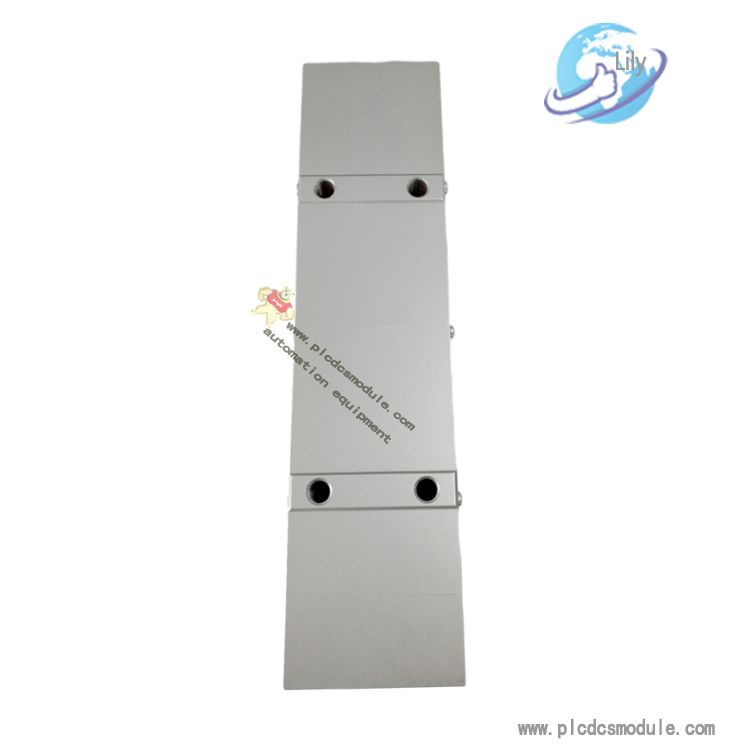

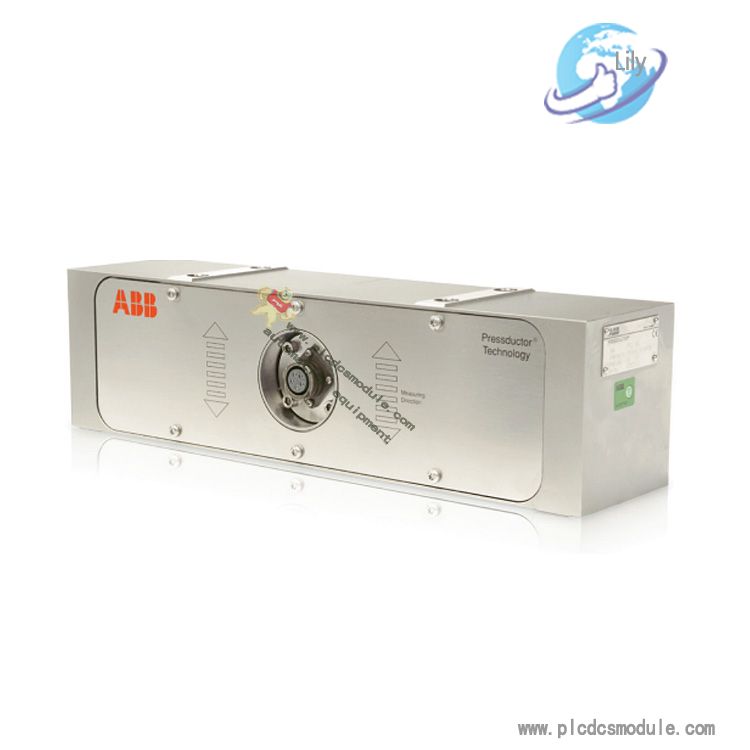

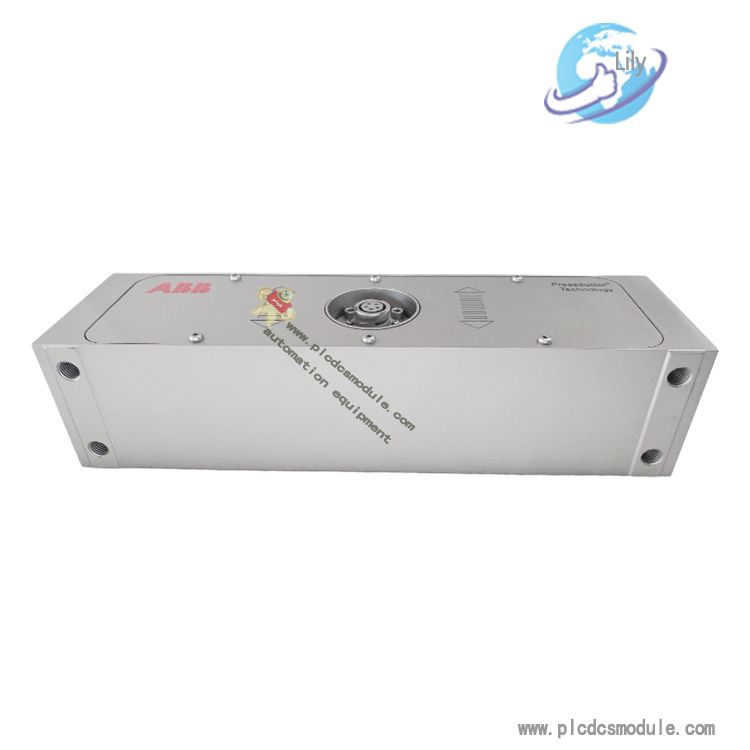

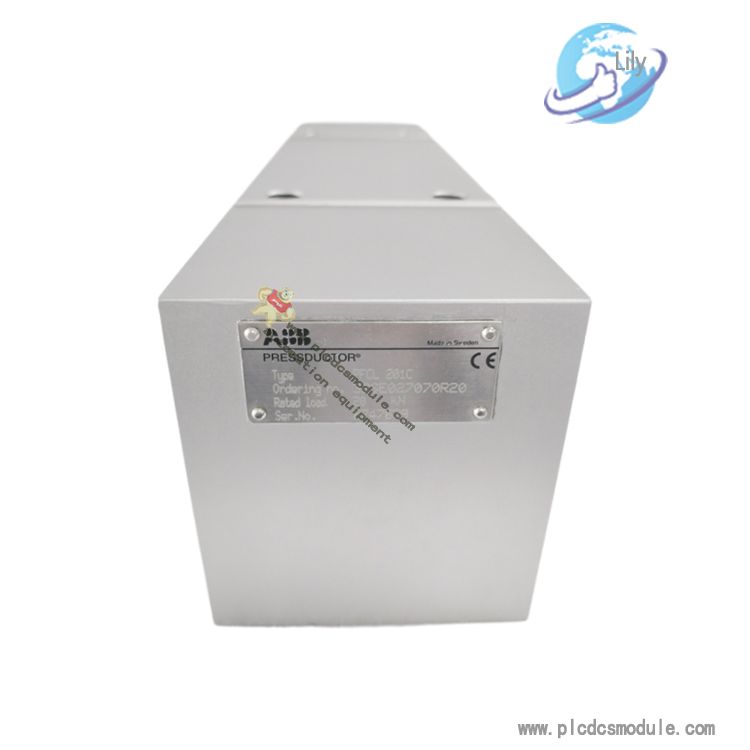

ABB PFCL201C 3BSE027070R20 20KN is a pressure sensor pillow block load cell. It is a device used to measure force in industrial applications. It is commonly used in weighing, process control and machine automation.
The load cell is produced using a variety of manufacturing processes, including:
Material selection: load cells are made from high strength materials, such as steel or aluminium, which can withstand heavy loads.
Machining: Load cells are machined to precise dimensions to ensure accurate measurements.
Assembly: The load cell assembly is assembled and calibrated to ensure it meets ABB's high quality standards.
Once completed, the load cells are tested and packaged for shipment to customers around the world.(Models of the same series:PFCL201C)
ABB PFCL201C 3BSE027070R20 20KN ist ein Tensiometer, das Teil des verteilten Steuerungssystems ABB Ability System 800xA ist. Es wird zur Spannungsmessung in einer Vielzahl industrieller Anwendungen eingesetzt, darunter Energieerzeugung, Fertigung und Wasseraufbereitung.
| PROPERTIES | |||||
| Nominal load | |||||
| (rated capacity) | kN | 5.0 | 10.0 | 20.0 | 50.0 |
| Lbs. | 1125 | 2250 | 4500 | 11250 | |
| Extended load | kN | 7.5 | 15.0 | 30.0 | 75.0 |
| Lbs. | 1688 | 3375 | 6750 | 16875 | |
| Permitted load | |||||
| Transverse direction | kN | 2.5 | 5.0 | 10.0 | 25.0 |
| (horizontal) h=300 mm | Lbs. | 563 | 1125 | 2250 | 5625 |
| Overload capacity | |||||
| Measurement direction | |||||
| (vertical) | kN | 50.0 | 100.0 | 200.0 | 500.0 |
| Lbs. | 11250 | 22500 | 45000 | 112500 | |
| Transverse direction | |||||
| (horizontal) h=300 mm | kN | 12.5 | 25.0 | 50.0 | 125.0 |
| Lbs. | 2815 | 5625 | 11250 | 28125 | |
| Deflection | mm | 0.02 | 0.02 | 0.02 | 0.02 |
| 1/1000 inch | 0.8 | 0.8 | 0.8 | 0.8 | |
| Spring constant | kN/mm | 250 | 500 | 1000 | 2500 |
| 1000 Lbs./inch | 1430 | 2860 | 5720 | 14300 |
