PM866AK02 ABB Redundant Processor Unit Controller.The PM866AK02 (3BSE081637R1) is a redundant processor unit designed for industrial automation and control applications, especially in the AC 800M series. It offers a wide range of features and benefits for high-performance and reliable industrial control systems.
Below are the main specifications and features:
- with various baud rates
Item No.: 3BSE081637R1
Processor Type: MPC866
Clock frequency: 133 MHz
Performance: Capable of performing 1000 Boolean operations in 0.09 ms.
Memory: 64 MB, of which 51.389 MB can be used by applications
Flash: Yes, for storage purposes
Redundancy: Yes, supports redundancy to enhance system reliability and availability
EMC certification: Yes, to ensure compliance with electromagnetic compatibility standards
Segmented CEX-Bus: Expands on-board communication ports with a pair of BC810/BC820
Communication connectivity: Supports Ethernet, PROFIBUS DP and other standards for optimal communication
Built-in redundant Ethernet communication ports: for increased network reliability
IP20 protection: dust- and water-resistant without housing
Power supply: 24 V DC (19.2-30 V DC), power consumption 210/360 mA at +24 V
Built-in battery backup: Li-Ion, 3.6 V, for memory backup
Clock synchronisation: Ability to synchronise with other AC 800M controllers via the CNCP protocol
Control network protocols: supports MMS (Manufacturing Message Service) and IAC (Inter Application Communication)
RS-232C interface: two interfaces available, one for general purpose and one for service tools, with various baud rates
I/O capacity on Modulebus: up to 96 (single PM866) or 84 (redundant PM866) I/O modules
I/O capacity on Modulebus: up to 96 (single PM866) or 84 (redundant PM866) I/O modules

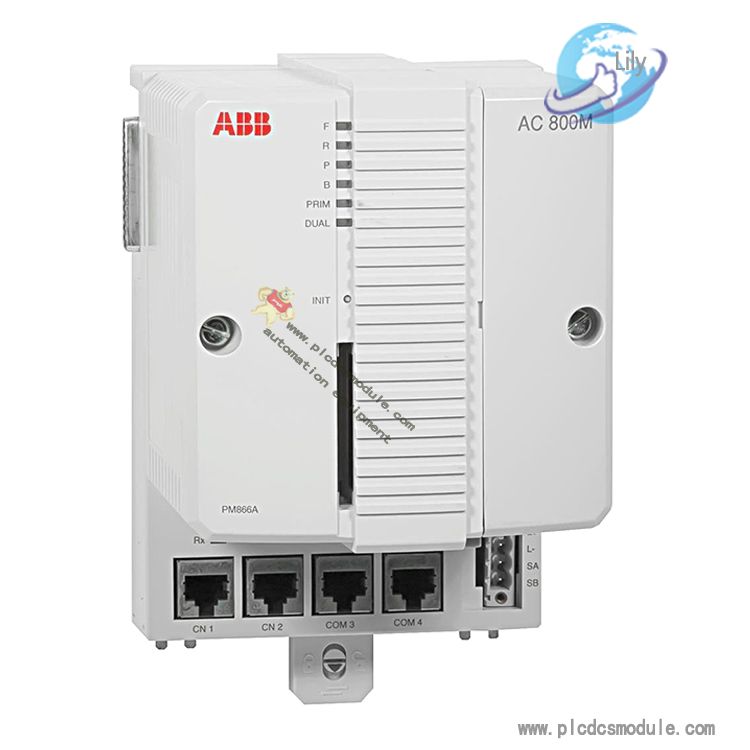

The base plate of the PM866 / PM866A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).(PM891K01)
