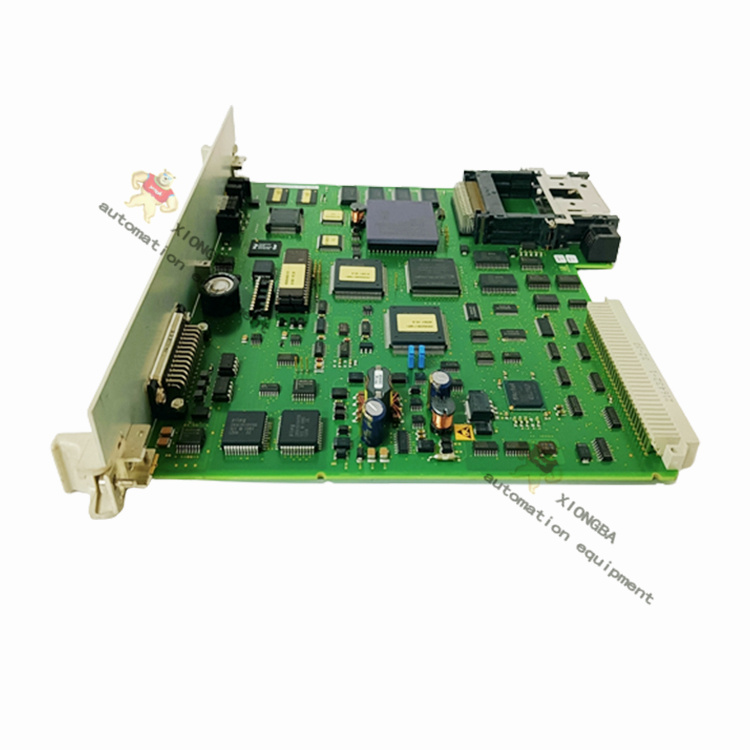

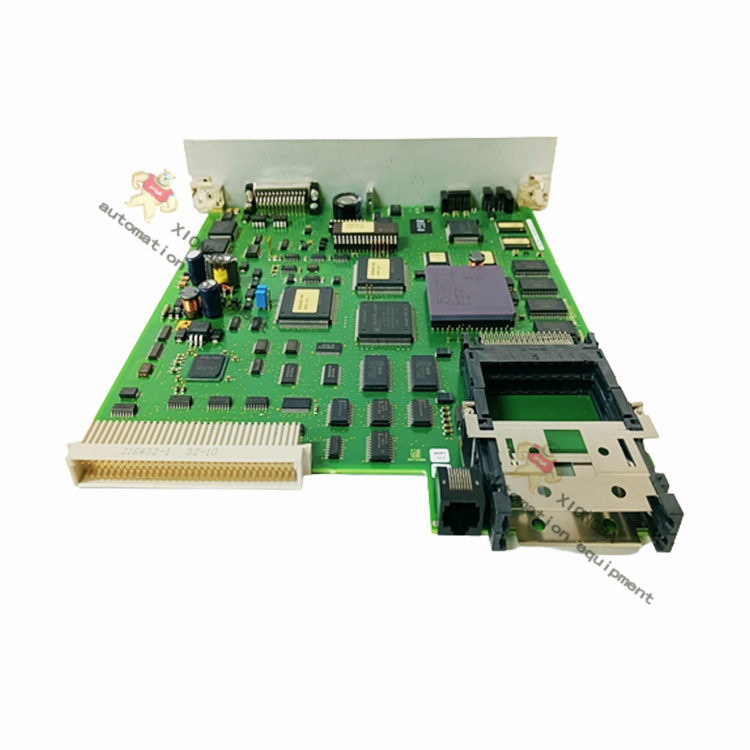

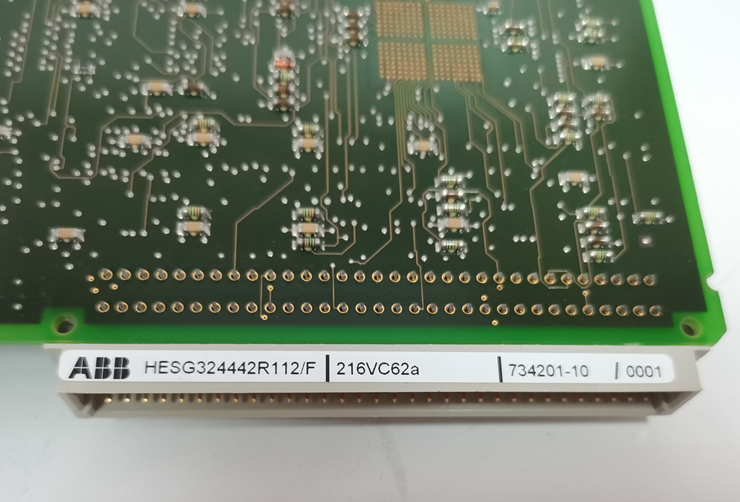

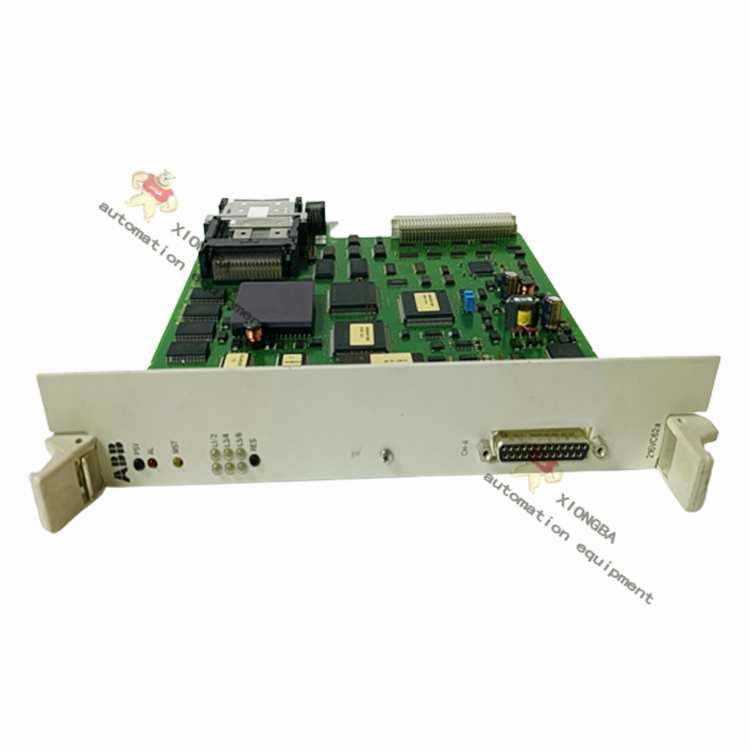

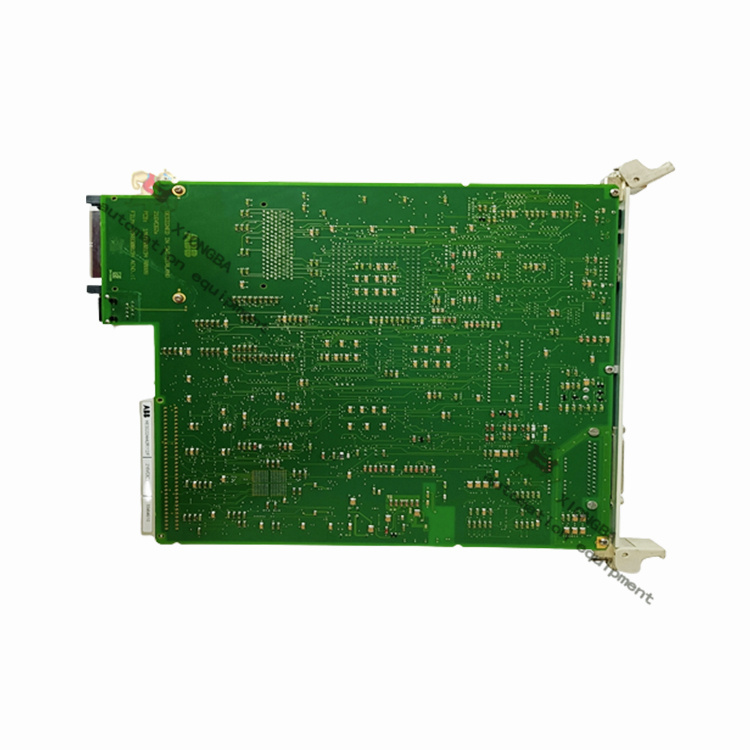

ABB 216VC62a HESG324442R13 HESG324442R112 Processor unit control module

The digitised measured variables derived from the primary system quantities are continuously compared by the processing unit 216VC62a with the pick-up settings of the protection functions. If a protection function picks up, the corresponding signal or tripping command is transmitted via the B448C bus to the 216AB61 O/P unit resp. to the 216DB61 I/O unit. The allocation of the signals and tripping commands at the O/P’s of the protection functions to the various channels of the 216AB61 output unit or of the 216DB61 I/P signal and tripping unit is also determined by the software installed in the 216VC62a processor unit.

The external input signals connected to the protection energise the auxiliary relays K1...K16 in the 216GE61 I/P relay unit. The potentially-free contacts of K1...K16 transmit the external signals to the 216DB61 unit and thence to the B448C bus. By appropriate configuration of the software in the 216VC62a processing unit, external signals can be assigned to the various protection functions, e.g. for logical combination (interlocking and blocking) with trip signals or for exciting the tripping channels 1...8.

216VC62a is a processor unit relay card that is part of the Symphony Plus control system, which is designed for process automation and control in various industries, including oil and gas, power generation, and water treatment. The module has 16 analog input channels that can be used to measure voltage or current signals from various sensors or transmitters. The signals are then converted into digital data that can be processed by the control system. The module supports various types of input signals, including 0-10 V, 0-20 mA, 4-20 mA, and thermocouples
