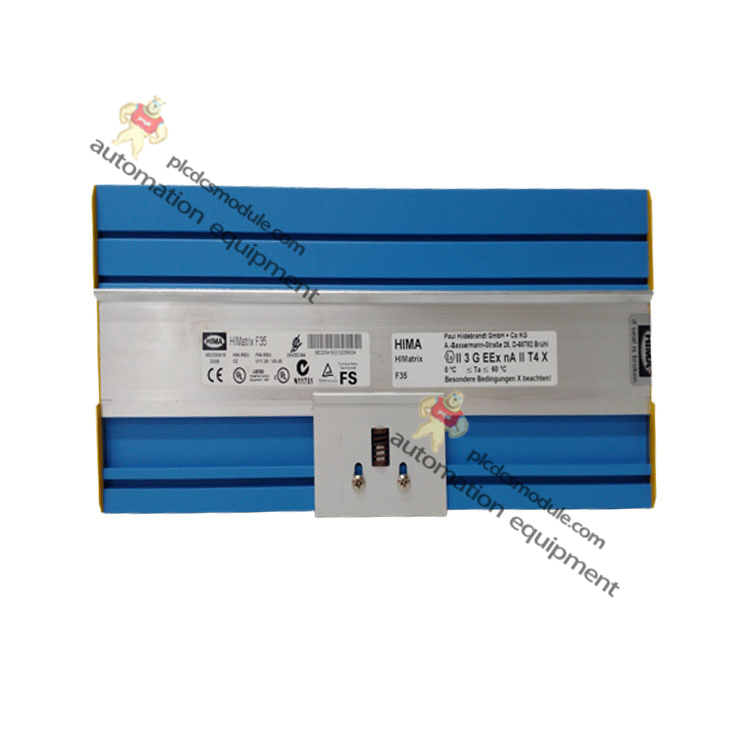

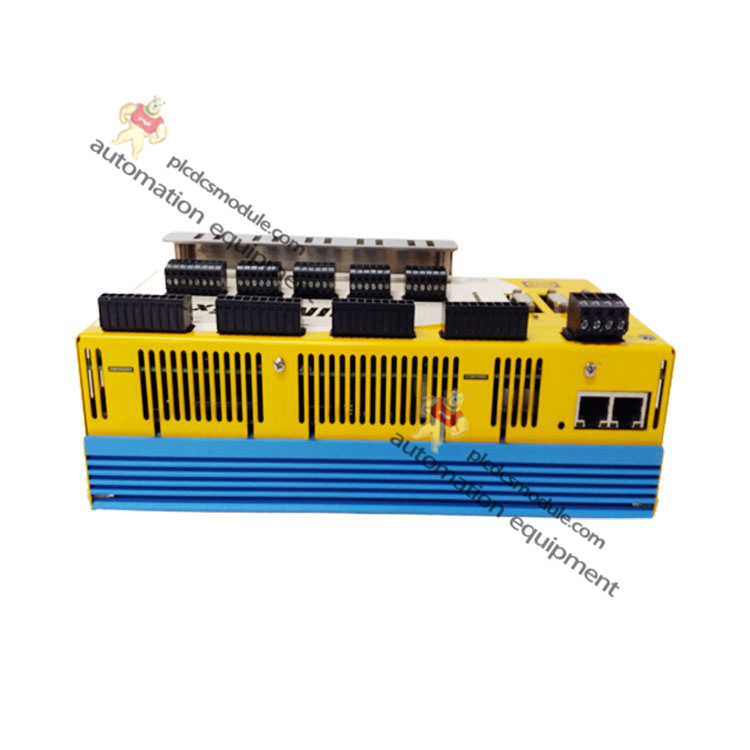

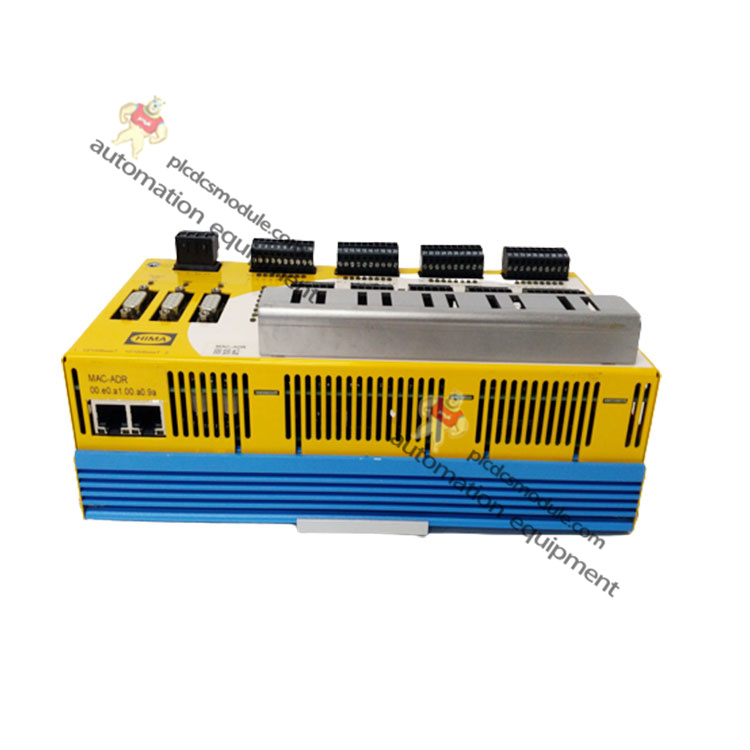

HIMA HIMatrix F35 (Part‑No: 982200416) Safety‑Related Controller
Product Description
HIMatrix F35 (982200416) is a compact safety‑related controller manufactured by Germany HIMA, belonging to the HIMatrix safety programmable electronic system (PES) series. It comes with a metal housing, fully integrated I/O channels, high‑speed counters and multiple communication interfaces, and supports DIN‑rail mounting. It is certified with TÜV SIL3, Cat.4, PL e for functional safety. HIMatrix F35 (982200416) targets small‑to‑medium safety instrumented loops. It can run standalone or build distributed safety networks via SafeEthernet. Three hardware variants are available: standard version, low‑temperature enhanced version and Subsea version, suitable for ordinary plant sites, low‑temperature outdoor locations and offshore subsea equipment respectively. Two programming tools are supported: ELOP II Factory and SILworX. Firmware version must strictly match the corresponding engineering software.
Download
Technical Specifications
| Digital Input DI | 24 channels, non‑isolated, sink logic, 0‑30V measuring range, compatible with passive mechanical contacts |
| Digital Output DO | 8 channels; DO1‑3, DO5‑7: 0.5A per channel; DO4, DO8: max.1A (2A at 50 °C ambient temperature) |
| Analog Input AI | 8 single‑ended channels, 0‑10V voltage input; 0‑20mA current acquisition achievable with shunt adapter; safety accuracy ±2% full scale |
| High‑Speed Counter | 2 independent counters, 5V/24V level support, 24‑bit resolution, max.input frequency 100 kHz, Gray‑code decoding mode supported |
| Communication Interfaces | 4‑port integrated 10/100Base‑TX Ethernet switch, SafeEthernet safety communication, UDP/TCP multi‑port; 3 D‑Sub fieldbus interfaces FB1/FB2/FB3, supporting PROFIBUS‑DP, Modbus RTU, RS232, RS422 |
| Power Supply | 24VDC, fluctuation range ‑15%~+20%, SELV/PELV safety isolated power |
| Operating Temperature (Standard) | 0~+60 °C; Storage temperature: ‑40~+85 °C |
| Protection Class | IP20 |
| Dimensions | W 257mm × H 114mm × D 97mm; Weight approx.1.2kg |
| Mounting | 35 mm DIN‑rail; F35‑012 Subsea version requires dedicated aluminum mounting baseplate |
| Safety Certifications | SIL3 (IEC61508/IEC61511), Cat.4 (EN954‑1), PL e (EN ISO13849‑1), ATEX Zone2 installation approval, Lloyd’s Register, UL, FM and other certifications |
Core Advantages
- Highly integrated hardware: controller unit integrates full set of I/O and counters. No extra I/O modules required for small‑scale projects, saving cabinet space and wiring workload.
- Comprehensive safety self‑diagnosis: channel‑specific fault codes available for DI/DO/AI/counters. Outputs force de‑energized upon fault following de‑energize‑to‑trip safety philosophy.
- Flexible networking: built‑in Ethernet switch for direct distributed safety system setup, compatible with HIMatrix remote I/O nodes.
- Multiple hardware variants: besides standard 982200416, low‑temperature variant (‑20 °C) and ISO13628‑6 qualified Subsea variant are available for harsh field conditions.
- Dual software platform support: ELOP II Factory for legacy firmware, SILworX for V7 and newer firmware, compatible with legacy retrofit and new projects.
- Hardware clock buffered by supercapacitor, maintains time for approx.one week after power loss; no external battery needed.
Product Features

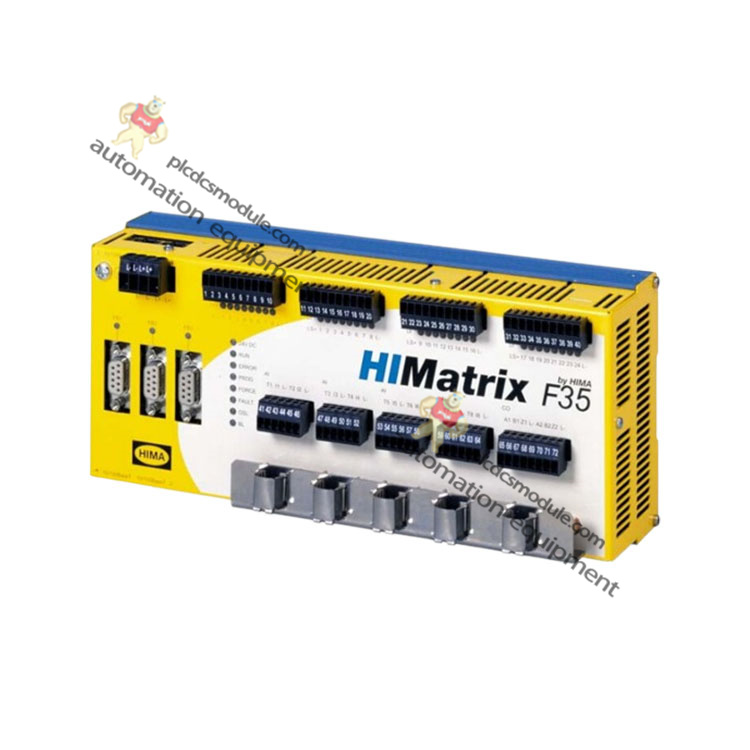

- Front panel equipped with full status LED indicators: Power, RUN, ERROR, FAULT, PROG plus individual I/O channel LEDs for quick on‑site visual diagnosis.
- Analog input channels support 4‑20 mA signal acquisition when used with external shunt adapters Z7301/Z7302; analog channels can monitor open‑circuit and short‑circuit faults for digital output external wiring.
- Two high‑speed counters support pulse counting and Gray‑code absolute encoder decoding, suitable for safe speed and position monitoring of rotating machinery.
- Configuration reset hole restores IP address and user credentials to factory defaults.
- I/O channels support channel disable and custom hysteresis threshold; passive mechanical contacts can be directly connected to DI or AI terminals.
- Unique fault codes are generated for each I/O channel fault, which can be read by user logic for customized fault handling.
- Approved for Ex Zone2 hazardous area installation, must be housed inside enclosure with minimum IP54 protection grade.
Application Fields
- Oil & Gas Petrochemical: wellhead safety control, F&G fire & gas monitoring, compact ESD emergency shutdown loops, offshore platform Subsea control units
- Boiler Combustion: BMS burner management system, boiler safety interlock protection
- Machinery Safety: press equipment, hoisting machinery, automated high‑bay warehouse safety control, meeting PL e machine safety requirements
- Turbomachinery: compressor overspeed protection, unit safety interlock
- Rail Transit: safety control for track auxiliary equipment
- Pharmaceutical & Chemical: compact SIS safety instrumented system, process safety interlock
- Pipeline Transportation: safety monitoring for long‑distance pipeline valve groups
HIMA Product Comparison
| HIMatrix F35 (982200416) | Compact all‑in‑one safety controller with integrated DI/DO/AI and high‑speed counters, for small‑to‑medium I/O point distributed sites |
| HIMatrix F30 | 20DI+8DO, no analog input and no counter; low‑cost solution for pure digital small safety loops |
| HIMatrix F31 | 20DI+8DO with line monitoring; no analog input and counter; ideal for Cat.4 emergency‑stop scenarios with massive digital signals |
| HIMatrix F60 | Modular rack‑based system with freely selectable I/O modules; expandable for large‑scale I/O; larger cabinet footprint for medium‑to‑large SIS projects |
| HIMax | Large‑scale fault‑tolerant safety controller with multi‑rack redundancy; designed for thousand‑point large‑plant SIS with higher investment |
Compatible Accessories & Related Products
- Z7301 Shunt Adapter 250Ω; Z7302 Shunt Adapter 500Ω; Z7308 Shunt Adapter
- F1 DI16 01 Remote Digital Input Module
- F2 DO16 01 Remote Digital Output Module
- F3 DIO 8/8 01 Remote Mixed I/O Module
- SILworX Engineering Software; ELOP II Factory Engineering Software
FAQ
Q: Which programming software is compatible with HIMatrix F35 part‑number 982200416?
A: 982200416 is the ELOP II Factory version with firmware older than V7. The SILworX‑compatible part number is 982200473. Project files from these two software versions cannot be opened interchangeably.
Q: Can HIMatrix F35 work as a remote I/O node?
A: Yes. HIMatrix F35 is a full‑featured controller. It can be configured within engineering software to operate as a distributed remote node connected to HIMatrix or HIMax main controller systems.
Q: How to realize 4‑20 mA signal acquisition via HIMatrix F35 analog channels?
A: External shunt adapter Z7301 or Z7302 is required. Hardware manual shall be consulted for correct shunt resistance parameters, and FS1000 or FS2000 resolution mode shall be selected in software.
Q: What are the core differences among F35‑01, F35‑011 and F35‑012 variants?
A: F35‑01 (982200416): standard version, operating temperature 0‑60 °C; F35‑011: ‑20~60 °C low‑temperature version with conformal coated PCB; F35‑012: Subsea version with V2A stainless‑steel housing complying with ISO13628‑6 Subsea standard.
Q: Does HIMatrix F35 counter support absolute Gray‑code encoders?
A: Yes. Enable the Gray‑code system variable for the 2 built‑in counters to directly read position values from 3‑bit Gray‑code encoders.
Q: Will program and configuration get lost after power failure? Is battery required?
A: Control logic and hardware configurations are stored in non‑volatile Flash memory. Hardware clock is sustained by supercapacitor for about one week; no external battery is needed.
Q: Why do DO4 and DO8 deliver higher current than other digital output channels?
A: DO4 and DO8 are enhanced output channels. Max.output reaches 2A at 50 °C ambient temperature and de‑rates to 1A at 60 °C. Remaining channels are rated at max.0.5A. Load selection shall refer to official hardware manual.
Q: Are terminal connectors included when ordering HIMatrix F35 982200416?
A: Screw terminal connectors are NOT included in standard delivery and must be ordered separately. Improper connectors will cause hardware damage.
Recommended HIMatrix Models
- HIMatrix F30 01 Compact Safety Controller
- HIMatrix F31 01 Compact Safety Controller
- HIMatrix F35 011 Low‑Temperature Safety Controller
- HIMatrix F35 012 Subsea Safety Controller
- HIMatrix F20 01 Compact Safety Controller
- HIMatrix F60 CPU03 Modular Safety Controller CPU
- HIMatrix F1 DI16 01 Remote Digital Input Module
- HIMatrix F2 DO16 01 Remote Digital Output Module
- HIMatrix F3 DIO 8/8 01 Remote Mixed I/O Module
- HIMatrix F3 AIO8/4 01 Remote Analog I/O Module
- HIMatrix F2 DO16 02 Relay‑Output Remote Module
- HIMatrix F60 GEH01 Modular Controller Chassis
Important Notes
- HIMatrix F35 982200416 follows de‑energize‑to‑trip safety philosophy; outputs will automatically switch to safe de‑energized state upon fault occurrence. Process logic design must comply with this safety principle.
- Shielded twisted‑pair cables shall be used for analog input wiring; maximum cable length: 300 m. Max.cable length for counter signals: 500 m. Cable shield is recommended to single‑end connect to controller housing.
- For Zone2 hazardous‑area installation, the controller must be mounted inside enclosure with IP54 or higher protection rating; power supply circuit shall be fitted with 10A time‑delay type T fuse.
- Before executing reset operation, disconnect all D‑Sub fieldbus connectors to avoid interference with other bus stations. Perform reset: hold reset pin while powering on device under power‑off status for minimum 20 seconds.
- Proof‑test shall be performed every 10 years; analog input channels are suggested to be recalibrated every 10 years.
- No on‑site component repair is allowed. Replace complete unit with identical part number upon hardware failure.
- Firmware version of HIMatrix F35 must match corresponding engineering software. Program download across mismatched firmware versions will trigger errors.
