HIMA F3 DIO 8/8 01 982200425 Controller HIMatrix F3DIO8/801

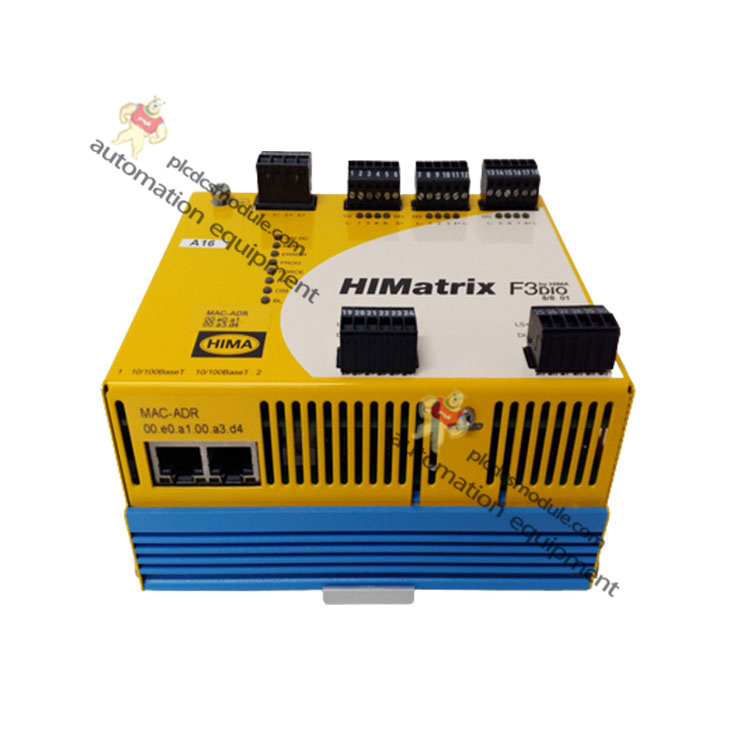

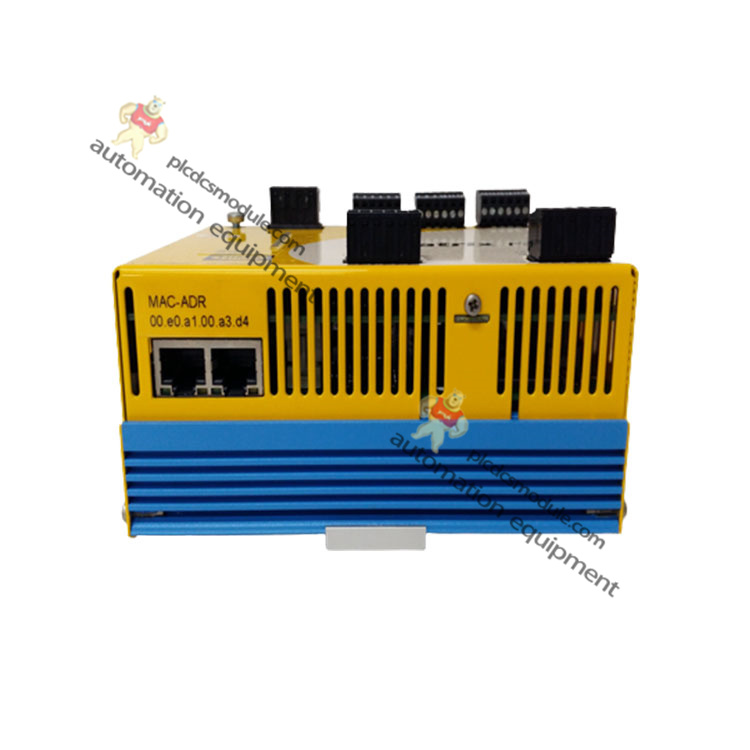

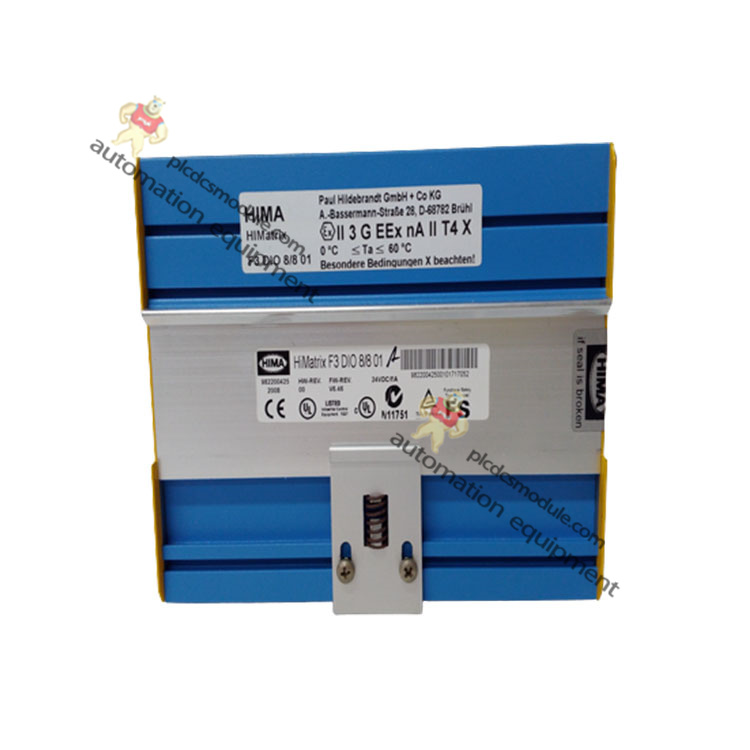

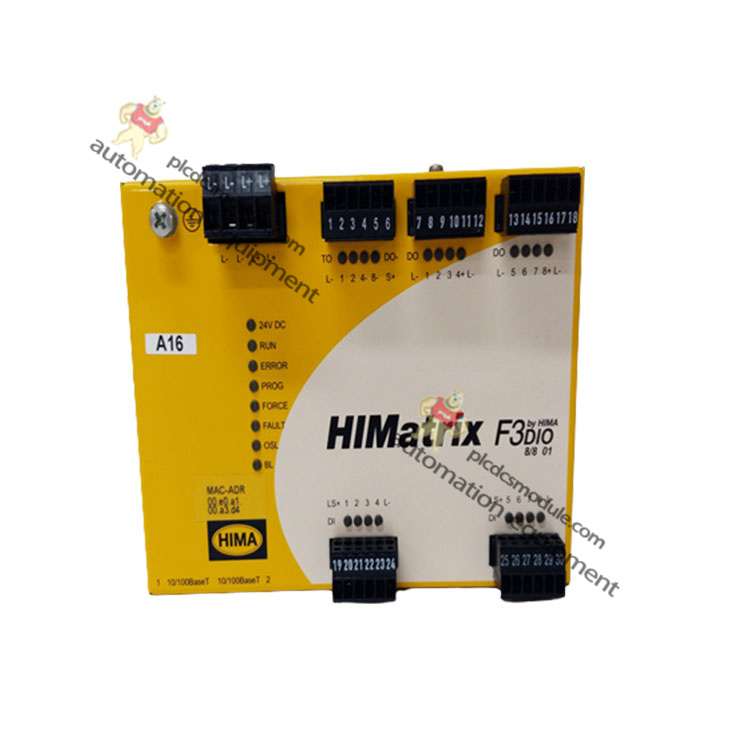

The safety-related F3 DIO 8/8 01 remote I/O is a compact system in a metal housing with 8 digital inputs, 8 digital DO+ outputs (L- ground), 2 digital DO- outputs (S+ ground) and 2
pulsed outputs. The digital outputs DO4+, DO8+, DO4- and DO8- can also be connected as
2-pole connections.
HIMA F3 DIO 8/8 01 982200425 Controller
The remote I/O is equipped with safety-related digital inputs and outputs. The input values on the inputs are safely transmitted to the connected controller via safeethernet. The outputs are safely assigned their values by the connected controller via safeethernet.
In the Hardware Editor, the remote I/Os are represented like a base plate equipped with the
following modules:
Processor module (CPU)
Input module (DI 8 LC) with Line Control
Output module (DO 2 02)
Output module (DO 2 01)
