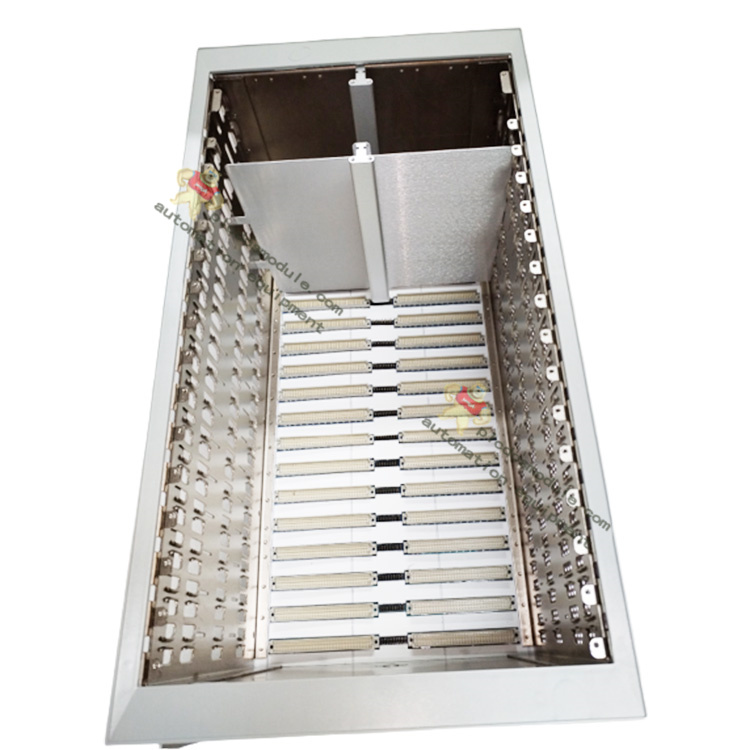

GE/Bentley Nevada 3500/05-01-01-00-00-01 System Rack
Part number: 3500/05-01-01-00-00-01
Manufacturer:GE/Bentley Nevada
Product Description:System Rack
3500/05-01-01-00-00-01 (rack) model
3500 racks are available in two sizes:
Full-size rack with 14 available module slots in a 19-inch EIA rack
Mini-rack: 12-inch rack with 7 available module slots.
Three types of 3500 racks are produced:
Panel Mount
The rack comes with a clip that secures this rack type to a rectangular cutout in the panel. Cabling connections and I/O modules are provided at the rear of the rack.
Rack Type
The 3500 rack is mounted on 19" EIA rails using this rack configuration. Wiring connections and I/O modules are provided at the rear of the rack.
Bulkhead Mounting
This rack style rests the rack against a wall or panel when the back of the rack is not accessible. Wiring connections and I/O modules are provided at the front of the rack. 3500/05 Mini-Rack is not available in this format.
Features
Rack size: 01 = 19" rack (14 module slots)
Dimensions (LxWxH): 15.25cm x 11.5cm x 13cm
Rack size: 19" (14 module slots)
Mounting options: Panel mount (full size rack)
Accommodates all 3500 monitor modules and rack power
Manufactured in two sizes: full-size rack and mini-rack
Manufactured in 3 forms: panel mount, rack mount and bulkhead mount
7 or 14 shelf locations
WOC supports many Bently Nevada parts, including 3500/05-01-01-01-01-00-00.
