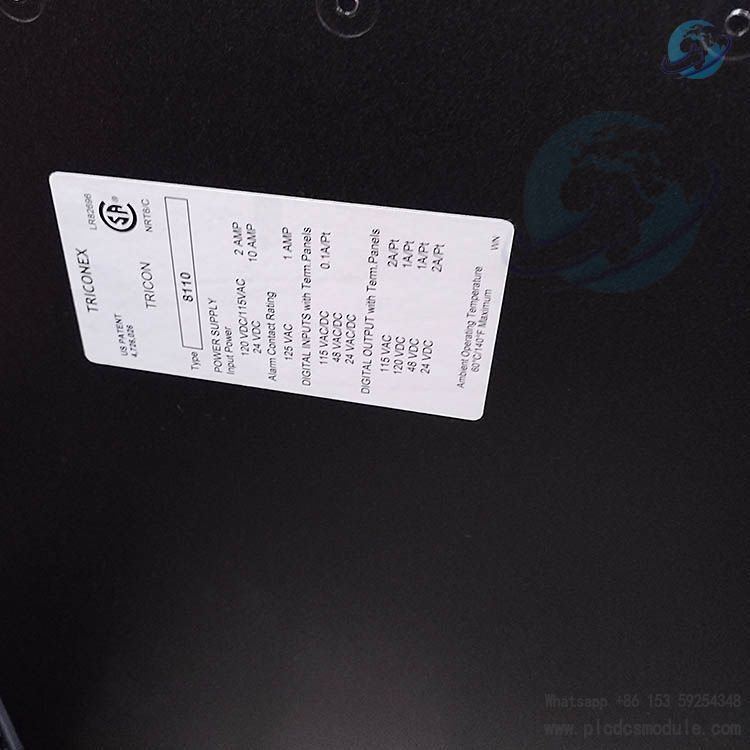

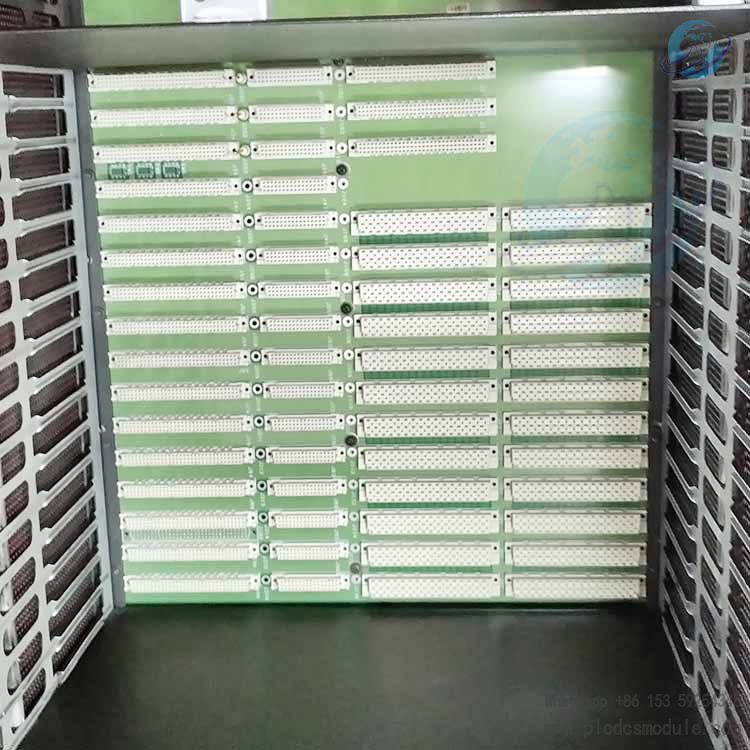

Tricon 8110 High Density Main Chassis Triconex8110.Triconex 8110 is an Main Chassis manufactured by Invensys Triconex . It is used in safety-critical applications such as oil and gas, power generation, and chemical manufacturing to provide reliable and secure control of industrial processes. The 8110 model provides additional I/O slots for a Triconex safety controller. It is a 19-inch rack-mountable chassis with a capacity of up to 10 I/O modules.A Tricon Main Chassis (model 8110) includes two Power Modules, three Main Processors, a battery, one communication (COM) slot with no hot-spare slot, and six logical slots for I/O and communication modules. Each logical slot provides two physical spaces for modules.
data sheet
Tricon™ v9–v11 Systems - Planning and Installation Guide.pdf
Planning and Installation Guide for Tricon v9–v10 Systems.pdf
To use the Triconex 8110 Main Chassis, you will need a Triconex safety controller as the main module. The Triconex controller supports a wide range of I/O modules, including analog input/output, digital input/output, and specialty modules. Once the controller is installed in the system, the 8110 chassis can be connected to it via a backplane cable .
Here are some steps to install and configure a Triconex 8110 Main Chassis:
Install the Triconex safety controller as the main module in the system.
Mount the 8110 Main Chassis in a 19-inch rack and connect it to the controller via a backplane cable.
Install the required I/O modules in the 8110 Main Chassis based on the application requirements.
Configure the I/O modules and map the input/output signals to the corresponding application functions in the Triconex controller software.
Test the system to ensure that the I/O signals are being correctly processed and that the safety functions are working as intended.
