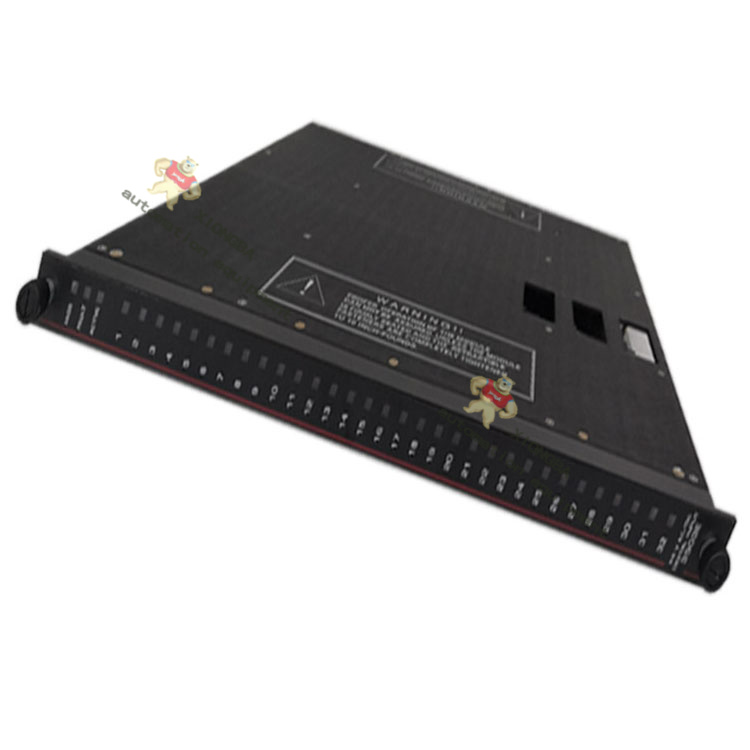

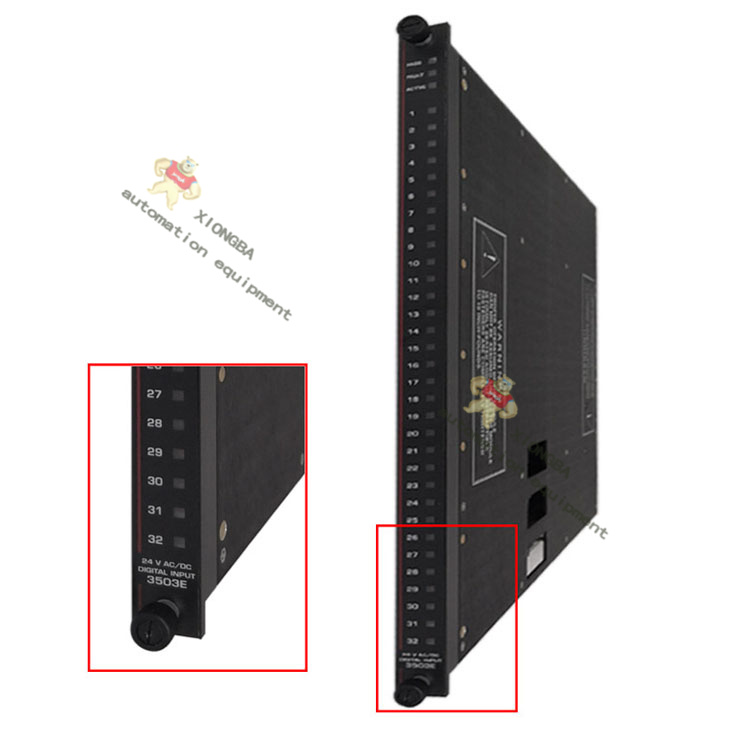

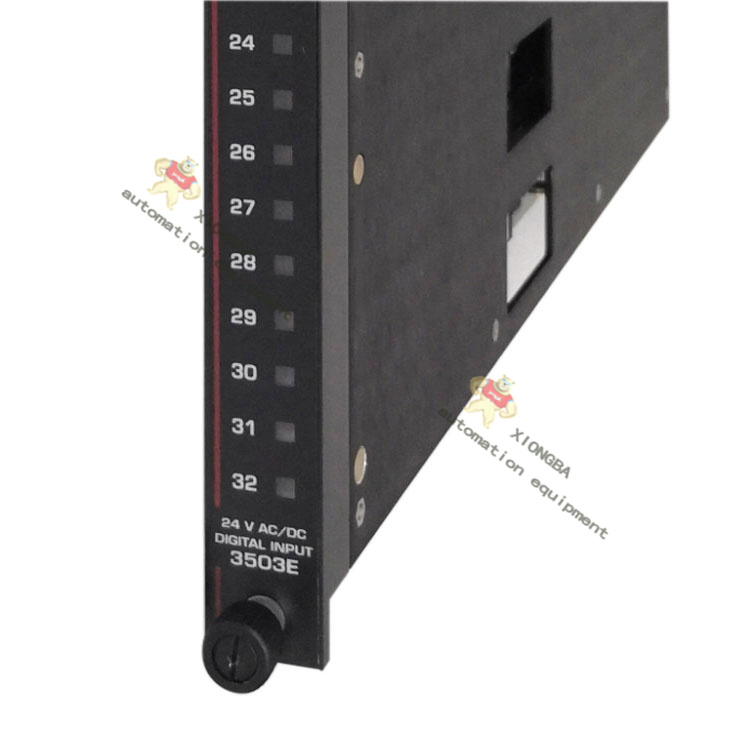

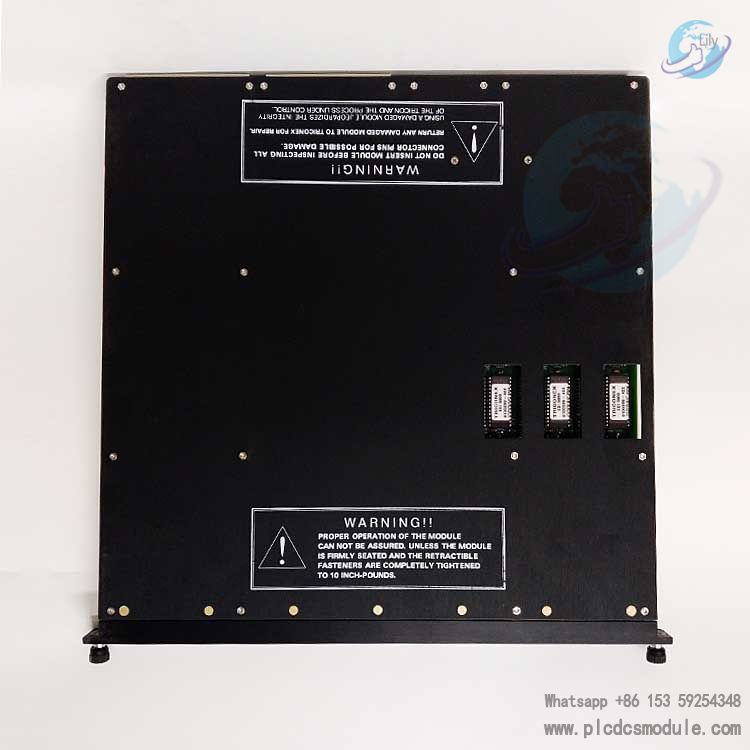

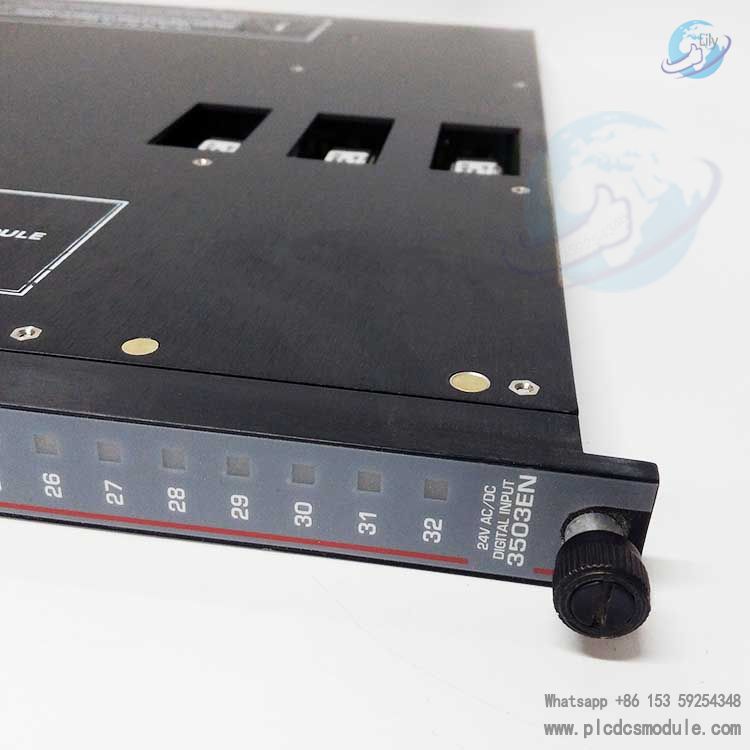

The TRICONEX 3503EN is a high-integrity digital input module designed for safety-critical applications in industrial automation. Engineered with TMR (Triple Modular Redundancy) technology, it ensures 99.999% availability by voting between three independent channels to reject single-point failures. Each module supports 16 channels of dry contact or NAMUR inputs, compatible with 24V DC signals, and features configurable filtering to eliminate electrical noise. With a response time under 10ms, it enables rapid fault detection in emergency shutdown systems (ESD), burner management, and turbine control. Certified to IEC 61508 SIL 3 and ISO 13849 PL e standards, the 3503EN seamlessly integrates into TRICONEX safety systems via redundant communication links, providing fail-safe operation in harsh industrial environments.
Main Features of TRICONEX 3503EN Digital Input Module
Digital Input Function：The TRICONEX 3503EN monitors digital/switch signals (e.g., switch status, button states, sensor feedback) to accurately acquire equipment operation status data.
Multi-channel Design：Equipped with multiple input channels, it supports simultaneous monitoring of multiple signal sources, enhancing system monitoring capability for centralized status tracking in complex industrial scenarios.
Communication Interface：Connected to PLC/DCS or other control devices via adapters/buses for data transmission, enabling seamless integration into automation systems for centralized control and management.
Wide Industrial Application：Widely used in equipment status monitoring, safety systems, fault detection, alarm triggering, and event logging, improving system reliability and operational efficiency.
Additional Specifications：Features include a deep red color code, 9.5kg weight, and 10.5kg load-bearing capacity, aiding users in installation and operation.
Technical Parameters
Input Signal Type: Primarily switch signals, compatible with outputs from various switches, sensors, and other devices.
Input Voltage Range: Adaptable to common industrial voltage levels, typically including 24V DC, 48V DC, etc., with specific values varying by model and configuration.
Channel Quantity: Available in 16-channel or 32-channel configurations to meet monitoring needs of different scales.
Signal Isolation: Equipped with electrical isolation (isolation voltage up to thousands of volts) to prevent external electrical interference, ensuring stable and accurate signal transmission.
Response Time: Fast response (in milliseconds) for timely capture of input signal changes and rapid transmission to the control system.
Application Scenarios
Petrochemical Industry: Monitors operational status signals of pumps, valves, compressors, and switch signals in safety interlock systems to ensure safe and stable production.
Power Industry: Acquires status signals from generators, transformers, and switchgear for power system monitoring and fault diagnosis, assisting maintenance personnel in detecting anomalies.
Metallurgical Industry: Monitors equipment status and limit switch signals in blast furnaces, converters, continuous casters, etc., enabling automated production control and fault early warning.
Pharmaceutical Industry: Supervises operational status of production line equipment (mixers, filling machines, packaging machines, etc.) to ensure compliance and quality stability in drug manufacturing.
