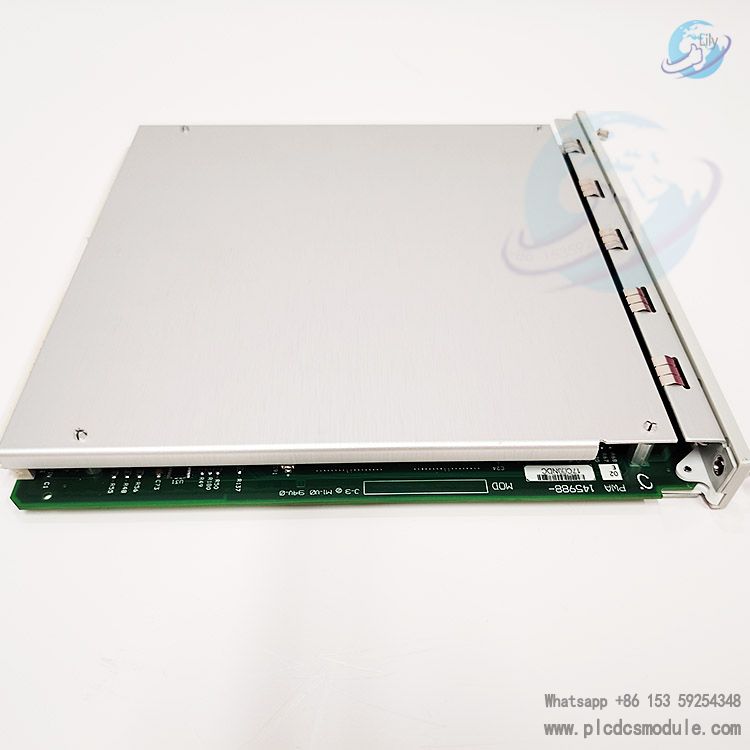

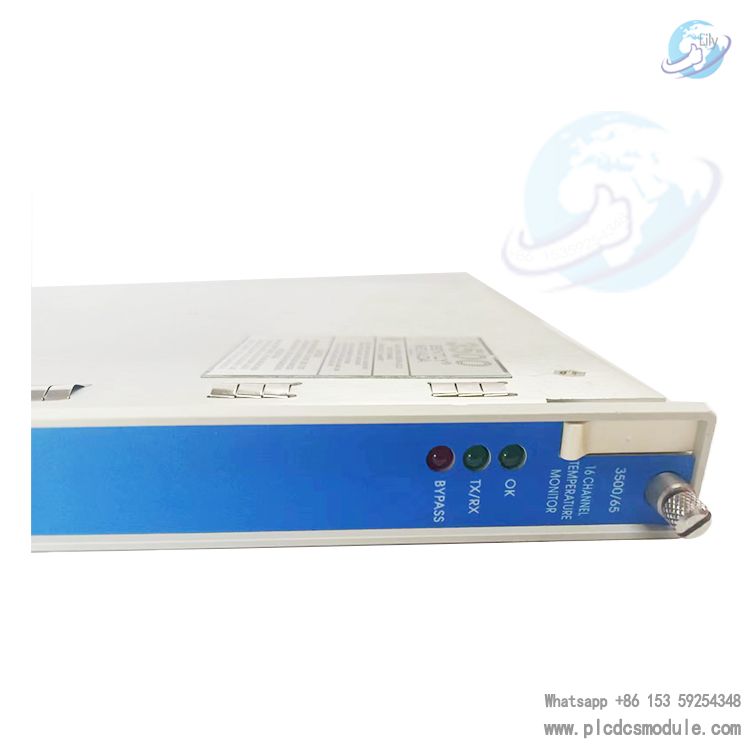

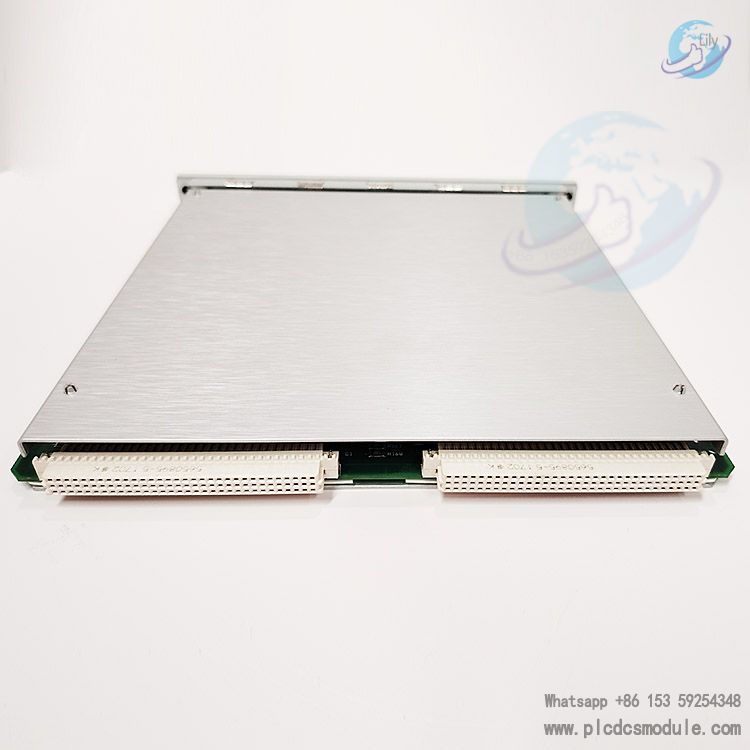

Bently 3500/65 16-channel Temperature Monitor

The Bently 3500/65 is a 16-Channel Temperature Monitor that forms part of the 3500 Series Machinery Monitoring System. This system provides continuous, online monitoring suitable for machinery protection and asset condition monitoring applications.

The 3500/65 monitor is designed to process signals from both resistance temperature detectors (RTDs) and thermocouples (TCs). It is capable of monitoring temperature or temperature differentials and is typically used for radial bearing or thrust bearing metal temperature in accordance with API670. It can also be used for key process temperatures such as compressor suction and discharge temperatures, steam temperature, motor stator temperatures, among others.

The monitor conditions these inputs and compares the conditioned signals with user-programmable setpoints that can drive alarms and relay logic in the 3500 relay modules. The 3500/65 accepts isolated tip thermocouples, 3-wire RTD, 4-wire RTD, or a combination of isolated TC and RTD inputs.
