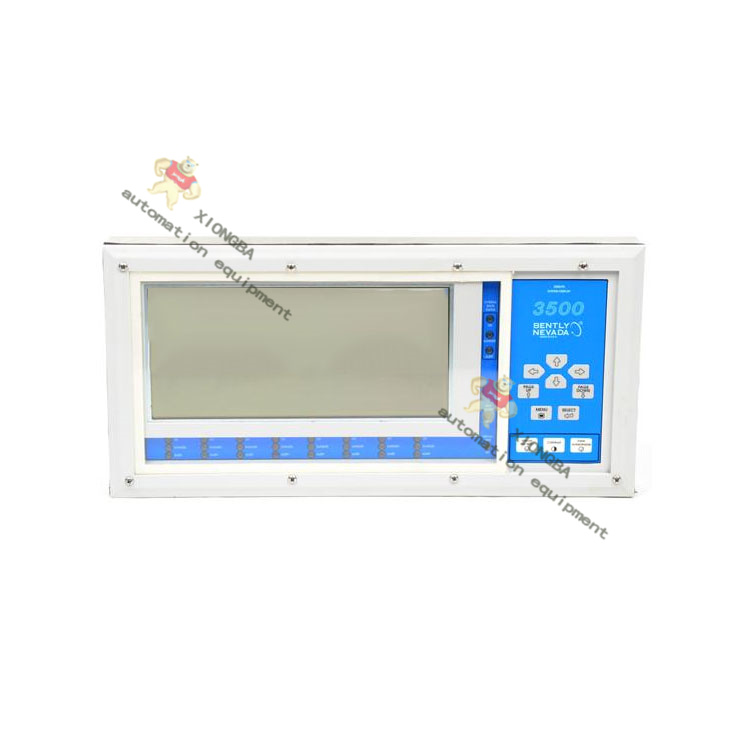

The Bently Nevada 3500/93 System Monitor is a comprehensive monitoring tool designed to comply with American Petroleum Institute (API) Standard 670.It provides local and remote visual indication of all 3500 Machinery Protection System information stored in the rack. This includes a list of system events, a list of alarm events, and data from all channels, monitors, relay modules, key phase modules, or tachometer module inputs. The monitor can be configured using the 3500 Rack Configuration Software and offers a variety of mounting options to meet different installation needs.
Dimensions and Weight:
Display Interface Module: 241.3 mm x 24.4 mm x 241.8 mm, 0.82 kg.
Interface I/O Module: 241.3 mm x 24.4 mm x 99.1 mm, 0.38 kg.
Display Unit: 203.2 mm x 412.8 mm x 31.2 mm, 2.1 kg.
Local or Remote Visual Indication of 3500 Machinery Protection System，(4) Display Mounting Types，Up to (2) Displays per 3500 Rack.The GE / Bently Nevada 3500/93 Series System Display is designed to meet the requirements of American Petroleum Institute Standard 670 and provide local or remote visual indication of all 3500 Machinery Protection System information residing in the rack including: system event list, alarm event lists and all channel, monitor, relay module, Keyphasor module or Tachometer Module data.
To learn more about this product click on the file below or download the file:
Bently Nevada 3500-93 System Display.pdf
The 3500/93 System Display is configured using 3500 Rack Configuration Software. The display can be mounted in any of four ways: face mounting, 19-inch EIA rack mounting, panel mounting, and independent mounting.
Up to two displays can be connected to each 3500 rack and each display requires one empty 3500 rack slot for insertion of its corresponding DIM. When the display is not face-mounted, the cable connection between the DIM and the Display can be made from the front of the 3500 rack or from the I/O module at the rear of the rack.
