BENTLY 3500/91M 190782-01 EGD Communication Gateway Module.The 3500/91M EGD (Ethernet Global Data) Communication Gatewaymodules provides comprehensive communication capabilities of 3500rack-monitored values and status. This Ethernet network pathprovides information with response times suitable for controllerapplications. Using the 3500/91M EGD Gateway provides forintegration with EGD protocol compatible controllers (e.g. GE Mark*VIe controllers, etc).Supported protocols include: l EGD (version 2.01) l Ethernet UDP/IP The Ethernet standards supported by the 3500/91M I/O module is IEEE802.3 for 10BASE-T and 100BASE-TX (twisted pair).
To learn more about this product click on the file below or download the file:
3500-91M EGD Communication Gateway Module.pdf
Key specifications and features of the 3500/91M 190782-01 EGD Communication Gateway Module include:
Protocols Supported: EGD (version 2.01) and Ethernet UDP/IP.
Ethernet Standards: IEEE802.3 for 10BASE-T and 100BASE-TX (twisted pair), supporting both copper and fiber optic connections.
Operating Temperature Range: -22 to 150°F (-30 to 65°C).
Rack Space Requirements: The main module occupies 1 full-height front slot, with I/O modules utilizing 1 full-height rear slot.
Ordering Considerations:
Version 3.70 or higher of 3500 Rack Configuration Software is required.
The 3500/91M EGD requires a 3500/22M TDI to communicate with monitor modules.
Only 1 EGD per rack is allowed.
Version 1.20 or higher of TDI (3500/22M) firmware is required.
For consumed exchange support, version 2.21 or higher of 4-Channel firmware is required.

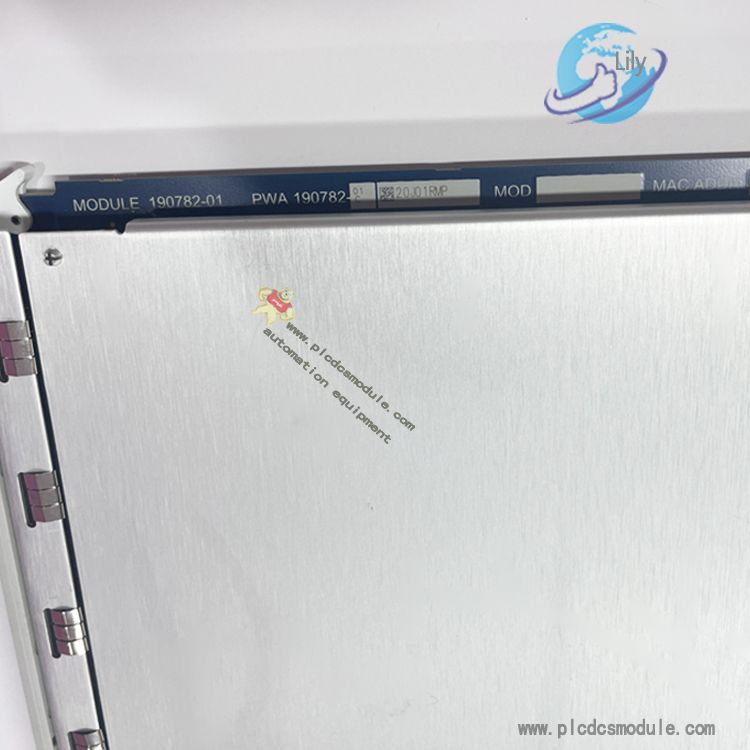

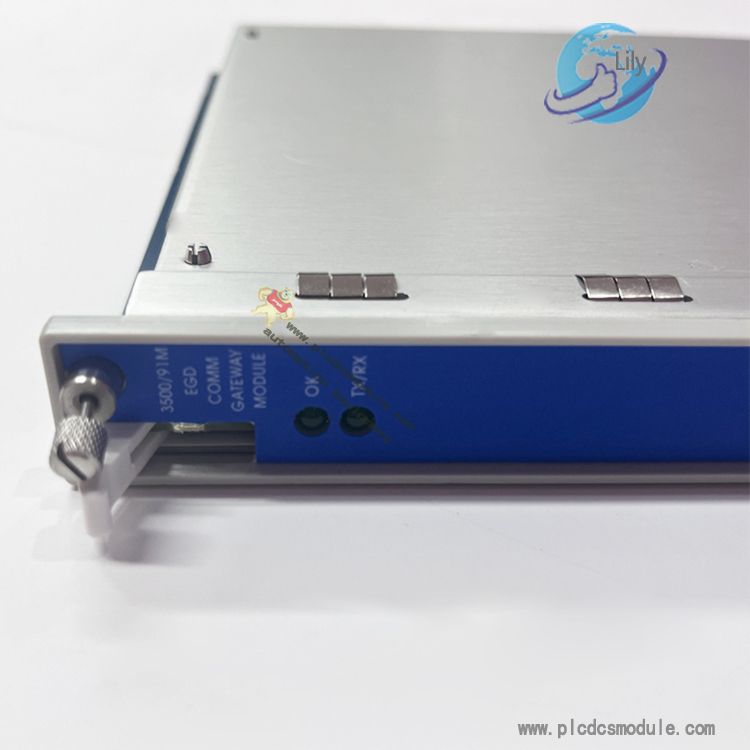

BENTLY 3500/91M 190782-01 EGD Communication Gateway Module
