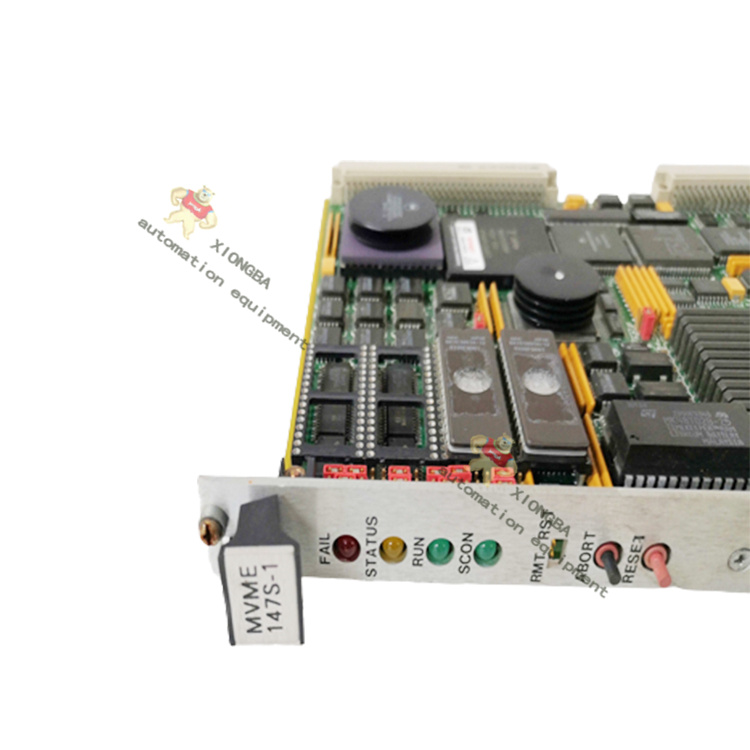

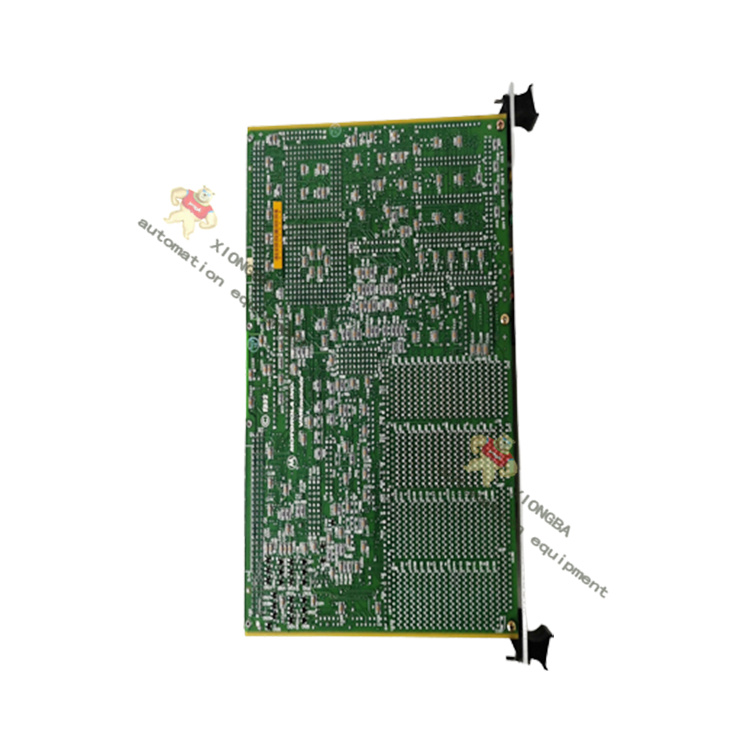

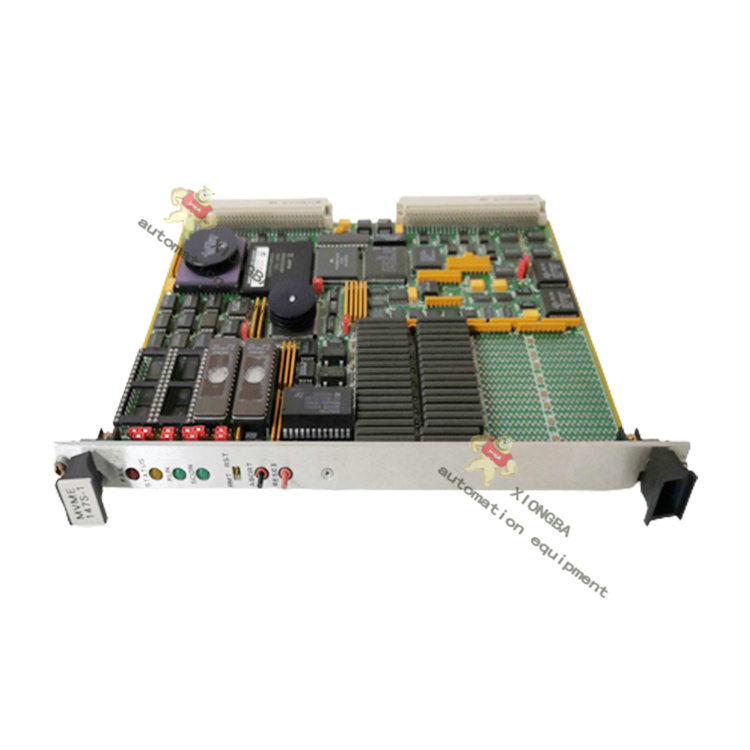

The Motorola MVME147S-1 MPU VME Module is a dual-height VME module that is designed for 32-bit VMEbus systems with P1 and P2 backplanes. It is a powerful module with various features such as a large onboard shared RAM, serial port, Centronics printer port, SCSI bus controller with DMA, floating point coprocessor, beat timer, watch dog timer, clock/calendar with spare battery, 2KB static RAM with spare battery, and four ROM slots. It also provides a VMEbus interface with system controller function. The module can be used as part of a VMEbus system with other VME modules like RAM modules, CPU modules, graphics modules, and analog I/O modules.
Configuration:
• 25 MHz Clock Speed
• 4 MB RAM
• Timekeeper RAM Installed
• Parity and Ethernet
• (2) EEPROM Chips Installed
Part Number: 01-W3781B 02B, 01-W3577B 01C, 01-W3577B 02D, 01-W3577B 02E, 01-W3577B 02G, 01-W3577B 02H, 01-W35778 02D, 01-W3648B 02A, 01-W3648B 02D, 01-W3577B 01E,It is a dual-height VME module.
Suitable for 32-bit VMEbus systems with P1 and P2 backplanes.
Features large onboard shared RAM, serial port, Centronics printer port, SCSI bus controller with DMA, floating point coprocessor, beat timer, watch dog timer, clock/calendar with spare battery, 2KB static RAM with spare battery, and four ROM slots.
Provides VMEbus interface with system controller function.
Can be used in conjunction with other VME modules such as RAM modules, CPU modules, graphics modules, and analog I/O modules.
