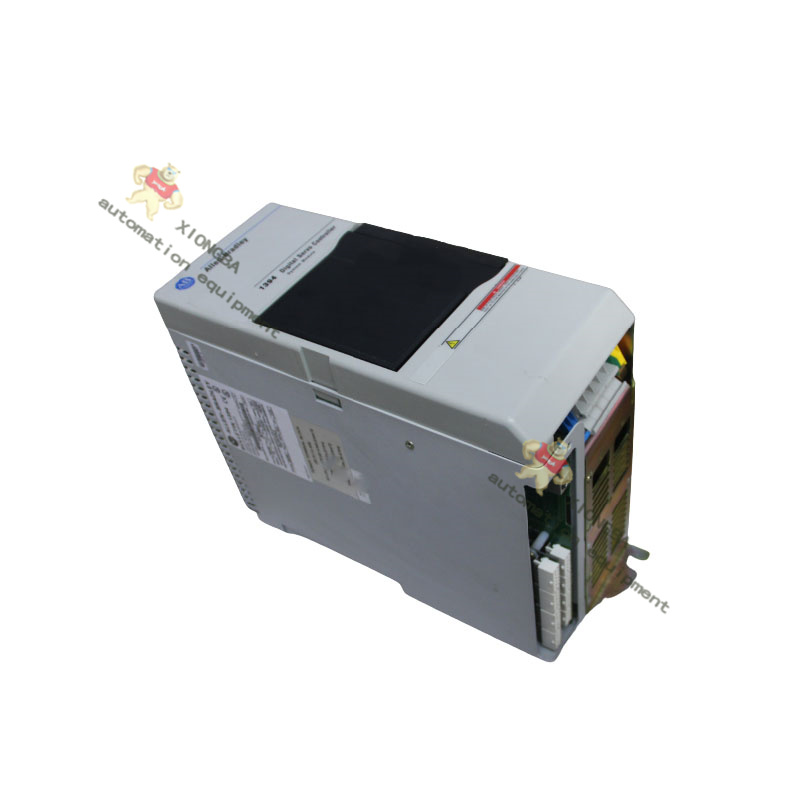

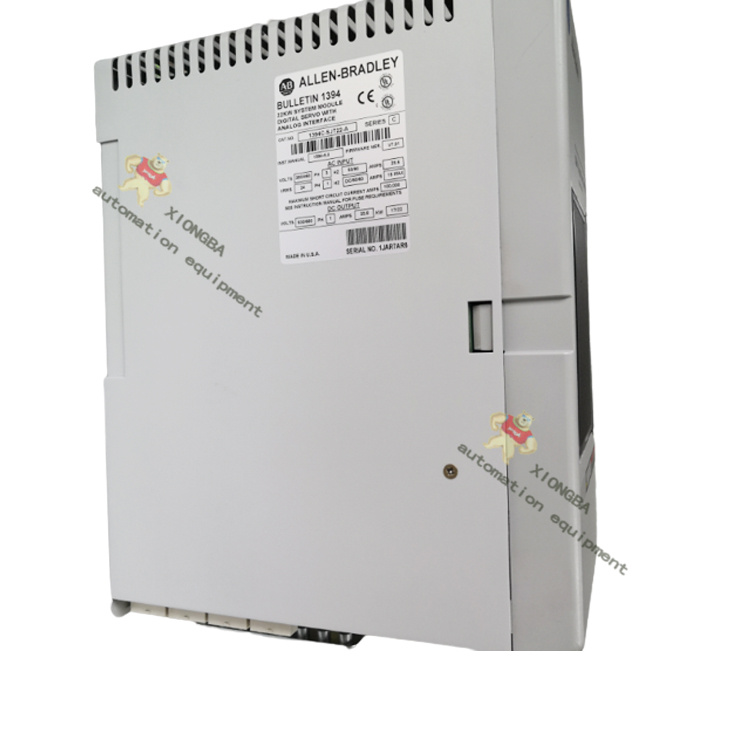

A-B  1394C-SJT22-A  Servo Controllers

1394C-SJT22-A Description：

The 1394C-SJT22-A is an Allen-Bradley servo controller with analog module capability and a ±10 volt DC analog interface. It is a C-Series system module with intelligent power supply, EMI filtering and improved termination. 1394C-SJT22-A system supports up to four axes and can be used as a speed or torque controller. It comes with Bulletin 1201 HMI module, allowing for automatic adjustment and quick start-up. This 1394C-SJT22-A also has a SCANport interface, a continuous output current of 33.8 amps at DC voltage, a continuous output power of 22 kW, and a three-phase power supply. 1394C-SJT22-A has power inputs such as 24 1394C-SJT22-Avolt AC power, a disconnect function, a fuse box, and 24 volt DC power for motor brakes and thermal contacts.

                                       A-B  1394C-SJT22-A  Servo Controllers

                                       A-B  1394C-SJT22-A  Servo Controllers

The 1394C-SJT22-A operates at 324 to 528 volts AC, 50 to 60 Hz and 98% efficiency. 1394C-SJT22-A has a capacitance of 660 µF and an inductance of 500 µH and requires an external shunt module. 1394C-SJT22-A has diagnostic functions including a current monitor, thermal overload detection and feedback signal monitor. It also features status LEDs for the system and axis modules. electrical noise protection and improved grounding terminals are also included.

Related products：
