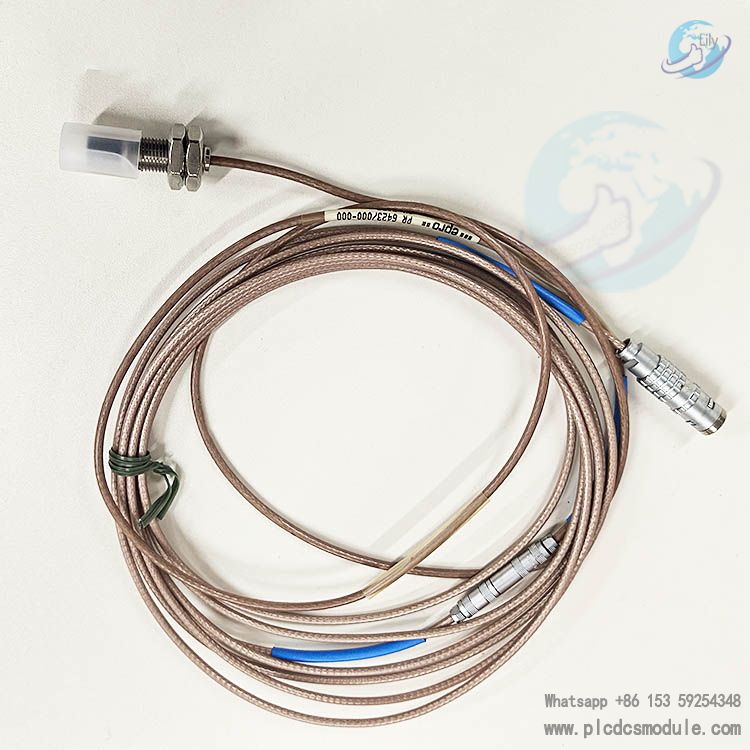

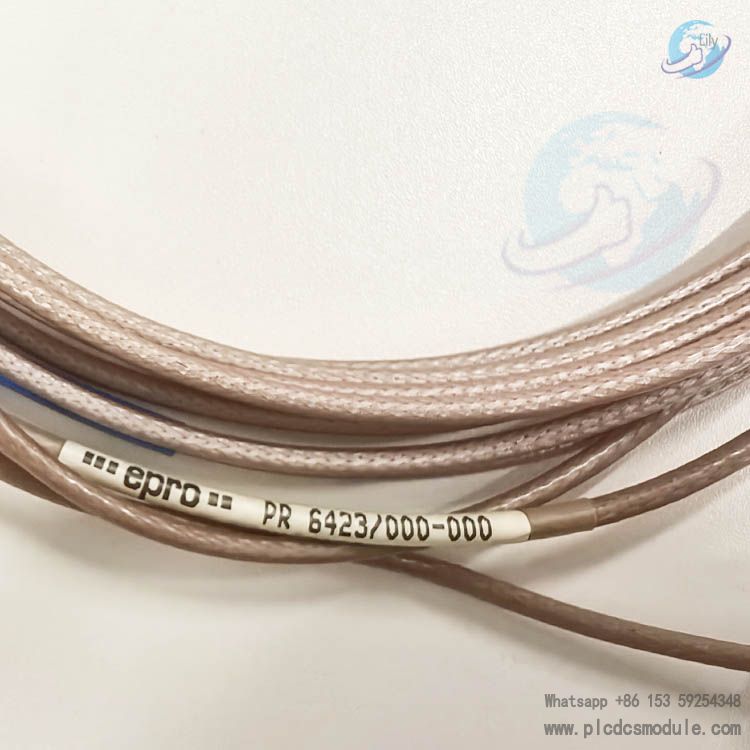

EPRO PR 6423/000-000 8mm Eddy Current Displacement Transducer.The EPRO PR 6423/000-000 8mmEddy Current Displacement Transducer needs to be used in conjunction with the MMS3311/010-000 9100-03081 Speed and Key Transmitter. EPRO's PR 6423/000-000 is an 8mm non-contact eddy current displacement sensor, specifically designed for critical turbomachinery applications such as steam turbines, gas turbines, etc. It can measure both static and dynamic displacements of shafts. It complies with multiple international standards and can be used in hazardous areas. Its measurement range is ±1.0mm for static displacement and 0-500μm for dynamic displacement, with a sensitivity of 8V/mm. The sensor is made of stainless steel and has different thread specifications, cable lengths, and connection methods. It can be paired with a variety of converters, offers multiple ordering options, and optional accessories include mounting brackets, armored cables, etc.
It is used to measure the position or movement of the shaft and is suitable for critical turbomachinery such as steam turbines, gas turbines, and compressors. By installing it at the bearing, the movement and position of the shaft can be measured directly, making up for the shortcomings of using casing vibration sensors for monitoring in sleeve - bearing machines.
data sheet：
EPRO PR 6423 8mm Eddy Current Displacement Transducer.pdf
Technical Parameters:
Measuring Range: Static: ±1.0mm (.04in); Dynamic: 0-500μm (0-20mil), most suitable for 50-500μm (2-20mil)
Sensitivity: 8V/mm
Target: Electrically Conducting Steel Cylindrical Shaft
Measuring Error: < ±1% linearity error after calibration
Temperature Error: Zero point: 200mV/100˚K; Sensitivity: < 2%/100˚K
Long - term Drift: Max. 0.3%
Influence of Supply Voltage: < 20mV/V
Operating Temperature Range: -35 to +180˚C (-31 to 356˚F), and it can reach +200˚C (392˚F) for a short term (up to 5 hours)
Storage Temperature Range: -40 to +70˚C (-40˚ to 158˚F)
Sensor Thread: M10x1 or 3/8” – 24 – UNF – 2A
Sensor Material: Stainless Steel
Pressure Limit: 2 bar for both the sensor and the cable
Nominal Values of Vibration and Shock: 5g at 60Hz at 25˚C (77˚F)
Cable Length: 1m at the sensor, and 3m for the extension cable (varies by model)
Maximum Cable Temperature: +200˚C (392˚F)
Connection between Sensor and Converter: For CON 011 and CON 021, use Lemo plugs; for CON 041, use a blunt - cut cable to connect to screw terminals
Cable Protection: High - performance PTFE insulation
Weight: Net weight without armored cable is 0.1kg, and gross weight is 0.2kg; net weight with armored cable is 0.3kg, and gross weight is 0.5kg
