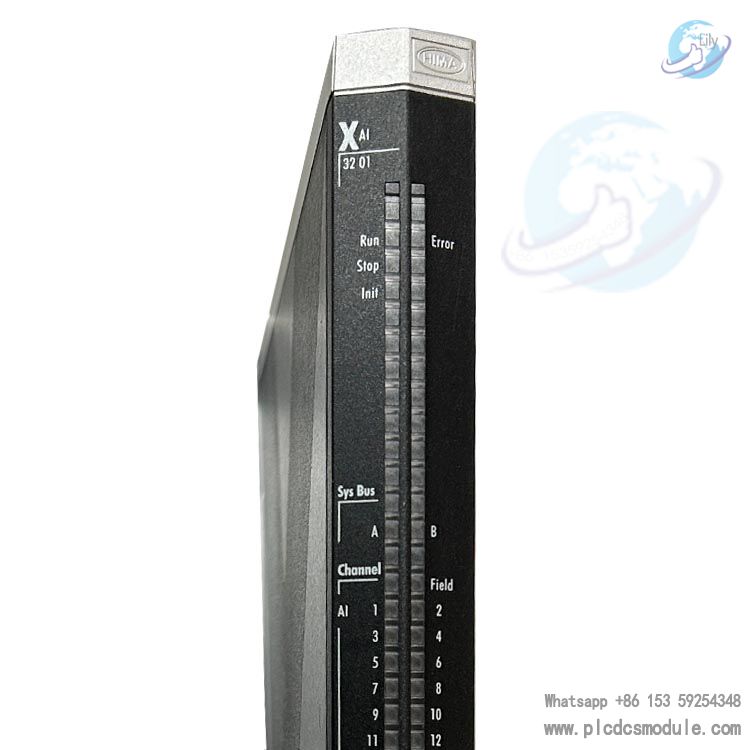

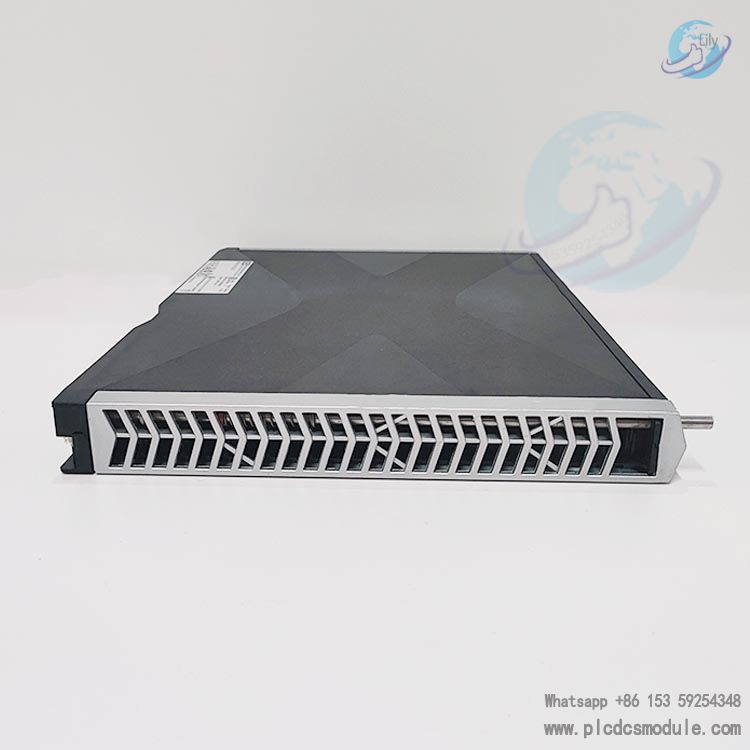

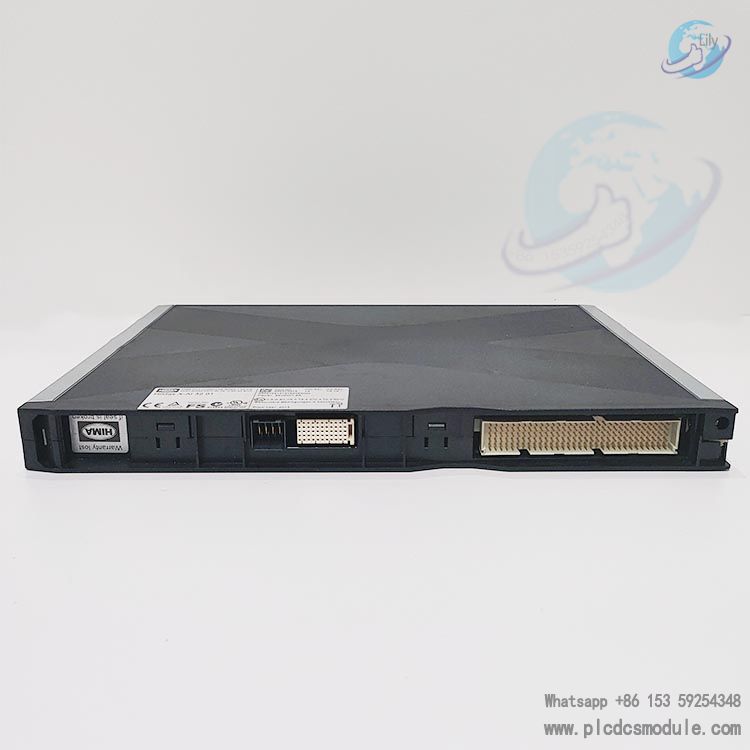

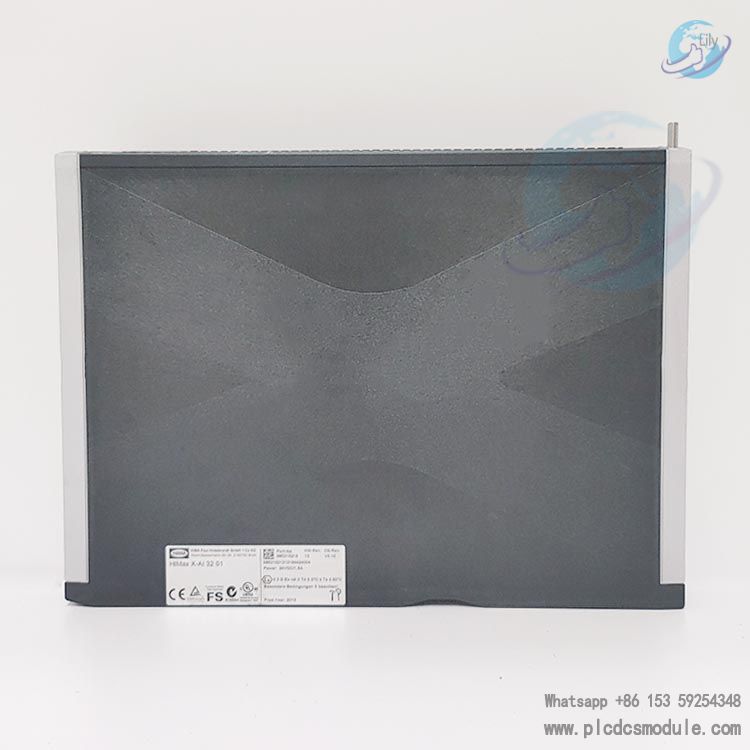

HIMA X-AI3201 985210213 Analog input module X-AI 32 01.The HIMA X-AI3201 985210213 is an analog input module designed for industrial automation applications.
General Parameters
Supply Voltage: 24VDC (with an allowable fluctuation range of -15% - +20%, ripple coefficient rP ≤ 5%, compliant with SELV and PELV standards).
Current Input Range: Minimum 500mA when there is no channel/transmitter supply, and maximum 1.5A when the transmitter supply is short - circuited. For each channel, the current input is minimum 0mA without a transmitter supply and minimum 30mA with a transmitter supply.
Operating Temperature: 0 - +60°C, Storage Temperature: -40 - +85°C.
Humidity: Maximum relative humidity of 95% (non - condensing).
Protection Type: IP20.
Dimensions (Height × Width × Depth): 310×29.2×230mm, Weight: approximately 1.4kg.
Analog Input Parameters
There are 32 input channels in total, with a common ground AI -, which is electrically isolated from the system bus and the 24VDC supply voltage.
Nominal Range: 0/4 - 20mA, Operating Range: 0 - 22.5mA.
Digital Resolution: 12 - bit.
The shunt used for current measurement is 200Ω, and the maximum allowable current through the shunt is 50mA.
Input Withstand Voltage: ≤10VDC.
Interference Voltage Suppression: > 60dB (common mode 50/60Hz).
The measurement value update is consistent with the cycle time of the user program, and the sampling time is 2ms.
The metrological accuracy within the full temperature range of -10°C - 70°C is ±0.15% of the final value. The settling time for the input signal to reach 99% of the process value is 15ms.
Transmitter Supply Parameters
There are 32 transmitter supplies.
Output Voltage: 26.5VDC (with an allowable deviation of +0/-15%), Output Current: maximum 30mA.
Monitoring Voltages: Under - voltage at 22.5VDC, Over - voltage at 30VDC.
A maximum of 12 transmitter supplies are allowed to be short - circuited simultaneously. If more than 12 supplies are short - circuited for more than 3 seconds, the entire transmitter supply will be turned off. If the overload disappears within 30 seconds, the transmitter supply will be turned on again.
The maximum connectable load (transmitter + line) is ≤750Ω at 22.5mA.
Country of Origin: Germany
Data sheet:
HIMA X-AI3201 analog input module.pdf
The X-AI3201 is used in the HIMax programmable electronic system (PES). It can evaluate up to 32 analog input signals and is suitable for safety - related applications, meeting the standards of SIL 3 (IEC 61508, IEC 61511, and IEC 62061), Category 4, and Performance Level e (EN ISO 13849 - 1).
The X-AI3201 must be installed on a suitable connector board. There are various types of connector boards, such as the X - CB 008 01 with screw terminals and the X-CB 008 03 with cable plugs. It is connected to the field area via system cables. There are different types of system cables, like the X - CA 005 and X - CA 009, each of which is compatible with specific connector boards.
