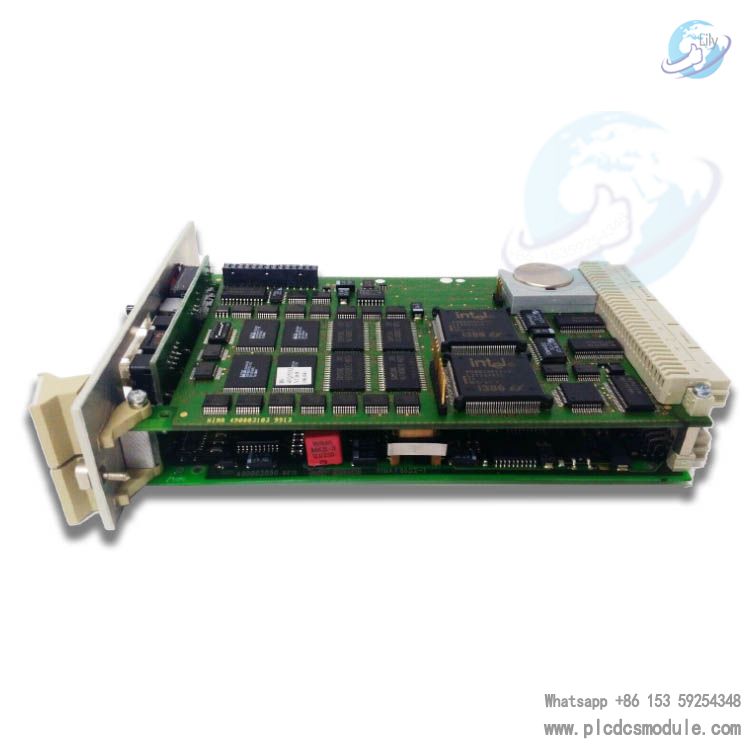

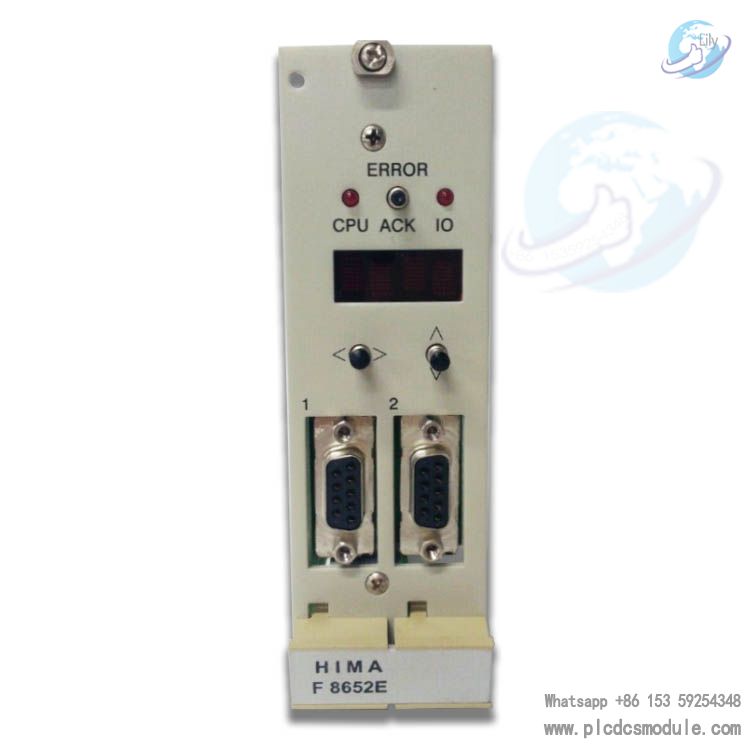

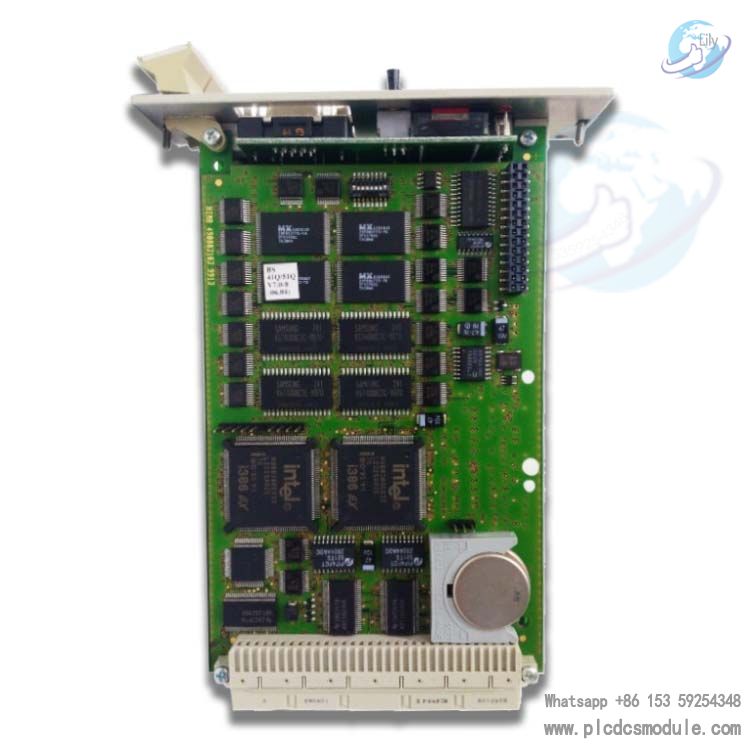

HIMA F8652E Central Module F 8652E CPU 984865264

HIMA F8652E  Central Module F 8652E CPU 984865264

The HIMA F8652E is a safety controller that is part of the HIQuad X programmable electronic safety system manufactured by HIMA . The F8652E is an important processor module in this system.

The F6251 by HIMA is a discontinued product  . The F6217 by HIMA is an 8-channel analog input module .

HIMA F8652E cards, redundant pair of cards in two different cages, hot-swappable replacement of cards, redundant cards running side by side

Common communication cards for Dark Horse Security System H41q/H51q:

F8621A-Co-processor module for MODBUS communication - 2 x 484 communication interfaces

F8627-Ethernet communication module for POC communication-RJ-12, RJ-45

F8628-Profibus-DP communication module-9-pole Min-D

Dark Horse Security Systems' H51q Series features a standard modular construction consisting of a 5-unit high 19-inch rack and up to 16 4-unit high 19-inch input/output subracks. The racks include units, interfaces, communication modules, monitoring and power modules.

Mainframe Racks

2 CU modules, up to 5 communication modules CM

3 power supply cards: 24Vdc/5Vdc

1 power supply monitoring card (F7131)

I/O racks include

Up to 4 power distribution modules

Up to 16 cards

Dark Horse Security System H41q/H51q - Features

The optional redundancy configuration allows for great flexibility in system design to meet different requirements.

The physical, completely separated redundant structure eliminates the potentially fatal risk of common part failure.

The redundancy of parallel operation avoids disturbances that may be caused by card switching, enabling true "hot swapping".

The low density of I/O modules further spreads the risk of card failure.

Intuitive programming, multiple integration and communication options.

In use since 1997 and constantly innovating in technology. The "quadruple" architecture model is used in almost all newly developed esd systems today.
