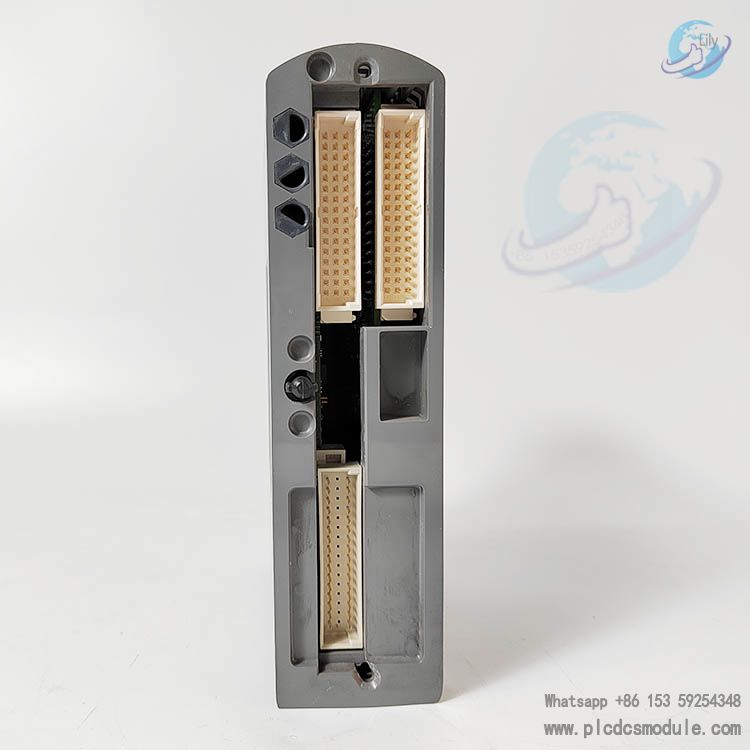

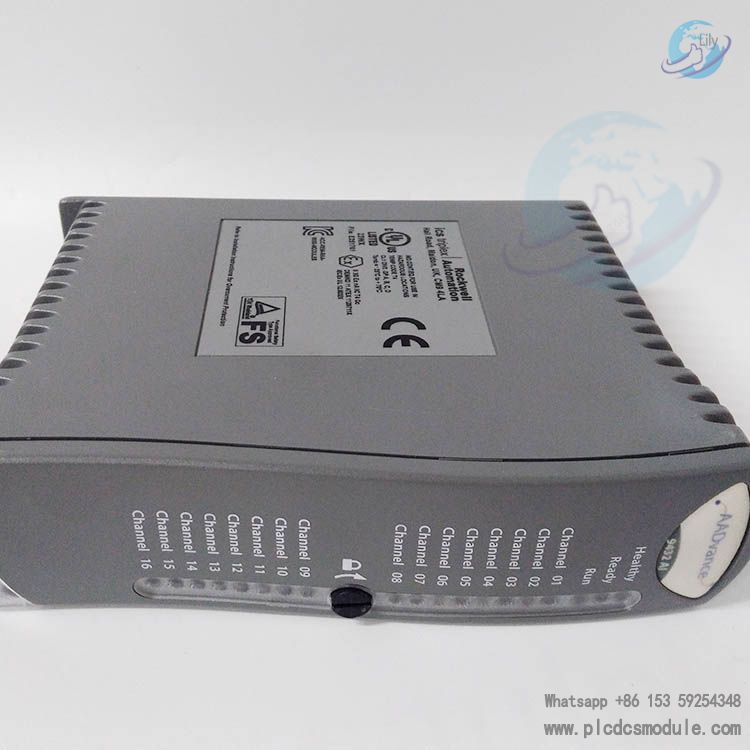

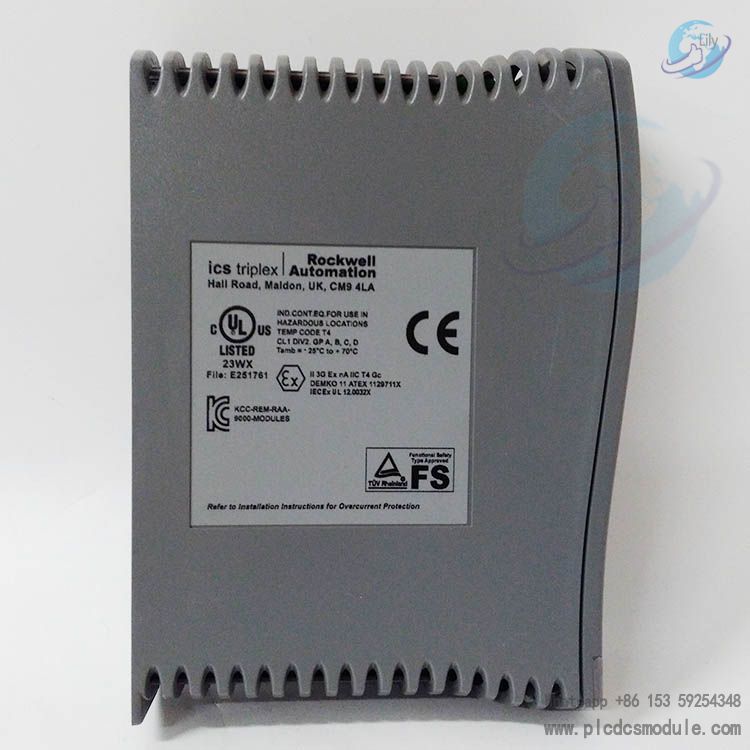

ICS TRIPLEX T9432 Analogue input module 16 channel AADvance Controller System.The ICS TRIPLEX T9432 analogue input module has the following important roles in the AADvance Controller System:
1.Signal Acquisition: The AADvance Controller System needs to monitor and control various analog quantities in industrial fields. The T9432 module provides 16 channels of analog input and can be connected to multiple analog signal sources, such as temperature sensors, pressure sensors, flow sensors, level sensors, etc. It can accurately collect the continuously changing analog signals output by these sensors, providing the system with the original data reflecting the status of the industrial process.
2.Analog-to-Digital Conversion: The analog signals in the industrial field cannot be directly processed by the controller. The T9432 module is equipped with a high-precision analog-to-digital converter, usually with a 16-bit resolution. It can precisely convert the analog signals within the range of -10V to +10V collected into digital signals. These digital signals can be recognized and processed by devices such as controllers and processors in the AADvance Controller System, acting as a bridge between the analog world and the digital control system.
3.Data Transmission: The T9432 module transmits the converted digital signals to other components in the AADvance Controller System, such as controller modules and processor modules, through the RS-485 communication interface. It ensures that the data can be stably and quickly transmitted within the system for subsequent analysis, processing, and control decisions.
4.Improving System Reliability: The T9432 module has anti-interference capabilities. With advanced isolation technology, it can effectively resist the influence of electrical noise and ground loops. Even in harsh industrial electromagnetic environments, it can ensure stable and uninterrupted operation. At the same time, the module also has a diagnostic function, which can monitor its own working status in real time, detect faults and give timely alarms, improving the reliability and stability of the entire AADvance Controller System.
5.Flexible Configuration and Expansion: In the AADvance Controller System, the T9432 module can be flexibly configured according to actual application requirements. Users can determine the input range, sampling frequency, etc. of each channel through programming or setting parameters. Moreover, multiple T9432 modules can be used in combination to achieve the collection of analog signals from more channels, making it convenient for the system to be expanded to meet the needs of industrial control projects of different scales and complexities.
Basic Information
Number of channels: 16 channels
Analog input range: -10V to +10V
Isolation level: 1000V AC/500V DC
Power supply voltage: 12V DC
Communication interface: RS-485
Operating temperature: -40°C to +85°C
Dimensions: 120mm×100mm×30mm
Weight: 0.4kg
Data Sheet
Application Areas
Process Control Field: In the production processes of industries such as chemical engineering, petroleum, and electricity, it is used to monitor analog parameters like temperature, pressure, flow rate, and liquid level, providing accurate data support for the control system and enabling precise control and optimization of the production process.
Manufacturing Industry: In production lines of industries such as automotive manufacturing and electronics manufacturing, it can collect analog signals such as the position and force of robotic arms, as well as the operation status parameters of production equipment, ensuring the stability of the production process and the consistency of product quality.
Energy Management System: In energy facilities such as solar power plants and wind farms, it is used to monitor analog data such as the voltage and current of photovoltaic panels, and the rotational speed and torque of wind turbines, enabling effective management and monitoring of the energy production and distribution processes.
Automation System: It is widely applied in various scenarios such as industrial automation production lines and smart factories. As a key device for analog signal collection, it provides basic data for the automation control system, enabling the automated operation and monitoring of equipment.
The ICS TRIPLEX T9432 Analog Input Module must be used in conjunction with the following products to function properly:
Controller Modules
T9110 Processor Module: As the core processing unit of the system, it receives the digital signals collected and converted by the T9432 module, performs logical operations, control decisions, and other operations to achieve precise control of industrial processes.
Central Unit: The AADvance system has a CPU - redundant structure (1oo2D), that is, the central control unit module of the system consists of two identical CU modules to form a 1oo2D central control unit, which processes the data input by the T9432 module and coordinates the overall operation of the system.
Power Supply Modules
T9901 AAdvance 20 Replacement In - fuse 50mA: It provides stable 50mA input current protection for the T9432 module and the entire AADvance system to ensure the safety of the system power supply.
T9902 AAdvance 20 Replacement Out - fuse 10A: As the No. 20 replacement output fuse of the AADvance system, with a rated current of 10A, it is used to protect the system output circuit and ensure the power safety of the T9432 module and other devices.
Terminal Boards
T9832 Analog Input Terminal Board: It is used to connect the T9432 analog input module with external analog signal sources such as sensors, providing access channels for analog signals to achieve signal transmission and distribution.
Communication - related Modules
T9030 OPC Portal Server: As an OPC portal server, it realizes data interaction and communication between the AADvance system and other devices or systems that support the OPC protocol. The data collected by the T9432 module can be shared and interacted with other systems through it.

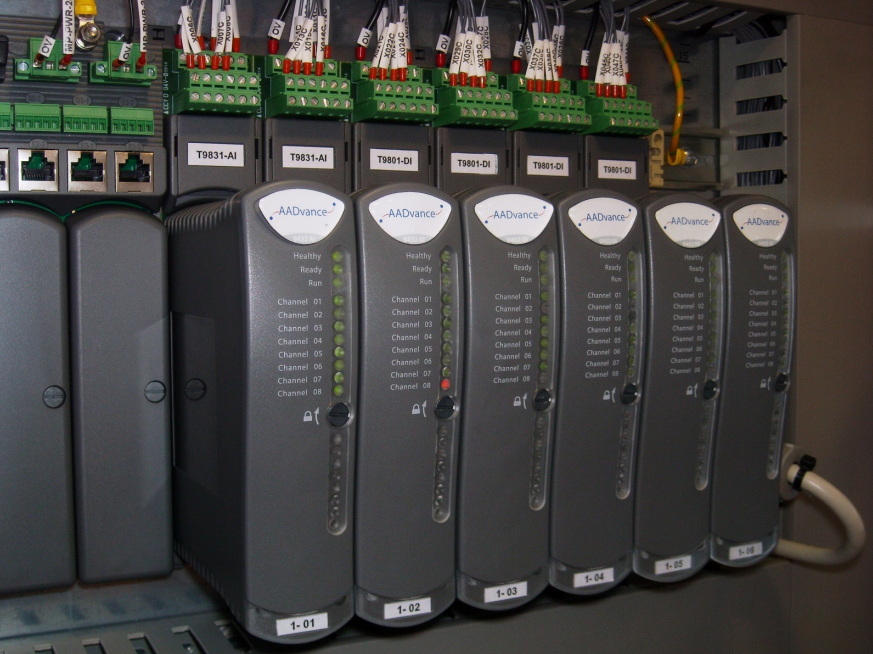

AADvance Controller System
