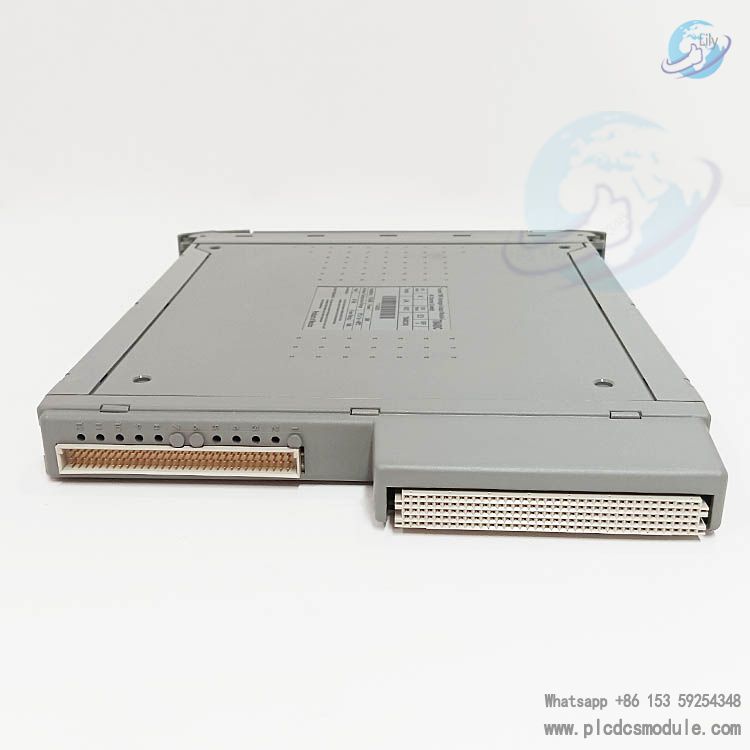

ICS TRIPLEX T8480 Trusted TMR Analogue Output Module.The ICS Triplex T8480 Trusted TMR Analog Output Module is an important component in the Trusted control systems by ICS Triplex, now part of Emerson. Trusted systems are designed for high-reliability and safety-critical applications, typically used in industries like oil and gas, chemical processing, power generation, and water treatment, where precise control and continuous operation are essential.
The T8480 module is part of the Trusted TMR (Triple Modular Redundancy) system, which offers high fault tolerance and is engineered to meet the most stringent safety requirements. This module plays a crucial role in ensuring the reliable output of analog signals to control actuators, valves, and other devices in complex industrial environments.
Key Features of the ICS Triplex T8480 Trusted TMR Analog Output Module:
Triple Modular Redundancy (TMR):
The T8480 module is part of the TMR architecture, which is a fail-safe system designed to ensure high availability. TMR involves using three separate, redundant channels for each signal, so that if one channel fails, the system can still function correctly, avoiding any disruption in critical control applications.
This redundancy helps protect the system from single points of failure, ensuring continuous operation and increasing system reliability in mission-critical applications.
Analog Output Signals:
The module is designed to provide analog output signals, which are essential for controlling analog devices such as valves, motors, or other actuators that require continuous control signals (e.g., 4-20 mA, 0-10 V).
Common applications include controlling the position of a valve, adjusting the speed of a motor, or providing feedback to other equipment in the system.
High Accuracy and Precision:
The T8480 module offers high accuracy and precision in controlling analog signals. It is designed to deliver reliable output values with minimal drift or noise, which is crucial in maintaining the proper functioning of the controlled devices.
This ensures that the process is stable, and system operators can make adjustments as needed based on accurate real-time data.
Compatibility with Trusted System:
The module is fully integrated into the ICS Triplex Trusted™ system, which includes both hardware and software components designed for safety-critical and high-reliability applications.
It communicates with other modules in the Trusted™ system and provides a seamless interface to the larger control system. Trusted™ systems are commonly used in safety instrumented systems (SIS), which are used to mitigate risks in hazardous environments.
HART Communication:
The T8480 module supports HART (Highway Addressable Remote Transducer) communication, allowing for additional communication with field devices. This enables remote configuration, calibration, and diagnostics of the connected devices, enhancing maintainability and reducing downtime.
Diagnostics and Health Monitoring:
Like other Trusted system modules, the T8480 comes with built-in diagnostic capabilities that monitor the health and performance of the module and connected devices.
If any issues are detected, the system can generate alerts to notify operators, helping with preventive maintenance and minimizing the risk of unplanned downtime.
The module also features self-diagnostics and fault-tolerant capabilities, ensuring high reliability even in the event of component failures.
Flexible Configurations:
The T8480 module supports flexible configuration options, allowing for various types of analog outputs, depending on the specific needs of the application.
The module can be configured to work with different types of field devices and systems, offering flexibility in terms of system integration.
Safety Certifications:
As part of a Trusted system, the T8480 module is designed to meet stringent safety standards and certifications, making it suitable for use in Safety Instrumented Systems (SIS) and Functional Safety applications. This is important in industries where process safety and regulatory compliance are paramount.
The module adheres to IEC 61508 and IEC 61511 standards for functional safety, ensuring that it can be used in safety-critical applications where failure could result in harm to people, equipment, or the environment.
Redundant Power Supplies:
The T8480 module is designed to work with redundant power supplies, providing added resilience and ensuring that power disruptions do not affect system operation. Redundant power supplies help increase the uptime of the system by automatically switching to a backup supply if the primary power source fails.
