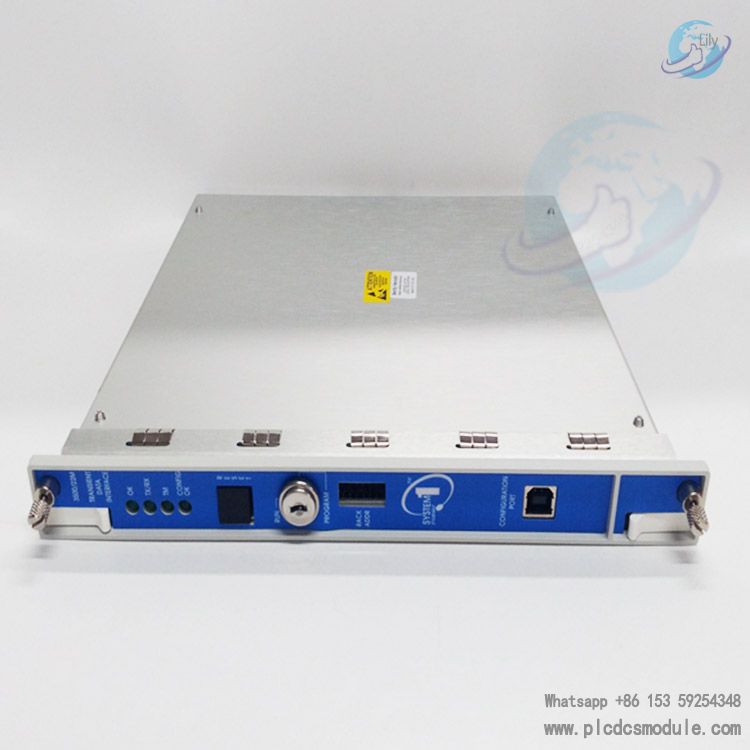

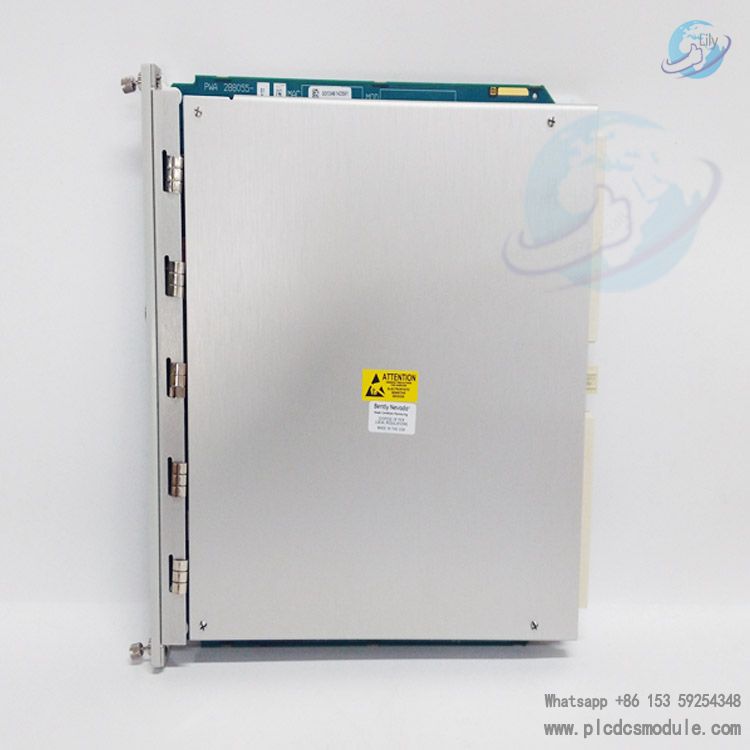

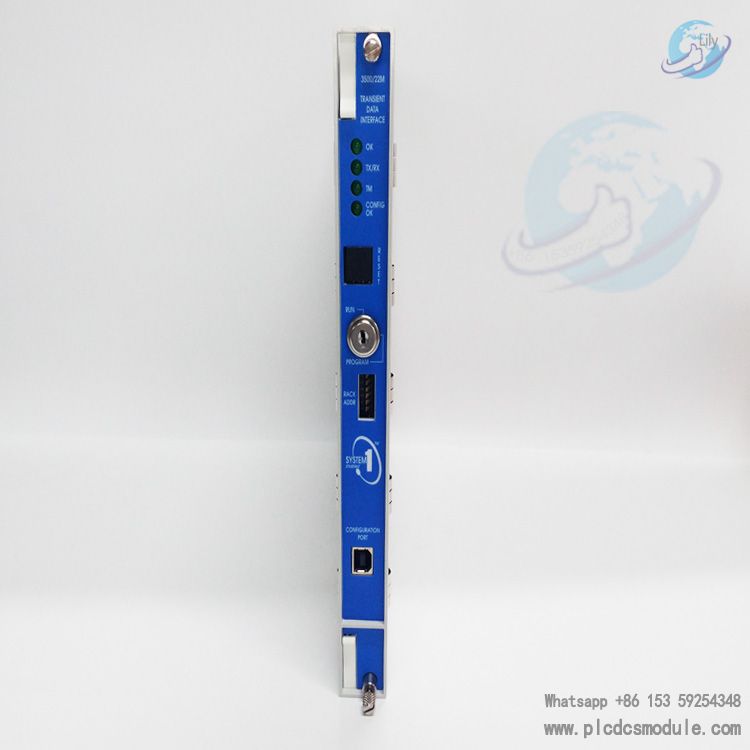

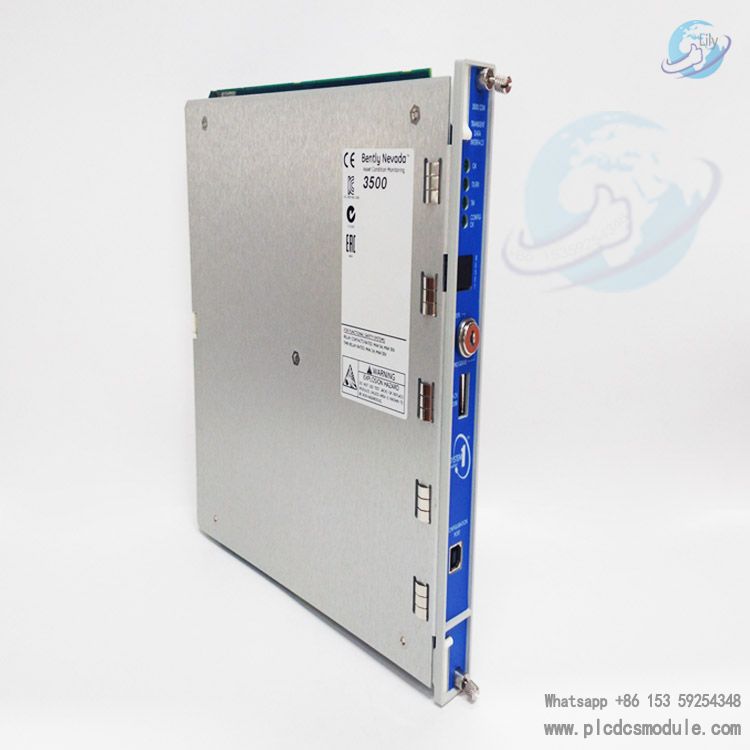

Bently Nevada 288055-01(3500/22M) Standard Transient Data Interface Module.The 3500/22M front card is divided into 138607-01 (old model) and 288055-01 (new model).
Technical Specifications:
Model: 288055-01
System: Bently Nevada 3500/22M Standard TDI
Purpose: Provides an interface for configuration, transient data collection, and communication within the 3500 rack system.
Application: Used in industrial environments for critical machinery monitoring, such as turbines, compressors, and pumps.
Power Consumption: 10.5 Watts 6
Input Voltage: 100-240VAC, 50/60Hz
Output Power: 54VDC at 2A
Dimensions: 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in)
To learn more about this product click on the file below or download the file:
Bently Nevada 288055-01(3500-22M) Standard Transient Data Interface Module.pdf
Applications
Machinery Types:
Gas and steam turbines
Compressors
Electric motors
Generators
Pumps
Industries:
Oil and gas
Power generation
Petrochemical
Manufacturing
Installation and Maintenance
Installation:
Slots into the 3500 rack in the designated TDI slot.
Supports hot-swappable installation, allowing for replacement without shutting down the system.
Maintenance:
Regular firmware updates ensure compatibility with diagnostic software like System1.
Routine inspection and calibration are recommended to maintain accuracy.
