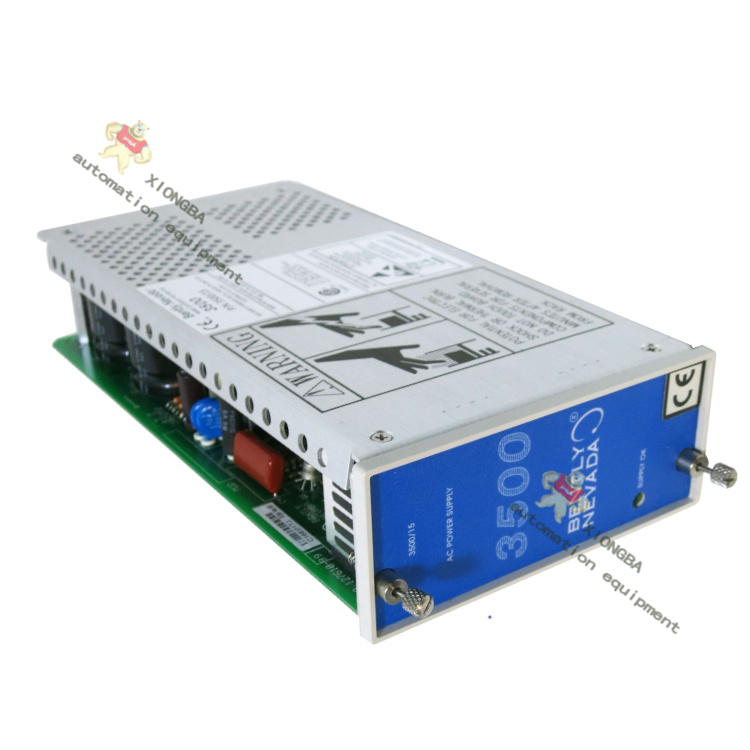

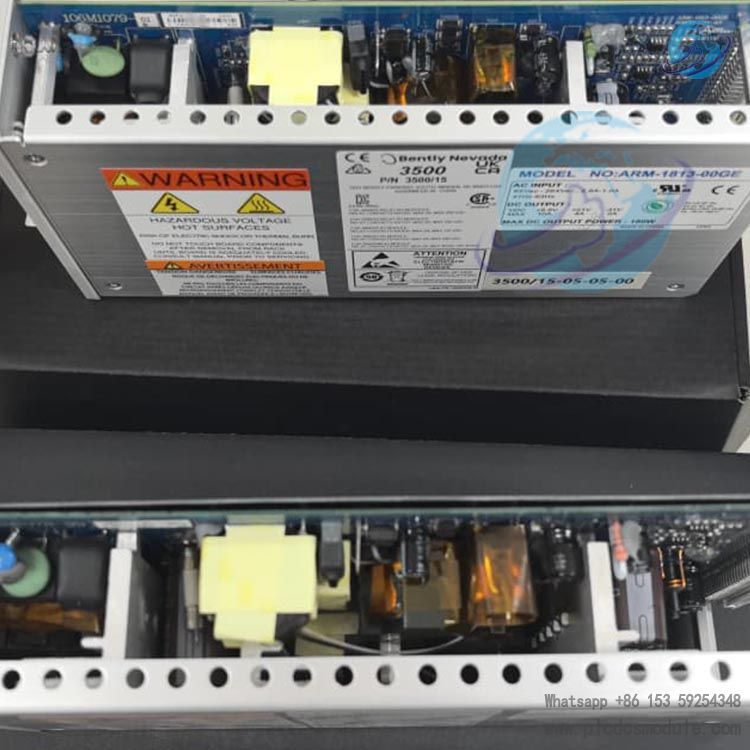

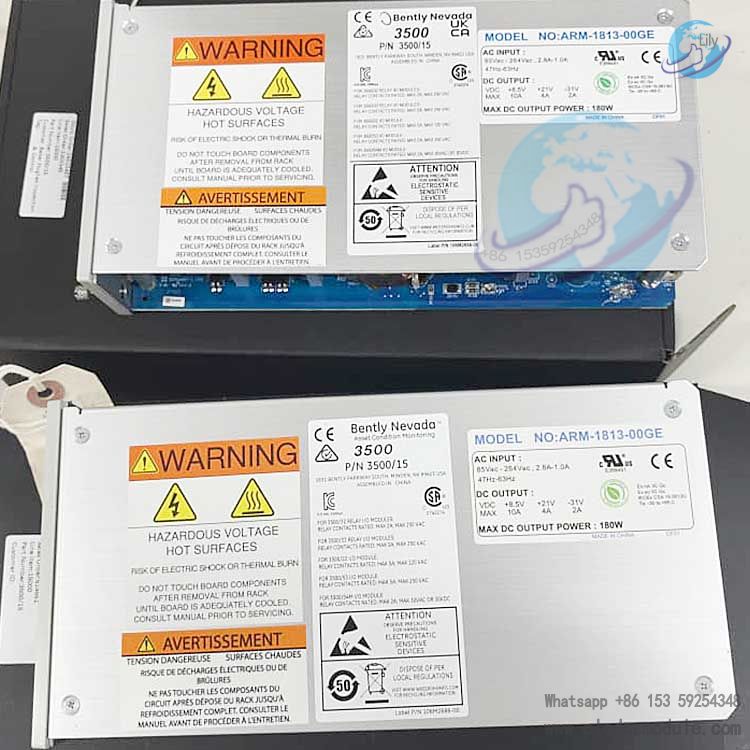

Bently Nevada 3500/15-05-05-00 Power Supply

Part number:3500/15-05-05-00

Manufacturer:Bently Nevada

Product Description: Power Supply

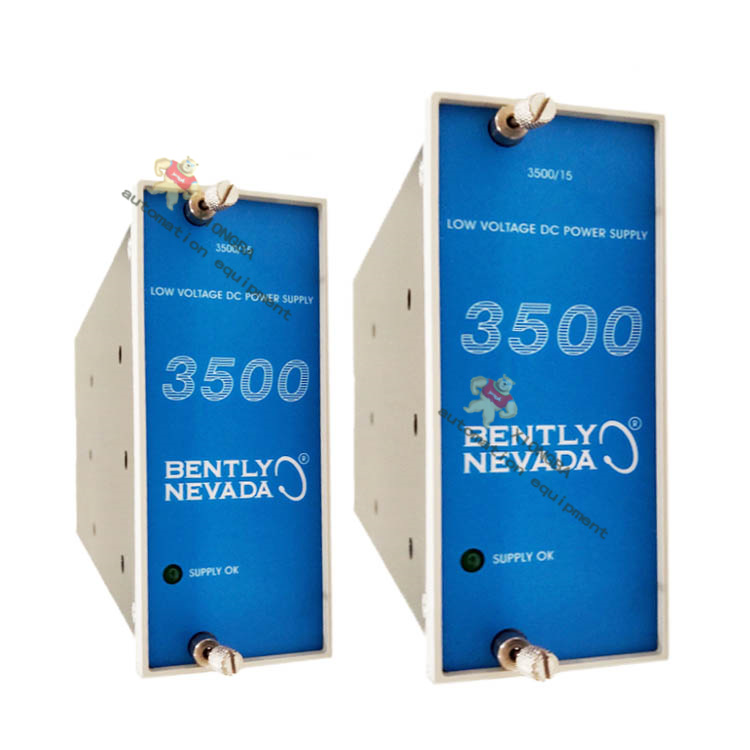

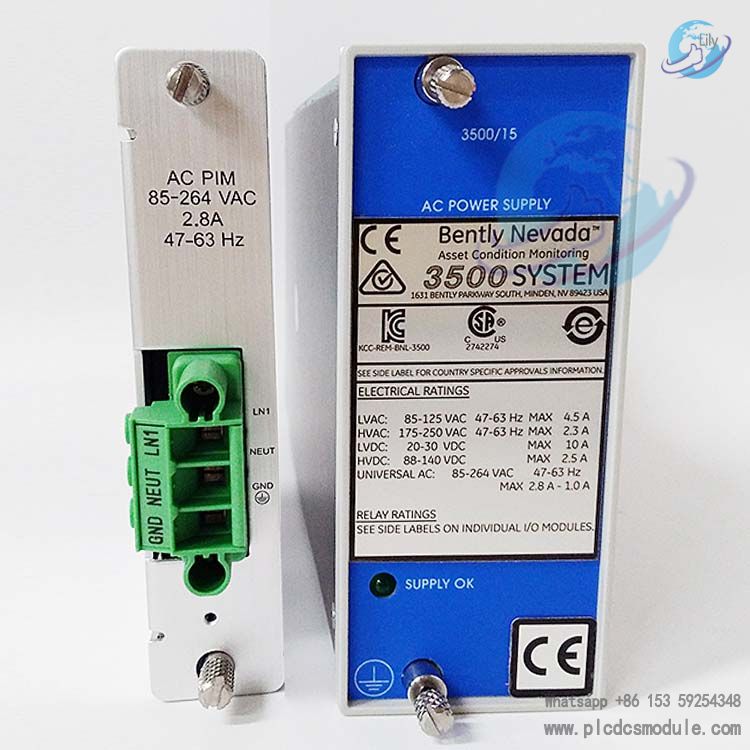

The 3500/15 AC and DC Power Supplies are half-height modules and must be installed in designated slots on the left side of the rack. The 3500 rack can contain one or two power supplies with any combinations of AC and DC. Either supply can power a full rack.

The 3500/15 AC and DC Power Supplies of the 3500/15 accept a wide range of high or low input voltages and can convert to voltages required by the 3500 modules. They are ideal for Machinery Protection Systems and allow for one power supply or two if needed for back up. With two power supplies installed, the lower slot holds the primary supply and the upper slot holds the redundant supply.

The 3500/15 Power Supply can supply AC or DC power to the 3500, including the Transient Data Interface (TDI), individual monitor modules and Input/Output (I/O) modules as well as all connected sensors in a Machinery Protection and Condition Monitoring System. Modules can be "hot-swapped” by removing or inserting either of the power supply modules without disrupting the rack.

The 3500/05 System Rack holds all 3500 monitor modules and rack power supplies, allowing modules to communicate with each other, with System 1 software and power supplies to distribute power to each module as needed. The 3500 system rack is an integral part of the Bently Nevada Turbine Supervisory Instrumentation (TSI) suite for steam turbines.  With two sizes (standard 19” and 14”), three flexible mounting formats (rack, bulkhead, and panel), and internal barrier options for hazardous area, you can customize the 3500/05 System Rack to suit your needs. The Rack also has Weatherproof housing available to protect the 3500 System against adverse environment conditions. The 3500 System is available as a SIL 2-rated system, meaning it will provide Intrinsic Safety.

The 3500/22M, also known as the Transient Data Interface Module (or TDI), is the heart of the 3500 rack system.  It allows for configuration of the 3500 rack parameters and serve as the gateway to the System 1 Machinery Condition Monitoring software platform.

The TDI is equipped with a USB port on the front for easy access for configuration, and a 10/100 Ethernet connection on the rear I/O module for communicating with System 1. A rack reset button on the front allows alarm reset with a physical key to lock out configuration changes.
