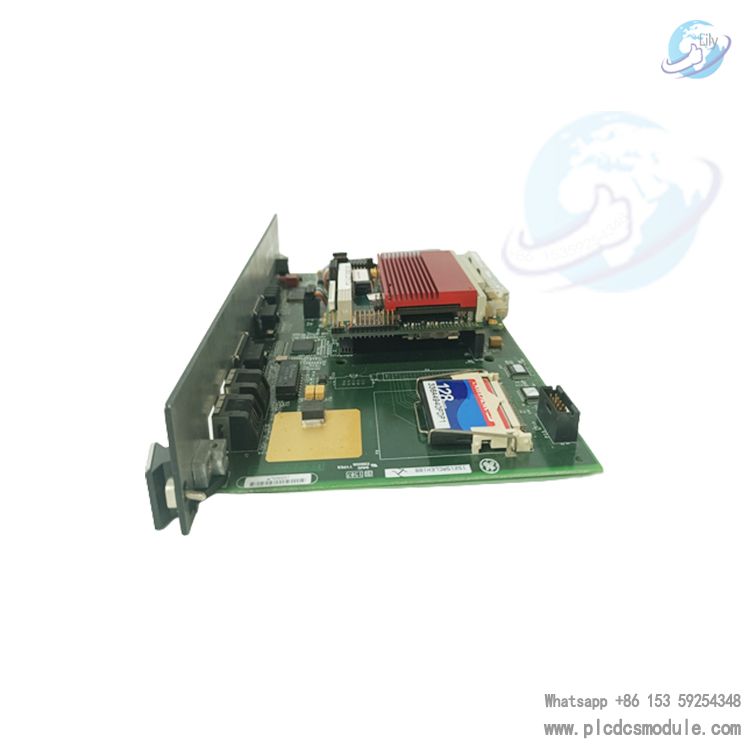

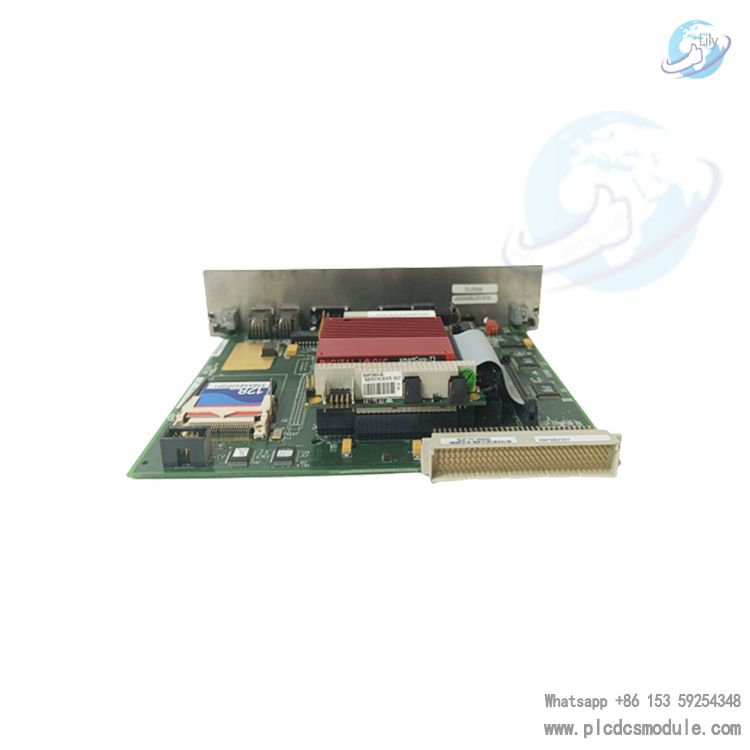

GE IS215ACLEH1B Application Control Layer Module.The IS215ACLEH1B is an Application Control Layer Module (ACLM) designed for use with General Electric's EX2100 series excitation control systems. It is a microprocessor-based controller used to perform a variety of control and communication tasks.
IS215ACLEH1B Specifications:
Part of the EX2100e series
Used as an application control layer module
Uses a microprocessor-based controller
Occupies two and a half slots in the EX2100 Excitation Board Rack or Innovative Series Drive
IS215ACLEH1B Technical Details:
Has 4 MB of flash memory, accessible via BIOS setup
Includes Ethernet connection (10BaseT/RJ45 jack on front panel)
Uses IRQ 5 initialized by BIOS function
Has PCI controller for managing inputs, outputs, configuration transfers, and memory functions
Has 128 KB of L2 cache
Hardware Features
LEDs for system status indication
CPU and PCI controller
PROM 1 can be integrated
IS215ACLEH1B features:
Weight: 1 lb. 4 oz.
Shipping size 18 x 12 x 12 inches 13
Compatibility and Integration
Configurable with toolbox and Innovative Series controller or EX2100 exciter
Compatible with keyboard interface when connected
Best Practices
Ensure proper installation in EX2100 excitation board racks or Innovation Series drives
Configure using authorized tools and software
Regularly monitor system performance and troubleshoot as needed
The IS215ACLEH1B is a key component of the GE EX2100 Excitation Control System, providing advanced processing power for communication and control tasks in industrial power generation environments. Its rugged design and flexibility make it suitable for a variety of applications in large-scale industrial environments.
