The GE IS220UCSAH1A is a dedicated embedded controller module designed for General Electric Mark VI systems. The IS220UCSAH1A is designed for managing gas or steam turbines and is an integral part of the GE Speedtronic family. Its applications extend beyond traditional turbine management and are compatible with wind turbine control systems using GE products. The IS220UCSAH1A is known for its advanced features and design considerations designed to provide reliable and efficient control of turbine operation.
The IS220UCSAH1A is a Processor/Controller created by General Electric for the Mark VI system. Designed to manage gas or steam turbines, the Mark VI platform was released by GE as part of the Speedtronic line. It features an HMI (human machine interface) with software designed for running heavy-duty turbines, such as the CIMPLICITY graphics interface.

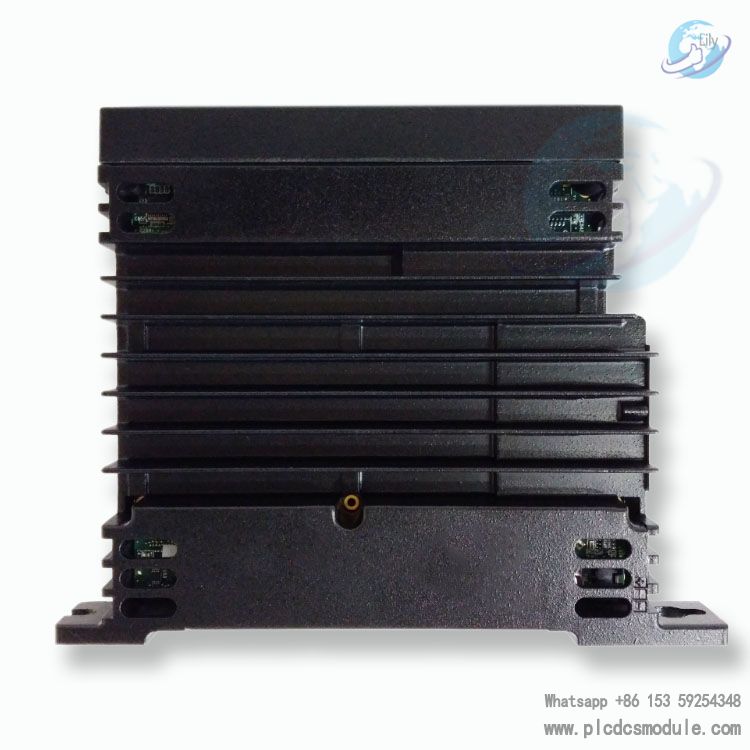

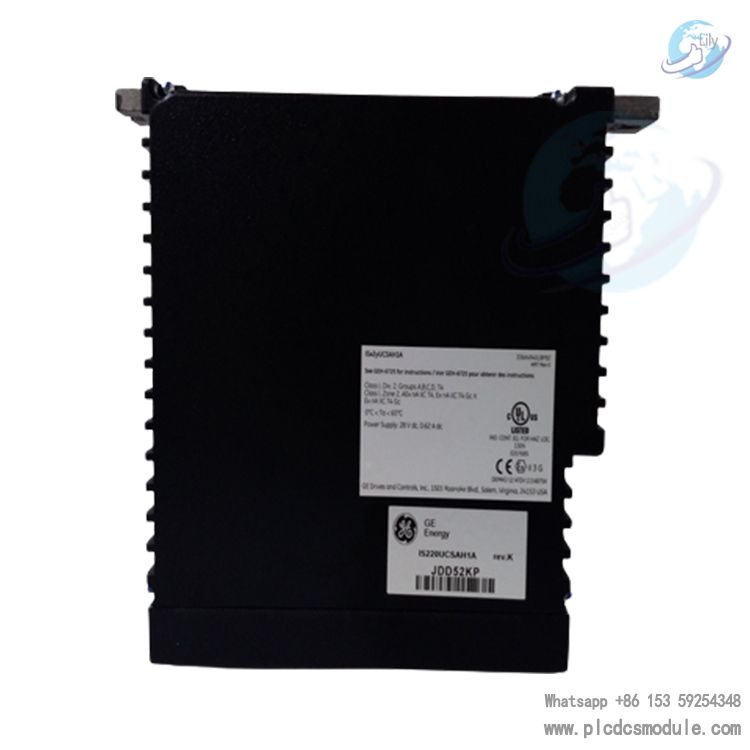

The IS220UCSAH1A is built as a single boxed component with a front faceplate to allow for connection of communications, two screw mounts on the rear edge, and grill openings on three sides to allow for air flow. The controller is designed for base-mounting within a cabinet. Up to three components can be mounted adjacent to each other for a compact arrangement that easily serves triple redundant systems.
The IS220UCSAH1A works on a QNX operating system. It has a Freescale 8349, 667 MHz processor. The board uses a power source rated at 18-36 V dc, 12 watts. The board can be used in temperatures from 0 to 65 degrees Celsius and does not require a fan for cooling, even at max temperature rating. The board can be used for NFPA Class 1, Div. 2 applications.

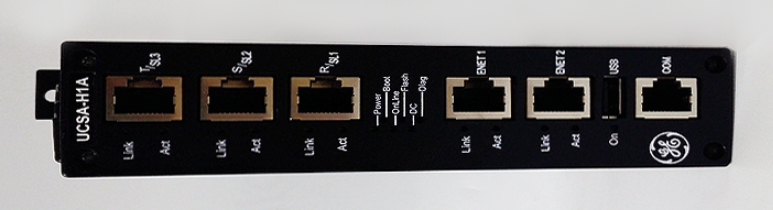

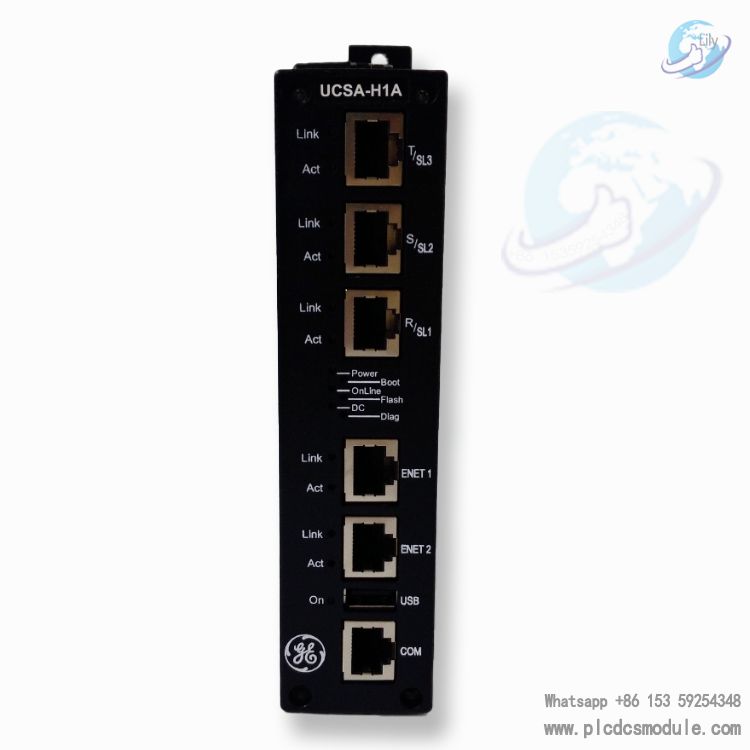

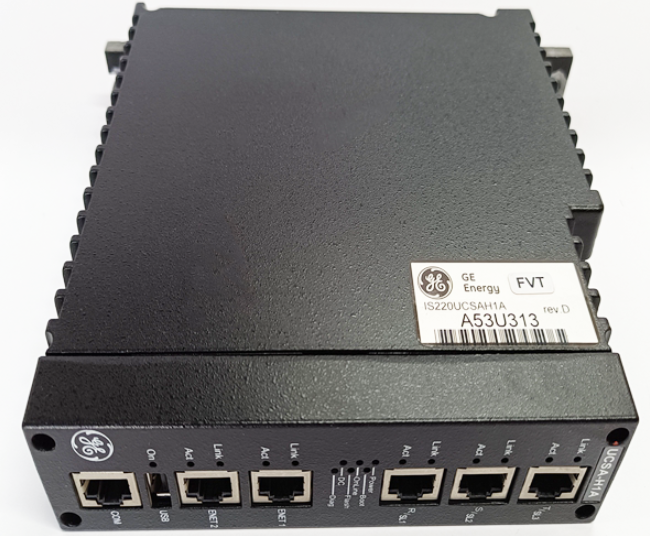

The front faceplate of the IS220UCSAH1A has six female jack connectors, one USB port, and multiple LED indicators. This includes LED indicators down the left side of the front panel labeled Link/Act, and a line of indicators placed in the middle of the faceplate that are labeled Power, Boot, Online, Flash, DC, and Diag. Jack connectors are used for Ethernet connections, which allow the board to communicate with other MKVI, MKVIe, or EX2100 excitation controls, along with maintenance stations and operator stations.
