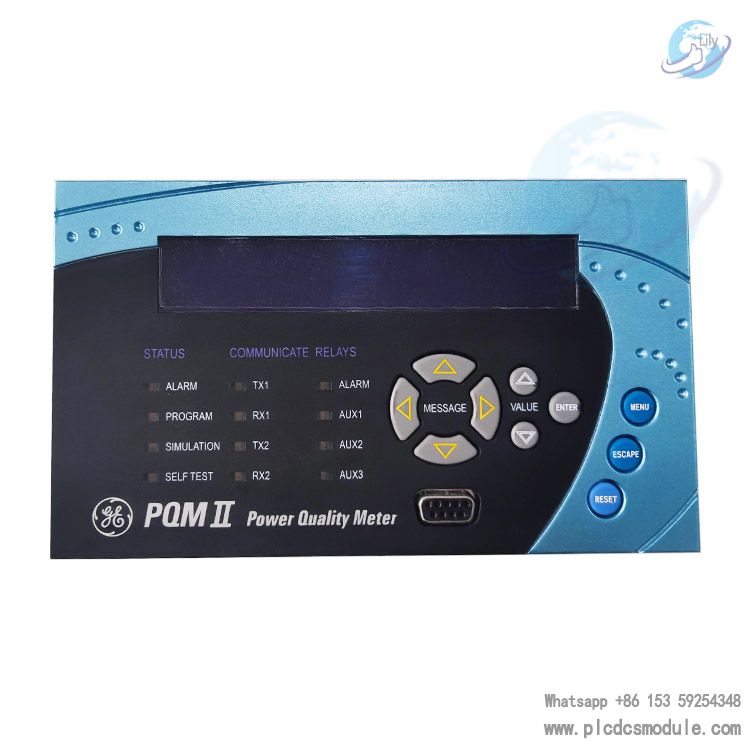

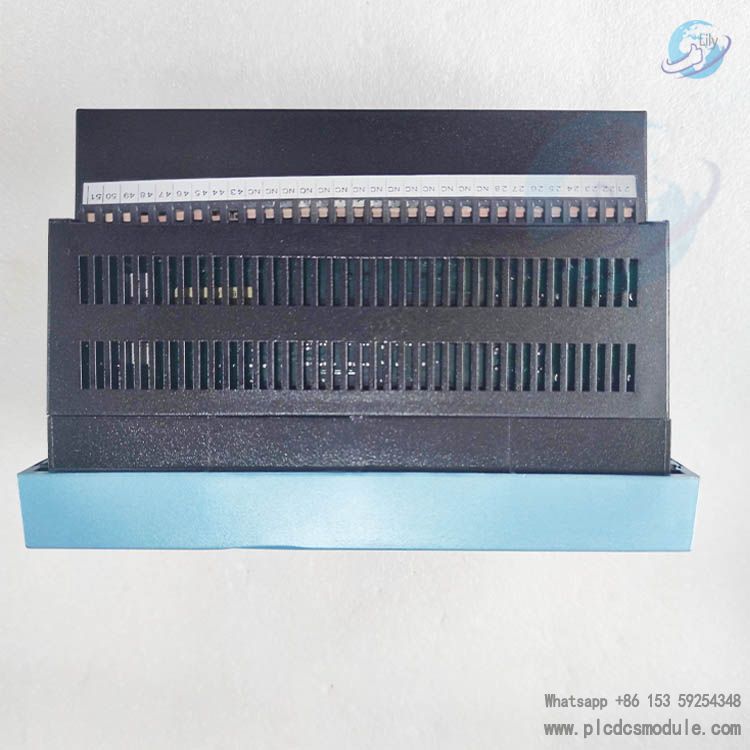

General Electric PQMII-T20-C-A PQMII Power Quality Monitor.The PQMII (Power Quality Monitor II) is a versatile power quality measurement device manufactured by General Electric (GE). It's designed for continuous monitoring of three-phase electrical systems and provides comprehensive power quality analysis.The PQMII series helps users optimise energy management and detect abnormalities in the power system by accurately measuring key power parameters to ensure equipment safety and operational efficiency. Its advanced monitoring functions can detect power, harmonics, voltage, frequency and other power quality parameters, providing detailed data support for power quality analysis and troubleshooting.(Related products:SR489-P1-HI-A20-E,SR745-W2-P1-G1-HI-A-L-R-E)
To learn more about this product click on the file below or download the file:
General Electric PQMII-T20-C-A PQMII Power Quality Monitor.pdf
Main Functions
Continuous monitoring of three-phase systems
Metering of current, voltage, real and reactive power, energy use, power costs, power factor and frequency
Programmable setpoints for control functions and 4 assignable output relays
Basic alarms for over/under current or voltage, unbalance and other parameters
Advanced control functions for load shedding, power factor correction, etc.
Four switching inputs for additional status monitoring or control
New in version 2.10
Voltage Disturbance Recorder (VDR) for monitoring voltage dips (dips) and voltage spikes (spikes).
Up to 500 voltage dip/rise events can be recorded
DNP 3.0 communication protocol as standard feature
Connectivity and communication
Front RS232 serial port (1,200 to 19,200 bps)
Two rear RS485 serial ports
Ethernet connection via MultiNetEnerVista software
Dial-in modem capability
