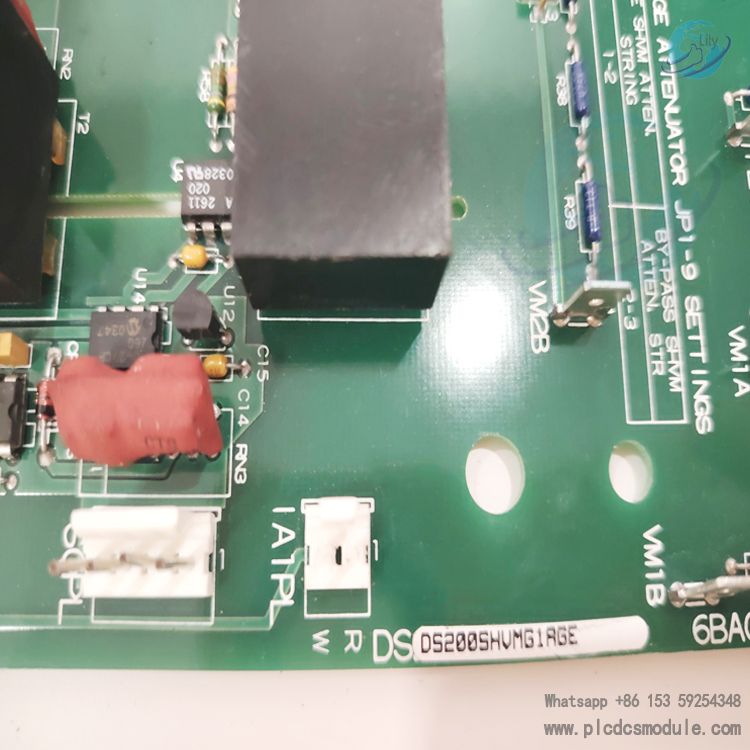

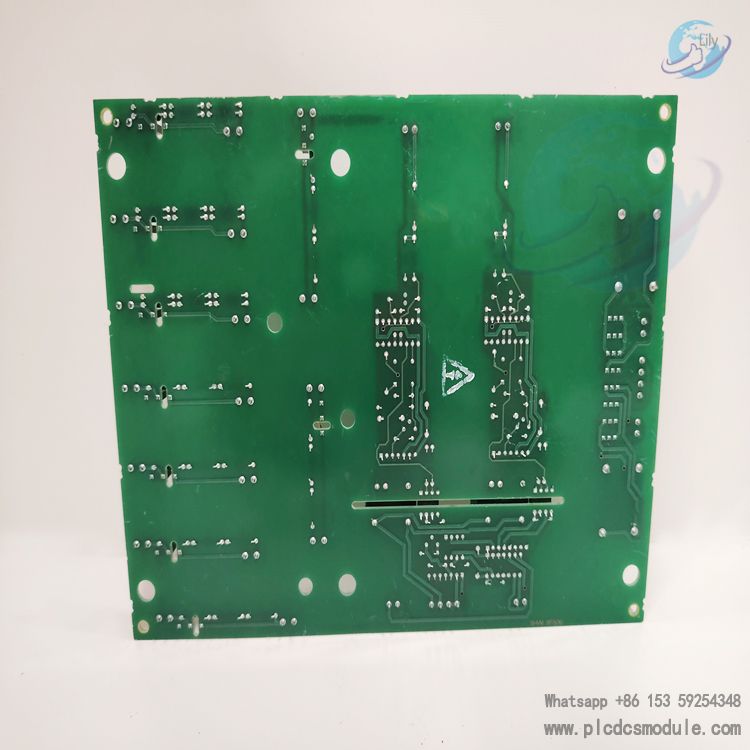

GE DS200SHVMG1AGE | High Voltage M-frame Interface Board.The DS200SHVMG1AGE High Voltage M-frame Interface Board is part of the General Electric Mark V series for a variety of GE-brand drives and exciters. Designed to interface with SCR bridges, power supply boards (DCFB or SDCI), and Power Connection Cards (PCCA) for M-frame drives, the DS200SHVMG1AGE board also converts shunt signals from -500 to 500 mV to differential frequency outputs rated from 0 to 500 kHz. 10:1 current transformer attenuation is also provided.
Technical Specifications for DS200SHVMG1AGE:
Part Number DS200SHVMG1AGE
Functional Abbreviation/Abbreviation: SHVM
Product Type: SCR High Voltage M-Frame Interface Board
Instruction Manual: GEI-100174
Number of Plug Connectors: Eight
