GE DS200DCFBG1BJB DC Feedback Power Supply Board.

Key Features of the DS200DCFBG1BJB

Used to provide control-grade power for drives and cabinet fans

Compatible with a variety of GE drive systems including EX2000, DC2000, CB2000, FC2000, GF2000, ME2000 and AC2000 IGBT drive applications

Large rectangular board with numerous components including 7 DIP switches and 12 configurable jumpers.

Includes integrated circuits for specific functions

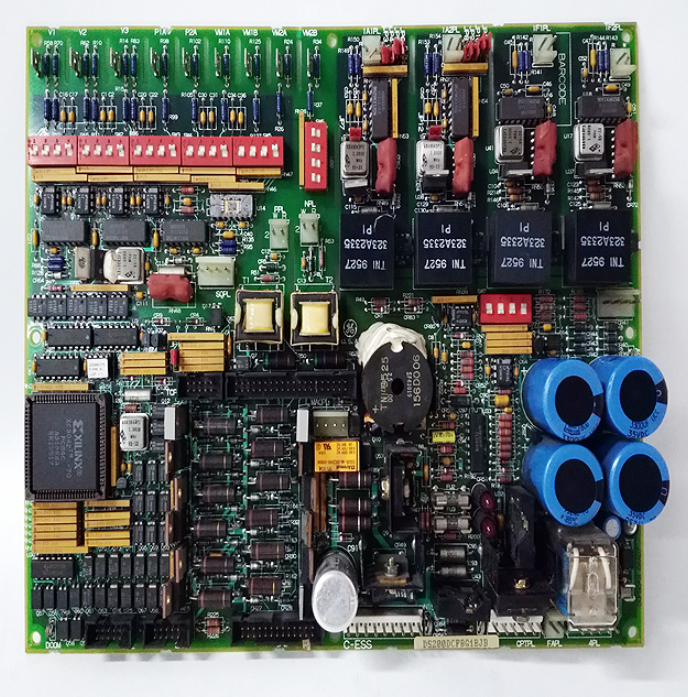

The DS200DCFBG1BJB is a large rectangular board with numerous components assembled on its surface. These components include seven 4-position DIP switch devices and twelve configurable jumpers. There are six DIP switches on the same side of the board, which can be used for scaling operations or changing many different inputs. For example, switch number 4, SW4, can be used to scale the voltage applied to the VCO output bridge circuit. The board also has a neon light to indicate when the fuse in the 115VAC line has blown, and two LEDs to indicate when the fuse in the +24VDC and -24VDC lines has blown. Several specific integrated circuits of interest are provided on the basic board of this DS200DCFBG1BJB product.

Application Scenarios:

For Mark V Series Turbine Control Systems

A control and management system specifically designed for steam, wind, and gas turbine automatic drive assemblies.

This is one of the last GE product lines to utilize their patented Speedtronic control system technology.

What is DS200DCFBG1B? It is the DC Feedback Power Board in the EX2000 series.

The DCFB provides control level power to drives as well as 115VAC power to cabinet fans.

What are the applications of the feedback power board driver? As a driver it can be used in a variety of scenarios such as EX2000, DC2000, CB2000, FC2000, GF2000, ME2000 and AC2000, IGBT driver applications. In the EX2000, a power board is used to achieve a different function from the driver.

The DS200DCFBG1B is a DC feedback power board within the EX2000 family. The feedback power board is capable of providing control level power to the drives and 115VAC power to the cabinet fans. Feedback power board drives can be used in a variety of applications such as EX2000, DC2000, CB2000, FC2000, GF2000, ME2000 and AC2000, IGBT drives. In the EX2000, the power board can be utilized to perform different functions than the driver.
