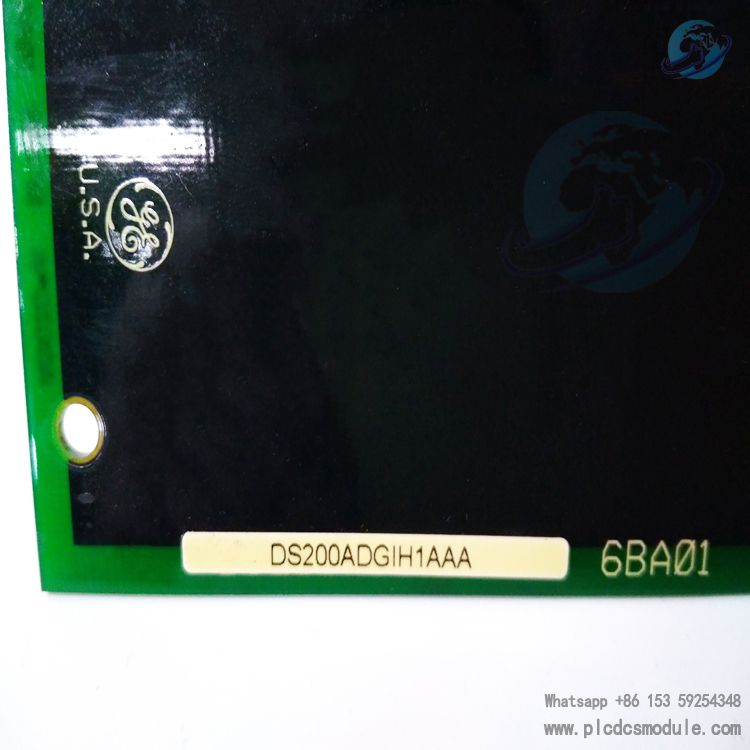

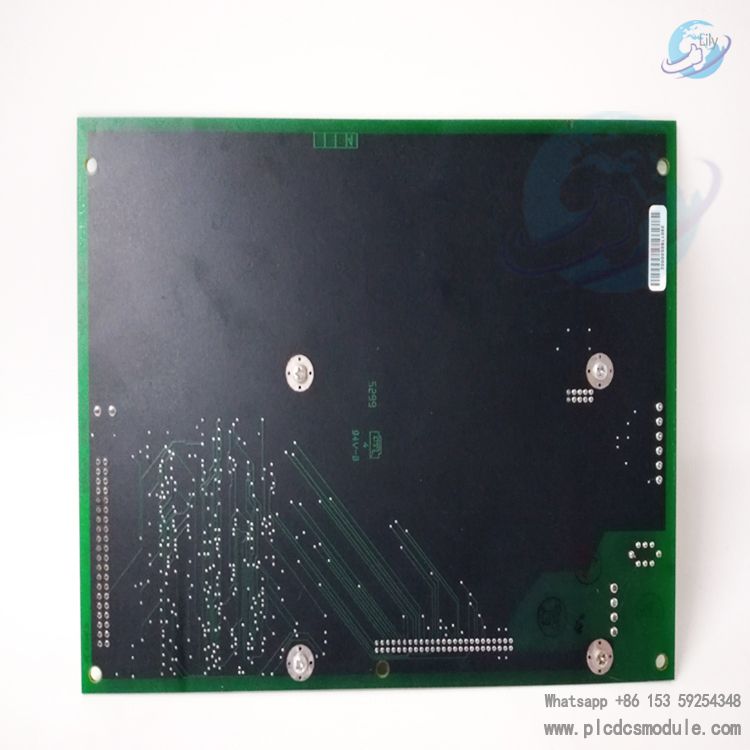

GE DS200ADGIH1AAA Auxiliary Interface Board.The DS200ADGIH1AAA was originally a printed circuit board for the Mark V family of turbine control systems, which has a range of specific applications in the management and control systems of GE compatible automatic drive components for steam and gas turbines. Suitable for newly developed turbine control applications. The GE auxiliary interface board DS200ADGIH1AAA has a 40-pin connector, 60 jumpers, and a 6-pin connector, and is equipped with multiple test points. The DS200ADGIH1AAA measures 8 inches wide and 6 inches long and is designed to be installed in the driver's board cabinet. It has four screws, which are aligned with a position on the board frame for mounting with screws.

Uses of the DS200ADGIH1AAA auxiliary interface board:

The DS200ADGIH1AAA provides connectivity and interface functions for the Mark V turbine control system family.

Allows integration of various external devices and systems with Mark V systems.

Specific functions:

Process the input sent to the LAN dashboard.

Process the input and output of the drive control board.

Provides an interface between the processor card and an externally connected encoder and tachometer.

The current reference signal and voltage level signal are converted to voltage reference signal.

The motor control processor that processes the RS-422 serial signal and sends it to the drive.
