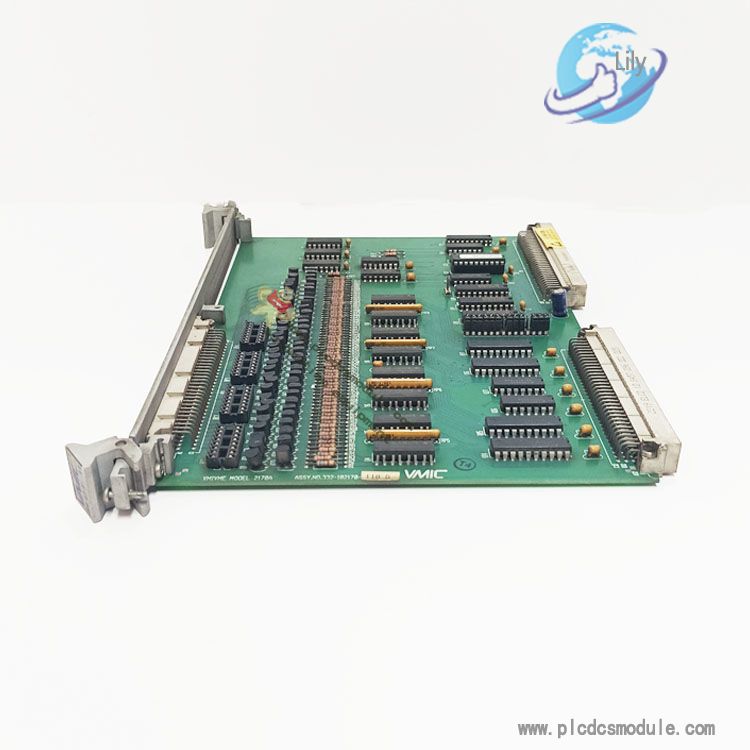

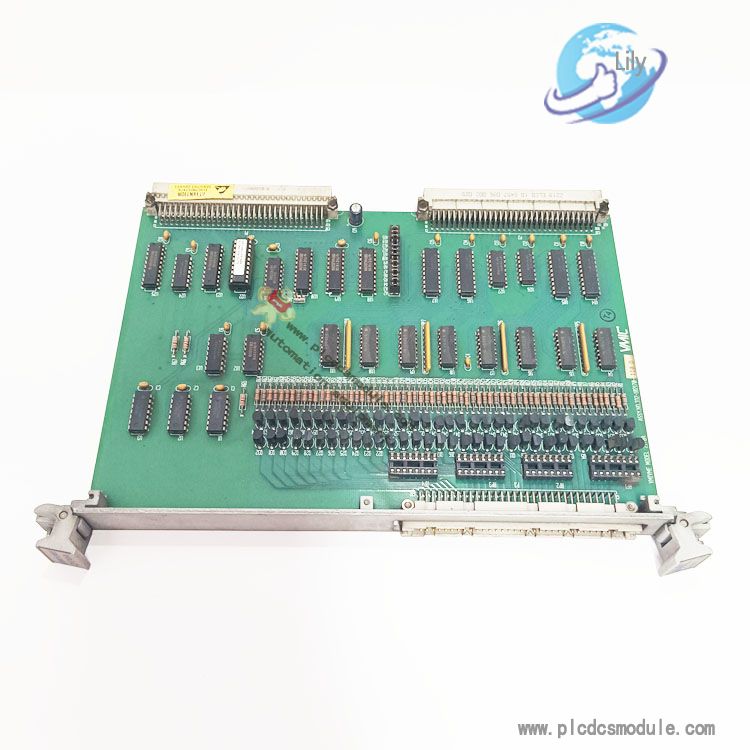

The GE Fanuc VMIC VMIVME-2170/VMIVME-2170A is a 32-bit optically coupled digital output board designed for use in automation systems. It is part of the General Electric Fanuc Automation VMIC series, which includes digital converters, input and output units, and other circuit boards.
Here are the key features and specifications of the VMIVME-2170A model:
Optical Coupling: The board is equipped with 32 optically isolated outputs, providing high levels of electrical isolation between the outputs and the VMEbus module. This feature enhances system safety and reliability by protecting against potential short circuits or ground loops.
Output Current Range: Each of the 32 outputs can deliver current ranging from 2.5 mA to up to 300 mA, depending on the load requirements. This flexibility allows the board to interface with a wide range of loads, from low-power indicators to high-power actuators.
Pull-Up Resistors: The outputs are field-configurable with pull-up resistors, allowing users to customize the output characteristics according to their specific needs. The pull-up voltage must be supplied externally.
Data Transfer Capabilities: The VMIVME-2170A supports both 8-bit and 16-bit data transfers, making it versatile for different data handling requirements. It can handle both supervisory data and nonprivileged data, enhancing its utility in various applications.
Form Factor and Functionality: The board uses a double Eurocard form factor PC board, which incorporates address decoding and data transfer control logic. This design enables efficient integration into VMEbus-based systems.
High Noise Immunity: Due to its optically isolated design, the VMIVME-2170A offers high noise immunity, ensuring reliable operation even in noisy electrical environments.
To learn more about this product click on the file below or download the file:
GE Fanuc VMIC VMIVME-2170 VMIVME-2170A 32-Bit Optically Coupled Digital Output Board.pdf
GE Fanuc VMIC VMIVME-2170/VMIVME-2170A 32-Bit Optically Coupled Digital Output Board
