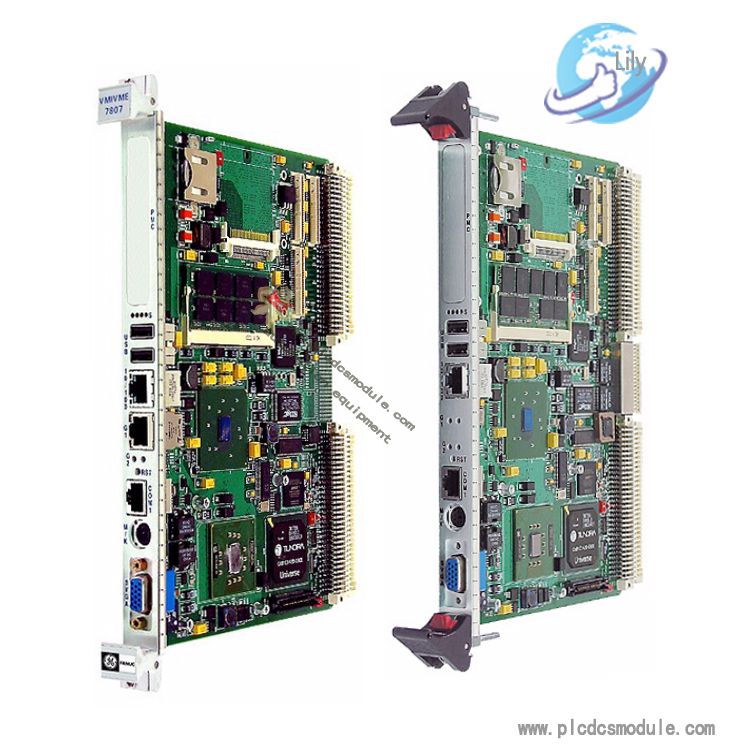

The GE VMIVME-7807 VME Single Board Computer (SBC) is a powerful embedded computing platform designed for industrial automation and control applications. It is based on the Intel® Pentium® M processor family, offering a choice between 1.1 GHz, 1.6 GHz, or 1.8 GHz processors. This board supports up to 1.5 Gbyte DDR SDRAM and includes a 1 Gbyte bootable CompactFlash on a secondary IDE. It features an internal SVGA and DVI controller, Serial ATA support, and a 400 MHz system bus via the Intel® 855GME chipset. For network connectivity, it provides both a 10/100 Mbyte LAN using the Intel 82551ER Ethernet controller and a dual Gigabit Ethernet (Intel 82546EB) with optional Vita 31.1 support.(VMIVME-5565-11000、VMIVME-7614-132)
The following are the main features and specifications of this single board computer:
Processor and Cache
Pentium M Processor: the VMIVME-7807 is usually equipped with a Pentium M processor at 1.1, 1.4 or 1.8 GHz. This is one of Intel's mobile processors known for its low power consumption and high performance.
Cache: Up to 2 MB of L2 cache helps to boost processor performance and reduce latency when accessing main memory.
Memory and Storage
DDR SDRAM: The VME-7807 series of single board computers offer DDR Synchronous DRAM (SDRAM) as the on-board system memory. These single board computers accept one 7807-pin DDR SDRAM SODIMM and optional soldered 200MB on-board memory up to 512.1GB.Flash Memory: In addition to system memory, the VMIVME-7807 offers up to 5GB of bootable compact flash (CompactFlash) for storing the operating system, applications, and critical data.
Network Interfaces
Dual Gigabit Ethernet: Equipped with dual Gigabit Ethernet interfaces, the VMIVME-7807 supports high-speed and reliable network connectivity forapplication scenarios such as data transmission, remote monitoring and control.
Expandability and Interoperability
VMEbus: As a VMEbus single board computer, the VMIVME-7807 is capable of communicating and interoperating with other devices based on the VMEbus, providing powerful expandability and flexibility for industrial control systems.
Other Features

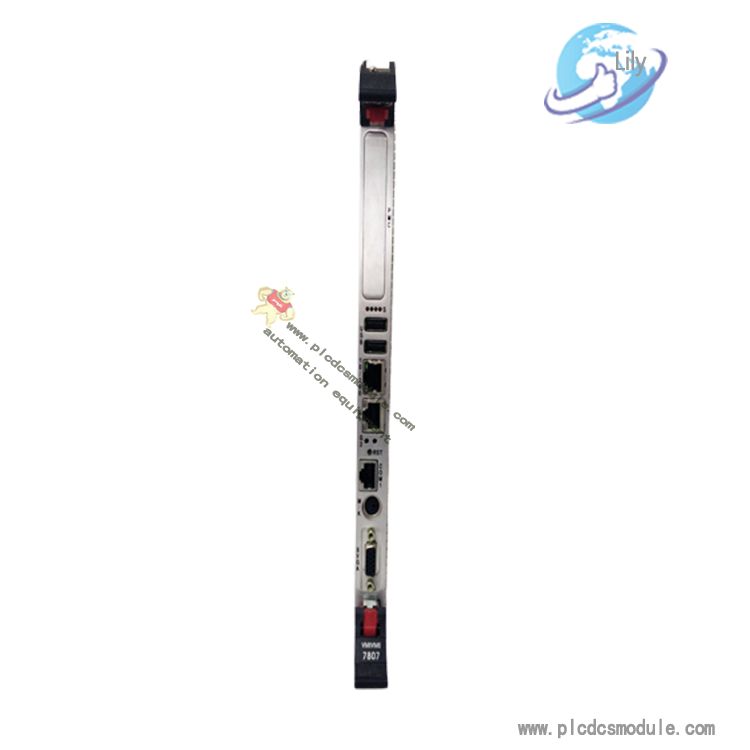

Front Panel Inter faces: Some configurations may include front panel interfaces, such as the 1101.10 front panel, and an optional G1 Gigabit front
panel Ethernet port.
RoHS Compliance: Some models (e.g., VMIC VME-7807RC-420001) are RoHS compliant, which means they restrict the use of hazardous substances.
