ABB Tension Indenter,ABB Pillow Block Tensiometer,PillowBlock Tensiometer,PFTL101B 2.0kN,5.0kN,10.0kN,20.kN.
ABB's PillowBlock Tensiometers, PillowBlock Tension Transducers are designed to provide long term reliable tension measurement for pickling, annealing
and galvanising lines. Over the past 50 years, ABB tension sensors have demonstrated exceptional performance in many areas. Especially in heavy rolls,
at high speeds and under demanding conditions, ABB tension gauges achieve output sensor signals by means of changes in the magnetic field, thus
relieving the user of constraints caused by various forms of physical movement. The result is a reliable, robust, low impedance output tensiometer that
maintains absolute accuracy and reliability even under conditions such as vibration, overload, extreme temperatures and even harsh conditions.
ABB Pillow Block Tensiometers are available in two main designs, one designed for transmission of vertical force measurements and a special design for
strip tension coils where only horizontal tension is applied.
The stainless steel construction of ABB pillow block tensiometers can easily cope with acid-resistant environments and mill application uses. And the
friendly operation interface and the ability to process digital signals make it widely used in various industries.

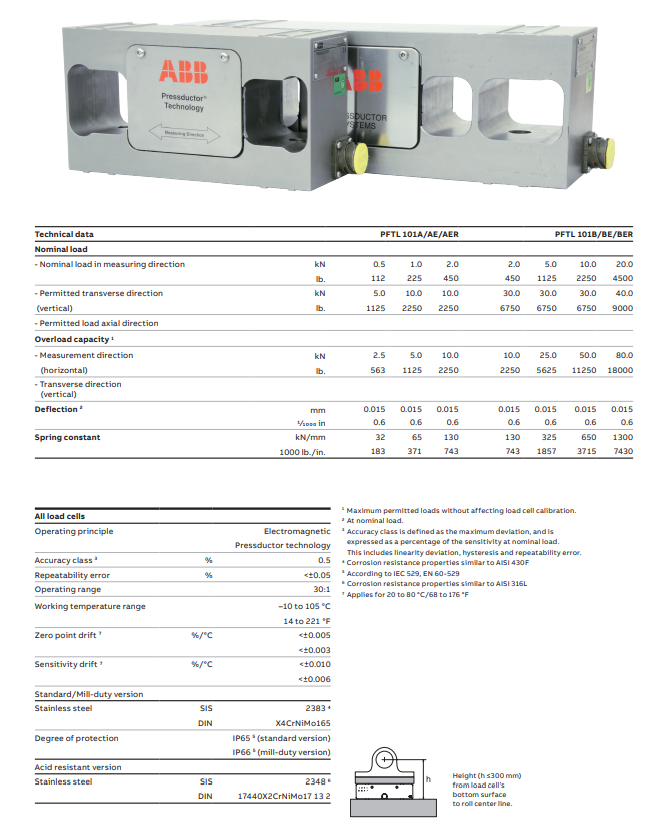

PFTL 101A、PFTL 101B series indenter technical parameters:
ABB Tension Sensors, ABB Tension Indenter, PFTL 101A Series Model List:
PFTL 101B-2.0 3BSE004185R1
PFTL 101BE-2.0 3BSE004214R1
PFTL 101BER-2.0 3BSE023158R1
PFTL 101B-5.0 3BSE004191R1
PFTL 101BE-5.0 3BSE004215R1
PFTL 101BER-5.0 3BSE023159R1
PFTL 101B-10.0 3BSE004197R1
PFTL 101BE-10.0 3BSE004216R1
PFTL 101BER-10.0 3BSE023160R1
PFTL 101B-20.0 3BSE004203R1
PFTL 101BE-20.0 3BSE004217R1
PFTL 101BER-20.0 3BSE023161R1

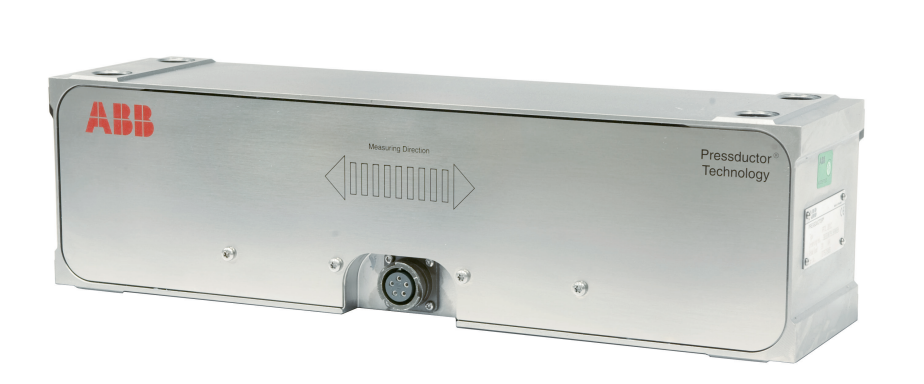

PFTL201 Series High Tension Heads
Pillow Block Tension Gauges, Pillow Block Tension Sensors from ABB are designed to provide long term reliable tension measurement for pickling, annealing and galvanising lines.
Over the past 50 years, ABB's tension sensors have demonstrated exceptional performance in many areas. Especially in heavy rolls, at high speeds and under demanding conditions,
ABB tension gauges achieve output sensor signals by means of changes in the magnetic field, thus relieving the user of constraints caused by various forms of physical movement.
The result is a reliable, robust, low impedance output tensiometer that maintains absolute accuracy and reliability even under conditions such as vibration, overload, extreme
temperatures and even harsh conditions.
ABB Pillow Block Tensiometers are available in two main designs, one designed for transmission of vertical force measurements and a special design for strip tension coils where
only horizontal tension is applied.
The stainless steel construction of ABB pillow block tensiometers can easily cope with acid-resistant environments and mill application uses. And the friendly operation interface
and the ability to process digital signals make it widely used in various industries.

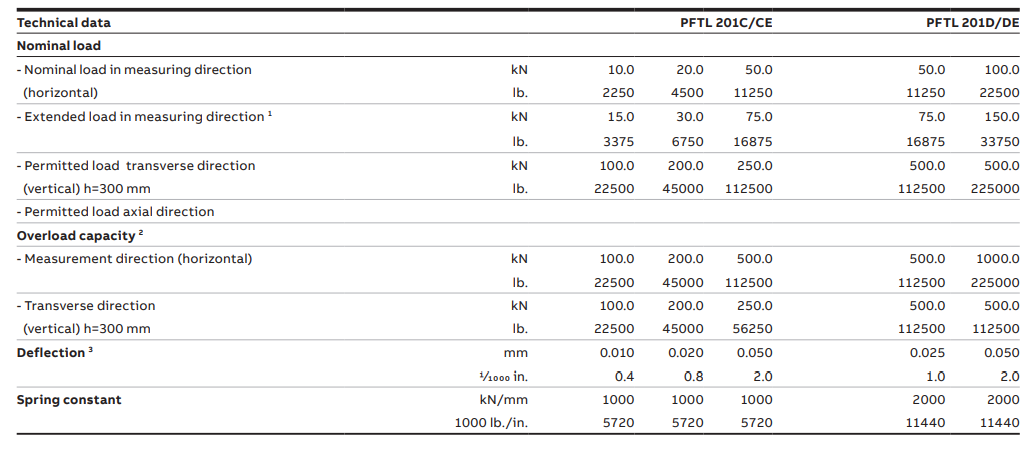

PFTL201 large tension indenter series technical parameters:

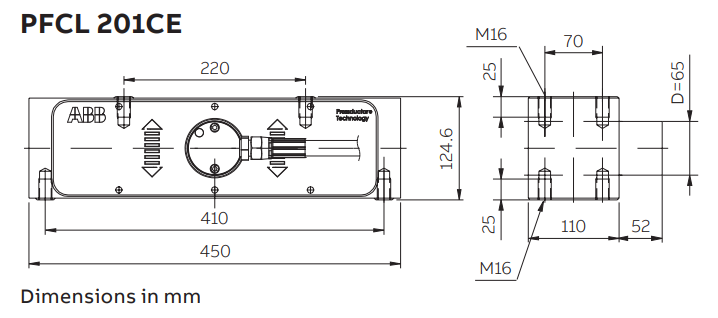

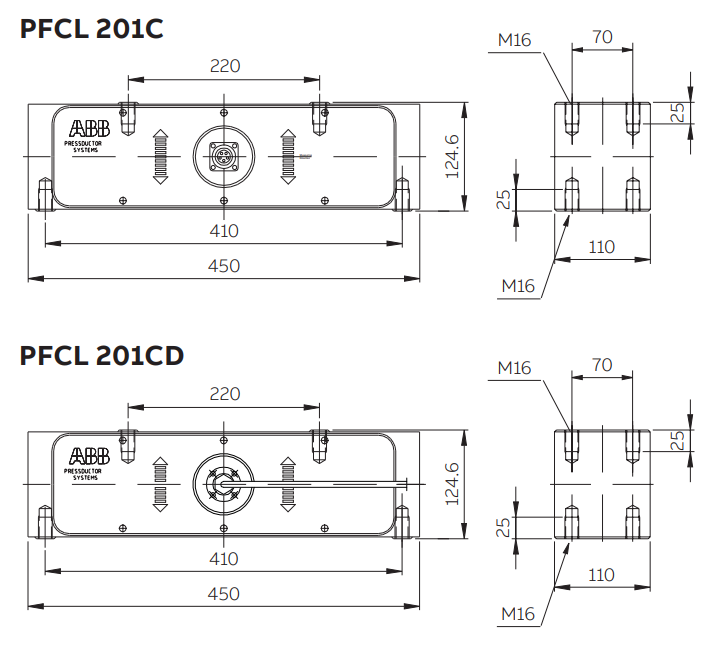

PFTL201 Large Tension Indenter Series External Dimensions:
Model list of PFTL201 high tension indenter series:
PFTL 201C-10.0 3BSE007913R10
PFTL 201CE-10.0 3BSE007913R11
PFTL 201C-20.0 3BSE007913R20
PFTL 201CE-20.0 3BSE007913R21
PFTL 201C-50.0 3BSE007913R50
PFTL 201CE-50.0 3BSE007913R51
PFTL 201D-50.0 3BSE008922R50
PFTL 201DE-50.0 3BSE008922R51
PFTL 201D-100.0 3BSE008922R100
PFTL 201DE-100.0 3BSE008922R101
